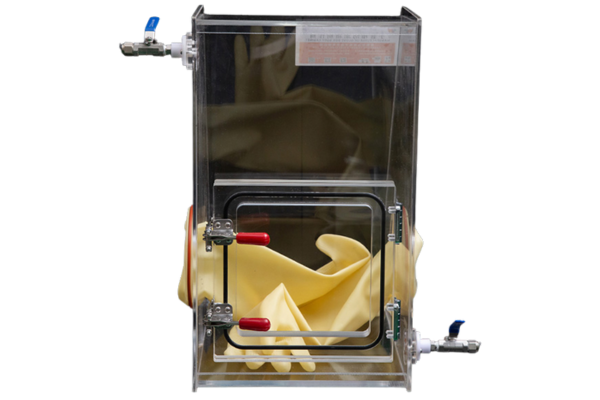

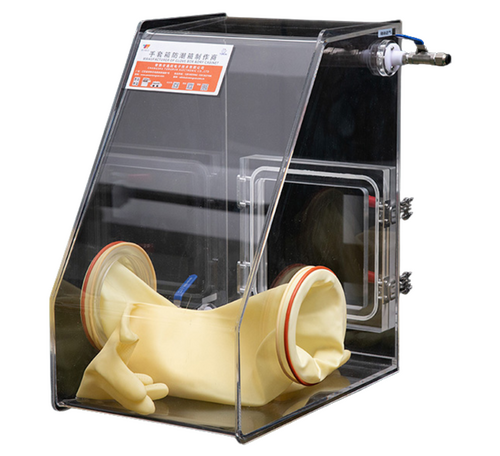

Cheap acrylic glove box
This is a mini glove box, usually used for simple sealing tests, but also by displacing inert gases to create a low water and low oxygen atmosphere. It has a cheap price for a conventional glove box.
Key Features
- Vacuum pump 2L/4L
- Movable bracket - the laboratory with no desktop can choose
- Fully automatic pressure controller
- Domestic & imported moisture and oxygen sensor
- Fully automatic moisture and oxygen controller
- Foot pressure controller
- UV sterilization lamp
- Dust removal and cleaning system
- Purification system H2O&O2 ≤ 0.1PPM
Manufacturer
Torun
Torun are a leading glove box manufacturer committed to the research and production of dry cabinets, vacuum boxes, glove boxes, and automated anhydrous and anaerobic intelligent equipment.
Principle
The working principle of VGB-1A acrylic glove box is to directly replace the inert gas in the main chamber to reduce the moisture and oxygen parameter inside the box. The concentration of moisture and oxygen parameter after replacement will be determined by the replacement time and the purity of the inert gas.

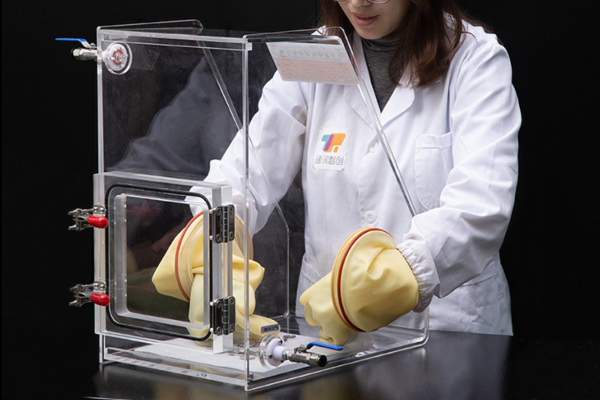

Application area
Mainly creating non-moisture and non-oxygen environments for organic metal chemistry, organic synthesis, 3D printing of new material powders, special anaerobic and hydrophobic chemical treatment, biomedical, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc.

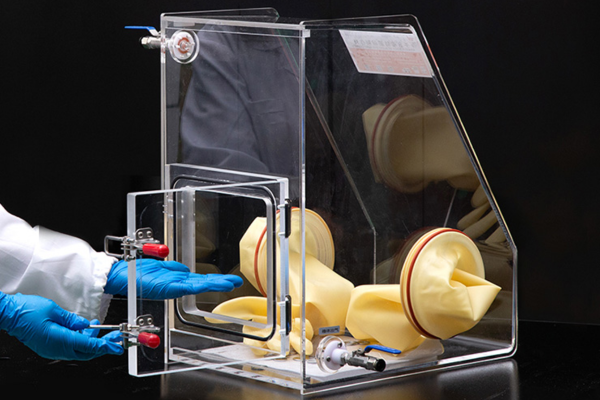

Product features
1. Using imported high-quality acrylic material with high transparency, the experimental process is clear without dead corners, and does not turn yellow over time.
2. The main chamber of the A-type acrylic glove box cannot be evacuated and there is no antecompartment. Items must be transferred through the side door.
3. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head and has a ball valve.
Specifications
| Model | Main chamber size (mm) | Thickness (mm) | Side door (mm) | Vacuum degree (pa) | Antechamber size (mm) |
| AGB-1A | 300W*400D*500H | 6 | 300*300 | ±1000 | none |
| AGB-2A | 700W*450D*550H | 6 | 300*300 | ±1000 | none |
| AGB-3A | 800W*550D*600H | 6 | 300*300 | ±1000 | none |
| AGB-4A | 900W*500D*500H | 6 | 300*300 | ±1000 | none |
| AGB-5A | 900W*600D*700H | 10 | 300*300 | ±1000 | none |
| AGB-6A | 1000W*750D*700H | 10 | 400*400 | ±1000 | none |
| AGB-8A | 1200W*800D*700H | 10 | 400*400 | ±1000 | none |
