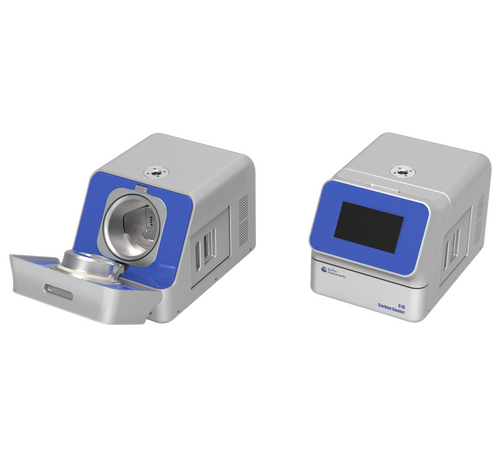

C10 High Vacuum Automatic Carbon Coater
The C10 is a high-vacuum carbon coater based on the resistive evaporation principle and utilises a built-in turbo-molecular pump in combination with an oil-free diaphragm pump.
Key Features
- Automatic carbon thread feeding: easier operation
- Off-axis tilted carbon source: no debris on sample surface
- Oil-free high vacuum pump set: more stable coating
Manufacturer
SuPro Instruments
Supro Instruments is committed to providing lean-level preparation, measurement, and control instruments for electron microscopy sample preparation and micro-nano thin film fields, assisting customers in improving research and development and production efficiency, and providing customers with a better user experience.
Product Information
The C10 is a high-vacuum carbon coater based on the resistive evaporation principle. It utilizes a built-in turbo-molecular pump in combination with an oil-free diaphragm pump to establish a clean high-vacuum environment (<5×10⁻² Pa). By integrating a tilted and biased carbon source with an automatic rotating sample stage, it deposits a uniform and dense carbon film on the sample surface. This effectively suppresses charging effects while avoiding the introduction of interfering elements, ensuring the accuracy of compositional analysis. It is particularly suitable for preparing carbon coatings for SEM (e.g., for EDS, EBSD, and EPMA analysis), FIB processing, and TEM sample preparation.
Product Specification
| Technical Specifications | |
| Application Scenarios | Carbon coating preparation for EDS, EBSD, EPMA analysis, FIB processing, and TEM sample preparation. |
| Vacuum Pump Set | Turbo Molecular Pump + Oil-Free Diaphragm Pump |
| Pumping Speed | Turbo Molecular Pump: ≥9 L/s; Diaphragm Pump: ≥0.7 m3/h |
| Ultimate Vacuum | <5×10-2 Pa |
| Working Pressure | ≤0.5 Pa |
| Pumping Down Time | <5 min |
| Pulse Count | 1-50 |
| Vacuum Gauge | Combination Vacuum Gauge【1×10-3 Pa to Standard Atmospheric Pressure】 |
| Chamber Dimension | ~110 mm W×190 mm D×110 mm H |
| Rotary Sample Stage | Ø80 mm，Rotation Speed: 60 RPM |
| Carbon Source | Ø0.8 mm Carbon Thread, Automatic Carbon Thread Feeding |
| Evaporation Power |
Pulsed Evaporation Coating with Constant-Current DC Power Output: Max.400 W, Max.20 A, Max.20 V |
| Exhaust Port | Ø8 mm Quick-Connect, with Silencer (Standard) |
| Operating Mode | Touchscreen control, the control system provides interlock protection function |
| Dimension | 300 mm W×460 mm D×305 mm H |
| Weight | ~28 kg |
| Power Supply | 100-240 V AC, 50/60 Hz, Grounded 3-pin plug |
| Power Consumption | <500 W |
| Warranty | 1 Year |
Downloads

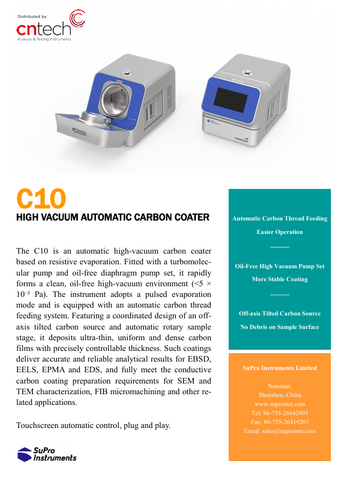

C10 Brochure
