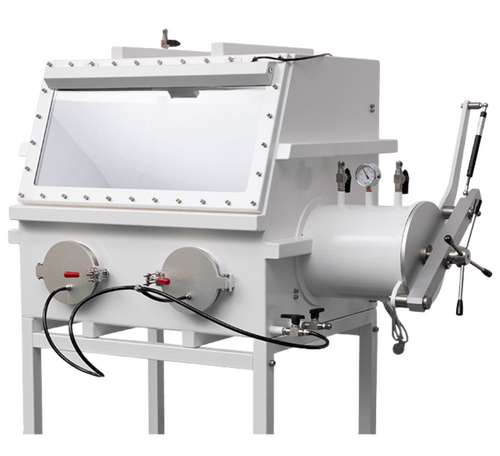

C-type of vacuum glove box
The C-type of stainless steel glove box consists of a main chamber that can be evacuate, a antechamber that can be evacuate, two glove ports, a side door, a LED lighting, a inlet and a outlet ports, a vacuum pressure gauge, a power socket and two KF25 spare ports on the back. Reduce the moisture and oxygen parameter inside the box by vacuuming and supplementing inert gas to meet various experimental and production requirements. It is suitable for major university laboratories, scientific research institutes and high-tech enterprises, etc.
Key Features
- Vacuum pump 2L/4L
- Movable stand, no desktop available for laboratory use
- Fully automatic pressure controller
- Domestic & imported moisture and oxygen sensor
- Fully automatic moisture and oxygen content controller
- Foot pressure controller
- UV sterilization lamp
- Oven & refrigerator
- Dust removal and cleaning system
- Purification system H2O&O2 ≤ 0.1PPM
Manufacturer
Torun
Torun are a leading glove box manufacturer committed to the research and production of dry cabinets, vacuum boxes, glove boxes, and automated anhydrous and anaerobic intelligent equipment.
Principle
The principle of the stainless steel C-type vacuum glove box is to evacuate the main chamber and then fill it with high-purity inert gas to reduce the moisture and oxygen parameter inside the box. After repeated vacuuming and gas replenishing, the moisture and oxygen parameter can be less than 200PPM (specific values are affected by the number of operations and the purity of the inert gas).
The function of the antechamber is that if it is necessary to transfer items inside or outside the box during the experiment, it can be done through the antechamber, so as not to damage the low moisture and oxygen atmosphere that has been replaced inside the main chamber.

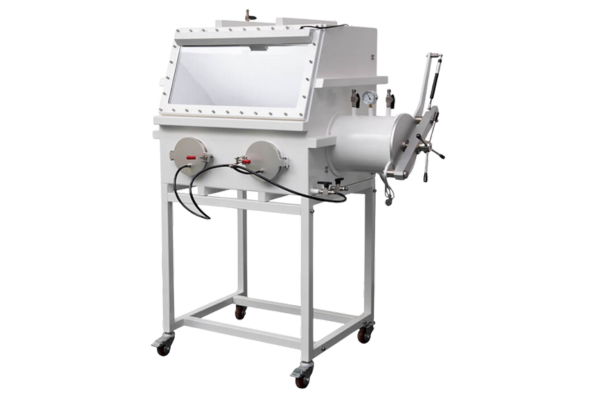

Application area
Mainly creating anaerobic and non humid environments for organic metal chemistry, organic synthesis, 3D printing, new material powder packaging, special anaerobic and hydrophobic chemical treatment, biomedical, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc.

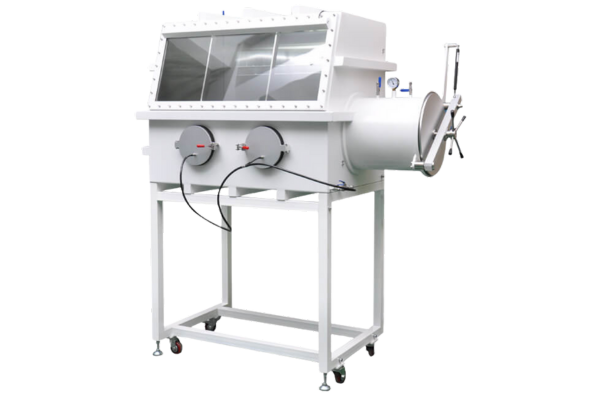

Characteristics
1. Made of SUS 304 # stainless steel material, not affected by most experimental materials, corrosion-resistant, and rust free.
2. The box has high strength and can be evacuated to -0.1Mpa. The outside of the box is reinforced with reinforcing ribs to ensure its durability.
3. The window is made of highly transparent tempered glass, and the upper part of the window is equipped with LED lighting. During the experiment, the visual acuity is clear and there are no blind spots.
4. The interior of the box is equipped with a power socket, which is convenient for connecting experimental instruments such as spin coating machines and scales.
5. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head and has a ball valve switch.
More information
| Chamber | SUS304 stainless steel, thickness: 3mm. Inner surface: stainless steel brushed treatment. External surface: spray painting, white. |
| Window | The front of the main chamber is made of 10mm thick tempered glass, with a wide viewing angle and no blind spots. |
| Ball valve | Stainless steel ball valve, quick plug or pagoda head interface, one inlet and one outlet respectively. |
| Lighting | No UV, white light, installed on the upper part of each glass window. |
| Source | Multi-hole power sockets are configured inside the box to meet the internal instrument needs of customers. |
| Gloves | One pair of latex gloves with length 600mm. |
| Reserved Interface | Reserved interface for KF25, glove box can be upgraded at any time in the future. |
Specifications
| Model | VGB-1C | VGB-3C | VGB-4C |
| Size | 600W*450D*420H | 780W*650D*700H | 1120W*740D*900H |
| Vacuum degree | -0.1Mpa | -0.1Mpa | -0.1Mpa |
| Size of antechamber | φ210*260L | φ240*260L | φ385*400L |
| Side door | Manual door: 300H*260D | Manual door: 350H*300D | Manual door: 450H*350D |
