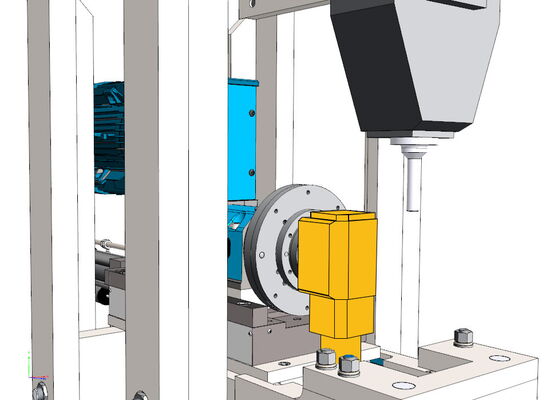

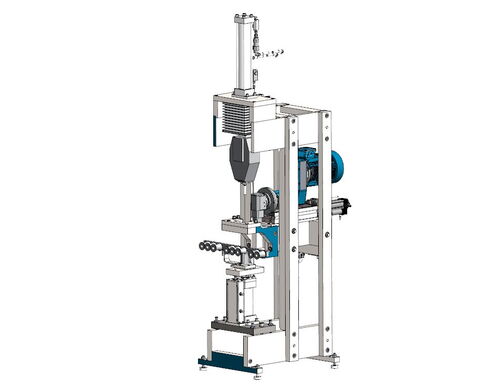

Bre-Aut CHA with fixed clamps
Automated inline system with fixed clamps for precise, reliable and efficient testing of finished train wheels in railway manufacturing.
Manufacturer
Ernst
Ernst have been driving the research and innovation in hardness testing for over 60 years. Ernst produce portable, automatic and bench-top hardness testers, covering all hardness testing requirements, together with products that extend their functionalities such as indentation readers and case depth analysers.
Customer Requests
-Automatic machine to be placed in production environment
-Request for fully automatic machine cycle
-Robust and durable machinery
-Security system during machine operation
-Possibility of processing and exporting measurement data
Solution adopted
- The provided machinery has a hydraulic principle to withstand production environments
- PLC (Programmable Logic Controller) with touchscreen monitor for configuration and management of machine movements (input, output and signals), also includes the management of the hydraulic power unit
- Oversized machine components allow continuous use of the instrument
- Touchscreen monitor featured with Modbus serial communication protocol
Technical Details
| Power supply | 480 V trifase 60 Hz |
| Loads | 750/3000 kgf (7360 – 29430 N) |
| Norms and certifications | ASTM E103 |
| Selectable functions | Load time, tolerances, stats, languages |
| Reading | Automatic impression by depth probe |
| Weight | 1,6 t |
| Working principle | Brinell |
| Standard scales | HB/30 |
| Load time | Adjustable 1 – 30 sec |
| Overall dimensions | 790 mm x 2930 mm |
