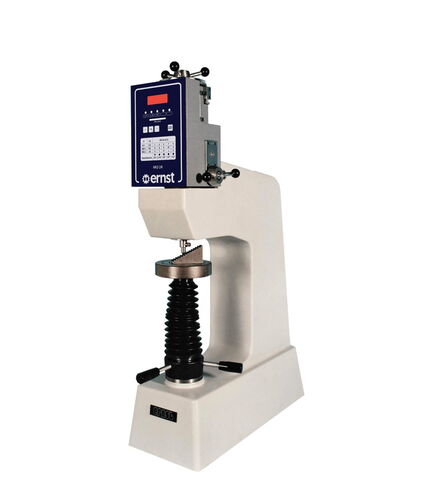

Bench Hardness Tester NR3D
The NR3-D hardness tester by Cisam-Ernst is an excellent choice for measuring hardness based on the Rockwell principle, with standardized preload and load. Available in both standard Rockwell and superficial versions, the NR3-D stands out for its versatility, allowing the testing of a wide range of materials, from the hardest metals to light alloys and even plastic. Its versatility is backed by a wide selection of loads and indenters, ensuring accuracy even for small and medium-sized items.
Key Features
- Rockwell & Superficial Rockwell: Easy interchangeability between standard and superficial versions using the same stand
- Measures in Brinell Points Too: Provides readings on standard HB 30 scales, HB 10, and HB 5 for light alloys and aluminium
- High Durability: The spring-loaded system makes the NR3-D ideal for challenging environments with extreme temperatures, dust, humidity, and vibrations
- Robust and Easy to Use: Perfect for schools and laboratories, thanks to its sturdy structure and ease of use
- Low Investment: An affordable price that ensures a quick return on investment
- Optimal for Composite Materials and Spheres: The absence of the locking pin and presser allows for precise measurements even on small-sized parts
- Brinell Indenters Available: Allows for accurate measurements using Brinell loads and indenters
- Removable Measuring Head: Facilitates faster revisions and calibrations
- Absence of penetrator and penetrator shroud - Allows the measurement of small parts and is ideal for the control of spheres or composite materials
Manufacturer
Ernst
Ernst have been driving the research and innovation in hardness testing for over 60 years. Ernst produce portable, automatic and bench-top hardness testers, covering all hardness testing requirements, together with products that extend their functionalities such as indentation readers and case depth analysers.
Technical Details
| Loads | MOD DR: 60kgf, 62.5kgf, 100kgf, 125kgf, 150kgf, 187,5kgf (588N, 613N, 981N, 1226N, 1471N, 1839N) MOD DSR: 10kgf, 15kgf, 15.6kgf, 30kgf, 31.2kgf, 45kgf (98N, 147N, 153N, 294N, 306N, 441N) |
| Norms and certifications | ASTM E 18 EN ISO 6506 |
| Minimum measurable diameter | 4mm |
| Output interfaces | RS 232 |
| Reading | Digital on display |
| Load application method | Manual |
| Weight | 58kg |
| Preload | MOD DR: 10kgf (98.1N) MOD DSR: 3kgf (29,4N) |
| Working principle | MOD DR: Rockwell MOD DSR: Superficial Rockwell |
| Standard scales | MOD DR: HRC, HRD, HRE, HRF, HRG, HRH, HRK, Brinell HB30 MOD DSR: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X |
| Load time | Operator choice |
| Working area dimensions | 3mm x 3mm |
