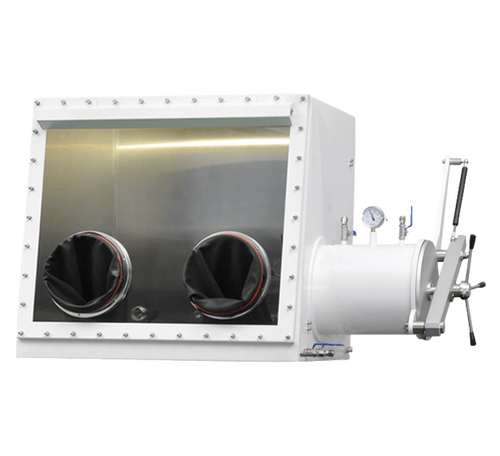

B-type of vacuum glove box
The B-type of stainless steel glove box consists of a main chamber, a antechamber, two glove ports, a side door, a LED lighting, a inlet and a outlet ports, a vacuum pressure gauge, a power socket and two KF25 spare ports on the back. Reduce the moisture and oxygen parameter inside the box by vacuuming and supplementing inert gas to meet various experimental and production requirements. It is suitable for major university laboratories, scientific research institutes and high-tech enterprises, etc.
Key Features
- Vacuum pump 2L/4L
- Movable stand, no desktop available for laboratory use
- Fully automatic pressure controller
- Domestic & imported moisture and oxygen sensor
- Fully automatic moisture and oxygen content controller
- Foot pressure controller
- UV sterilization lamp
- Oven & refrigerator
- Dust removal and cleaning system
- Purification system H2O&O2 ≤ 0.1PPM
Manufacturer
Torun
Torun are a leading glove box manufacturer committed to the research and production of dry cabinets, vacuum boxes, glove boxes, and automated anhydrous and anaerobic intelligent equipment.

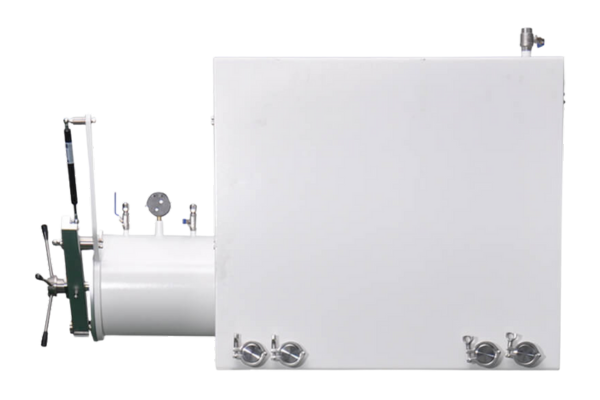

Principle
The principle of the stainless steel B-type vacuum glove box is to evacuate the antechamber and then fill it with high-purity inert gas to reduce the moisture and oxygen parameters inside the box. The moisture and oxygen parameters after replacement are affected by the time of operations and the purity of the inert gas. The biggest difference from the C-type vacuum glove box is that the main chamber cannot evacuate.
Application area
Mainly creating non-moisture and non-oxygen environments for organic metal chemistry, organic synthesis, 3D printing, new material powder packaging, special anaerobic and hydrophobic chemical treatment, biomedical, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc.

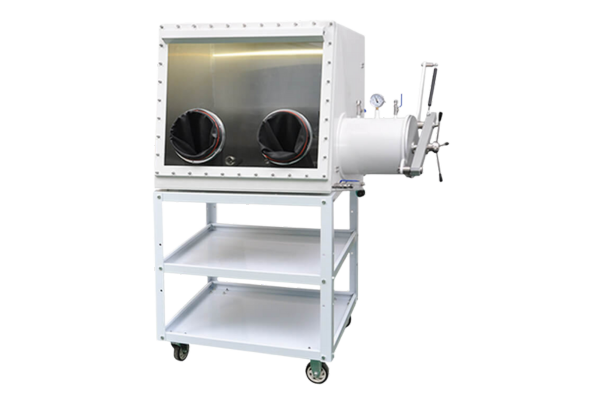

Characteristics
1. Made of SUS 304 # stainless steel material, not affected by most experimental materials, corrosion-resistant, and rust free.
2. The main chamber cannot evacuate, the antechamber at the right side can be evacuated to -0.1Mpa.
3. The window is made of highly transparent tempered glass, and the upper part of the window is equipped with LED lighting. During the experiment, the visual acuity is clear and there are no blind spots.

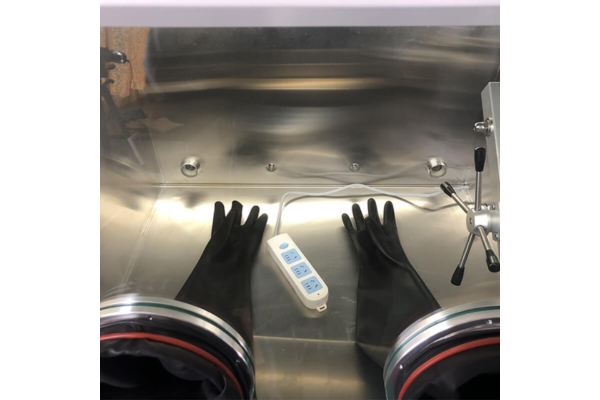

4. The interior of the box is equipped with a power socket, which is convenient for connecting experimental instruments such as spin coating machines and scales.
5. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head and has a ball valve switch.
More information
| Chamber | SUS304 stainless steel, thickness: 3mm. Inner surface: stainless steel brushed treatment. External surface: spray painting, white. |
| Window | The front of the main chamber is made of 10mm thick tempered glass, with a wide viewing angle and no blind spots. |
| Ball valve | Stainless steel ball valve, quick plug or pagoda head interface, one inlet and one outlet respectively. |
| Lighting | No UV, white light, installed on the upper part of each glass window. |
| Source | Multi-hole power sockets are configured inside the box to meet the internal instrument needs of customers. |
| Gloves | One pair of latex gloves with length 600mm. |
| Spare Interface | Reserved interface for KF25, glove box can be upgraded at any time in the future. |
Specifications
| Model | VGB-1B | VGB-3B | VGB-4A |
| Size | 600W*450D*420H | 780W*650D*700H | 1120W*740D*900H |
| Pressure range of mani chamber | ±1000PA | ±1000PA | ±1000PA |
| Size of the antechamber | φ210*260L | φ240*260L | φ385*400L |
| Vacuum degree of the antechamber | -0.1Mpa | -0.1Mpa | -0.1Mpa |
| Side door | Manual door: 300H*260D | Manual door: 350H*300D | Manual door: 450H*350D |
