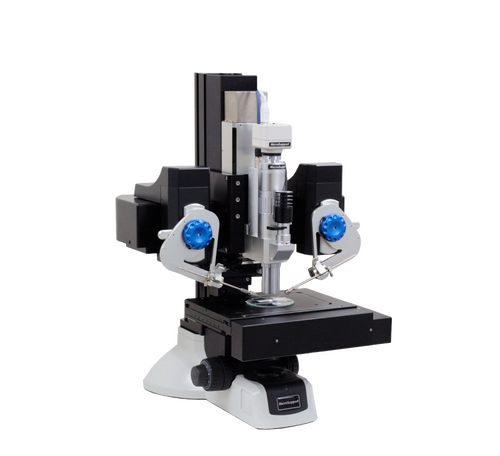

Axis Pro SS

Axis Pro SS is a high ability micromanipulation system which fuses high ability zoom microscope and manipulator for easy operation.

Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Product Videos

Axis Pro SS

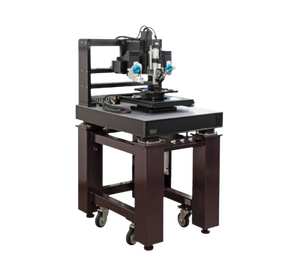

Axis Pro SS is a high ability micromanipulation system which fuses high ability zoom microscope and manipulator for easy operation. The system is designed to fit various sampling and budget of customers. You can select a suitable combination among several pattern. For example, one hand type, large XY stage type, without transfer stage type, etc

Key Features

  • Consistently sample ≥5μm objects with precision and ease
  • Efficient particle removal in cleanroom environments made possible
  • Fully covered and enhanced safety, operability, and precision
  • Once the sample is placed, execute the desired operation with a PC mouse
  • Standard-equipped: Motorised second stage for seamless sample transfer
  • Program-controlled error-free sample transfer
  • Built-in storage space for keeping accessories
  • Simplified setup with the use of angle-fixed arms
  • Choose between one-arm type or two-arm type
  • Adjusts for various sample heights with its ascent and descent motion

Description

Axis Pro SS is a custom-designed Electric System. This PC mouse-operated microscope-integrated electric micromanipulator system empowers seamless picking up and delivery of microscopic samples. It is used for various applications, including FT-IR microscopy of foreign substances, collection of FIB-processed TEM thin samples, and precise marking. This model can be customised for large stages and equipment integration.

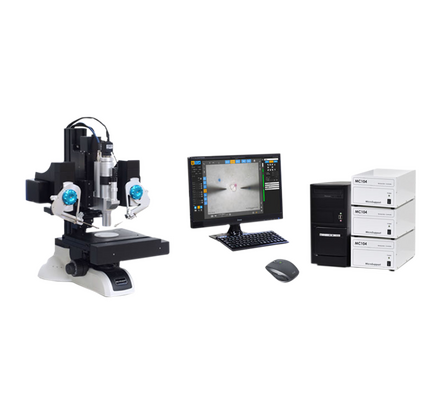

Axis Pro SS inclusions

  • AXIS PRO SS Main unit (configuration varies depending on specifications)
  • Gigabit Ethernet (GigE) camera
  • LED (reflection/transmission) lighting device
  • Dedicated PC (Windows 10 IoT Enterprise for Embedded 64-bit)
  • 21.5″ LDC display (Full HD panel)
  • Dedicated stage controller MC-104

Axis Pro Applicable Main Analytical Method

  • Fourier transform infrared spectrometer (FTIR)
  • Micro Fourier transform infrared spectrometer (μFTIR)
  • Laser Raman Spectroscopy (μRAMAN)
  • X-ray Diffraction (XRD)
  • Wavelength Dispersive X-ray Fluorescence (WDXRF)
  • Energy Dispersive X-ray Fluorescence (EDXRF)
  • Electron Probe Micro Analyser (EPMA)
  • Gas Chromatography – Mass spectrometry(GC/MS)
  • Liquid Chromatography – Mass Spectrometry(LC-MS)
  • Fourier-Transform Nuclear Magnetic Resonance Spectrometry (FT-NMR)
  • Transmission Electron Microscope (TEM)
  • Scanning Electron Microscope (SEM)
  • Focused Ion Beam (FIB)
  • Scanning Probe Microscope (SPM)
  • Time-of-Flight Secondary Ion Mass Spectrometry (TOF-SIMS)

Downloads

Brochures

Microsupport Product Catalogue

View Brochure

Options

High-precision Electric Rotator

FIB lift-out

Electric Microtweezers

Grasping/picking up & releasing objects of ~30μm

Rotational Electric Stage

Optimizing the sample orientation

Bi-axis Rotational Electric Stage

Coordinate orientation control of the sample and transfer location

Rotational Mechanical Stage

Ideal for fine adjustments during cutting and milling

Mechanical Bi-axis Sample Holder

Ideal for adjusting the sample parallelism

Darkfield illumination

For discerning fine scratches and foreign substances

Tilted Illumination Adapter

Improves contrast, e.g. for undulating substances
