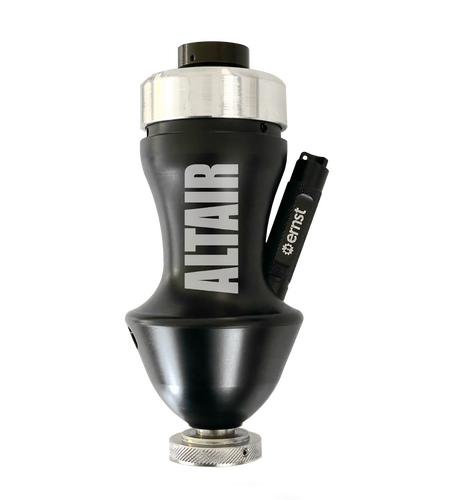

Altair 20x Microscope
Elevate your precision measurements with the Altair 20x Hi-Light Scope. Designed for professionals, this high-performance scope boasts an array of features to meet your demanding needs.
Key Features
- Integrated Light Source: The built-in LED lighting ensures a bright, clear view of the reading area, enhancing visibility and accuracy.
- Removable Base Ring: The scope comes with a detachable base ring, allowing for versatile applications and easy adjustments.
- Adaptable Base: The narrow base design makes it ideal for smaller, confined areas without compromising stability.
- Ergonomic Design: Lightweight yet robust, the scope's ergonomic design ensures comfortable handling and ease of use, reducing fatigue during extended use.
- Precision Measurements: Featuring a graduated scale of 0-6 mm and a resolution of 0.05 mm, it provides precise and reliable measurements for various applications.
- Compact Dimensions: With a diameter of 66 mm and a height of 151 mm, this scope is compact and portable, weighing just 0.720 kg.
- Power Supply: Operates on a standard AAA 1.5V battery, ensuring convenience and ease of replacement.
Manufacturer
Ernst
Ernst have been driving the research and innovation in hardness testing for over 60 years. Ernst produce portable, automatic and bench-top hardness testers, covering all hardness testing requirements, together with products that extend their functionalities such as indentation readers and case depth analysers.
Supplied Accessories
- Protective Case: Ensures safe storage and transportation of your scope.
- Calibration Certificate: Guarantees the accuracy and reliability of your measurements.
- Brinell Indentation Reading Chart: A handy reference tool for quick and easy readings.
- Instructions for Use: Comprehensive guide to help you get the most out of your Altair 20x Hi-Light Scope.
Technical Details
| Power supply | 100 - 240 Volt |
| Loads | Real time continuous progressive application with acquisition of load values and electrical resistance from 1kgf to 10kgf (9.81N to 98.1N) |
| Norms and certifications | DIN 50158 | ASTM E-110 | ACCREDIA certificate upon request |
| Minimum measurable diameter | < 5 mm - it is possible to execute tests in small cavities with the use of special penetrators |
| Output interfaces | Tablet with micro USB - micro TF slot - WiFi - Bluetooth - gps |
| Reading | Tablet display touch-screen 5.9" |
| Languages | Italian, English, German, Other languages on request |
| Load application method | Manual |
| Weight | Mechanical unit 670g Electronic unit 380g |
| Working principle | ESATEST® Pat ERNST - by means of electrical resistance |
| Standard scales | DRE - HB10 - HB30 - HB5 - HRA - HRB - HRC - HRF - HV - N/mm² |
| Working area dimensions | 2mm x 2mm |
| Memory | 16GB |
