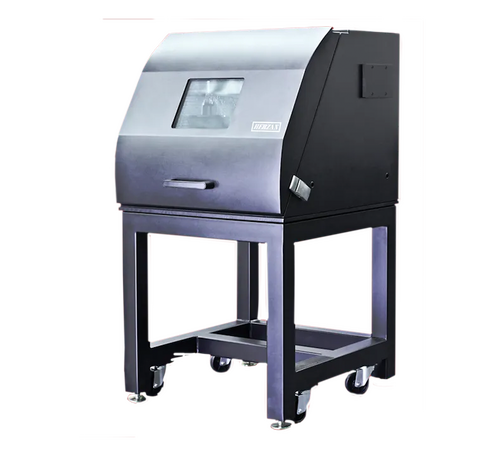

AEK-2002
The preferred solution for AFMs needing maximum protection against acoustic noise. The AEK-2002 acoustic enclosure delivers a field-tested and optimised solution for protecting sensitive instruments from disruptive acoustic noise.
Manufacturer
Herzan
Our core strategy is to provide carefully articulated vibration, acoustic, and EMI isolation solutions to the global research community. We are committed to delivering exact solutions for customer research needs, improving the overall performance of our environmental isolation systems, and providing the best customer experience possible for all users. In the end, what is important for us is to have the researcher focus on what matters most: their research (and not their isolation solution). We have been privileged to work with some of the most innovative individuals in the scientific research community and are proud to help advance the research performed by our customers.
CN Tech are the exclusive Herzan distributor for:
United Kingdom, Republic of Ireland and Europe.
Key Features
- Maximum Isolation: Multiple variable density layers of sound-damping material ensure substantial isolation of high and low frequency acoustic noise
- Sound Structure: Dense welded steel frame provides increased stiffness and reduces ground-borne vibration transference
- Full Accessibility: Ease of access (<5 Lb force opening door) and manoeuvrability (caster wheels) allows time-critical research to become seamless
- Limitless Personalisation: Upgrades for performance, environmental, usability, and accessibility features available

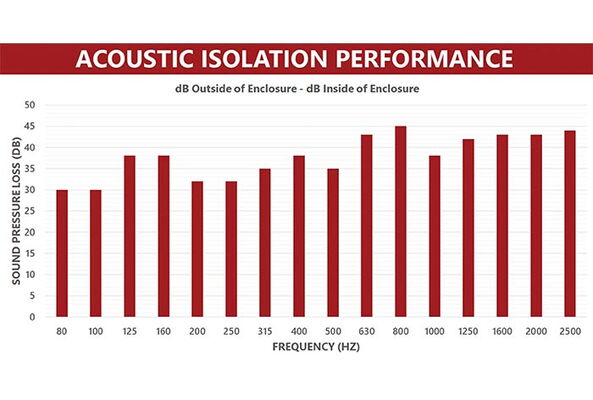

Performance Highlights
- 30 dB of sound loss @ 100 Hz
- 35 dB of sound loss @ 500 Hz
- 38 dB of sound loss @ 1,000 Hz
- 43 dB of sound loss @ 1,500 Hz
- 43 dB of sound loss @ 2,000 Hz
- 44 dB of sound loss @ 2500 Hz
The multi-layered, variable density material lining the inside of the AEK-2002 allows for the highest performing acoustic isolation performance across a broad frequency spectrum.

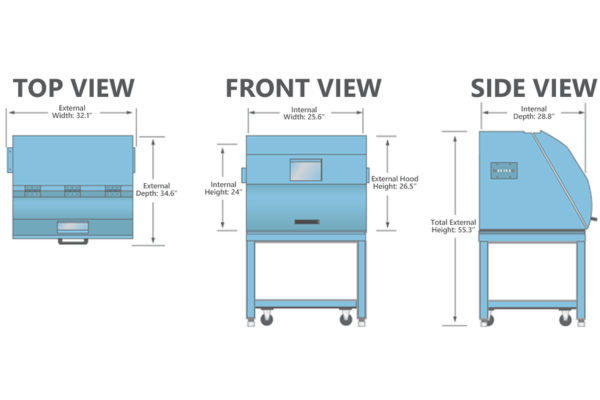

Dimensions
Internal Dimensions:
Imperial (W x D x H): 25.6 x 28.8 x 24 inches
Metric (W x D x H): 650 x 731.5 x 609.6 mm
External Dimensions:
Imperial (W x D x H): 32.1 x 34.6 x 55.3 inches
Metric (W x D x H): 815.3 x 878.8 x 1404.6 mm
When determining the enclosure suitable for your instrument or application, verify the dimensions of the instrument/application do not exceed the internal dimensions of the enclosure. There are many standard enclosure sizes (with custom enclosure sizes available), allowing any instrument or application to receive research-grade acoustic isolation.
You will also want to make note of the AEK-2002’s sloping front door, as the height towards the front near the door will be less than the overall internal height.
Downloads
Acoustic Enclosure User Guide
AEK-2002 Brochure
Options
Popular Upgrades
In addition to the AEK-2002’s standard features, additional upgrade features can be added, making the AEK-2002 versatile in addressing specific research needs for any user.
Popular upgrade features include:
- Integrated Vibration Isolation (Active or Passive)
- Acoustic Performance Boost
- EMI Shielding
- NanoDamp Frame
- Gas Purge
- Temperature Stability
- Custom Sizes and Colours
- And More!
