How Stylus Profilers Measure Surface Roughness

Surface roughness is a critical aspect of material quality, influencing performance, aesthetics, and wear resistance. Stylus profilers offer a precise, reliable method for measuring surface roughness, making them indispensable tools in industries ranging from automotive to electronics manufacturing. These instruments combine mechanical scanning, vertical displacement sensing, and advanced data processing techniques to provide detailed insights into surface texture. Let’s explore how these components work together.

Mechanical Scanning: The Start of Precision

Stylus profilers begin the measurement process with mechanical scanning. A fine stylus tip, typically made of diamond due to its durability and sharpness, physically contacts the material surface. As the stylus moves across the surface, it follows the minute peaks and valleys, tracing the material's topography.

The precision of this process depends heavily on the stylus tip, which is designed to maintain contact without causing significant surface deformation. A common challenge in stylus profilometry is balancing tip sharpness with durability. Diamond tips excel in this regard, as they resist wear over repeated measurements, ensuring consistent results.

The stylus is mounted on a high-precision actuator, which moves it horizontally across the surface at a controlled speed. This scanning process is akin to reading a landscape, with the stylus recording every ridge, dip, and imperfection encountered.

Vertical Displacement Sensing: Capturing Peaks and Valleys

As the stylus navigates the surface, it encounters vertical displacements—the rises and falls corresponding to surface roughness. These displacements are where stylus profilers excel, using high-precision sensors to capture even the smallest changes in height.

Modern stylus profilers use sensors like optical lever sensors or capacitive sensors to detect vertical movements. These sensors are capable of resolving height changes at the nanometre level, enabling the measurement of roughness on surfaces that may appear perfectly smooth to the naked eye. The sensors convert these vertical movements into electrical signals, which are then analysed to quantify surface roughness.

Data Processing: From Raw Data to Meaningful Insights

After the profiler collects vertical displacement data, the information must be processed to provide a comprehensive understanding of the surface’s roughness characteristics. This is where advanced data processing techniques come into play.

Data from the stylus is first subjected to filtering, which separates roughness from other surface characteristics like waviness or form. The most common filters are Gaussian filters, which are adept at isolating the fine-scale roughness while ignoring larger-scale surface undulations.

Key roughness parameters are then calculated, including:

        Ra (Average Roughness): A measure of the average deviation from the mean line over a surface. Ra is one of the most widely used roughness parameters, offering a straightforward indication of surface quality.

        Rq (Root Mean Square Roughness): This provides a more statistically rigorous measure by calculating the square root of the mean of the squares of the deviations. Rq is often used in tandem with Ra to give a fuller picture of surface irregularities.

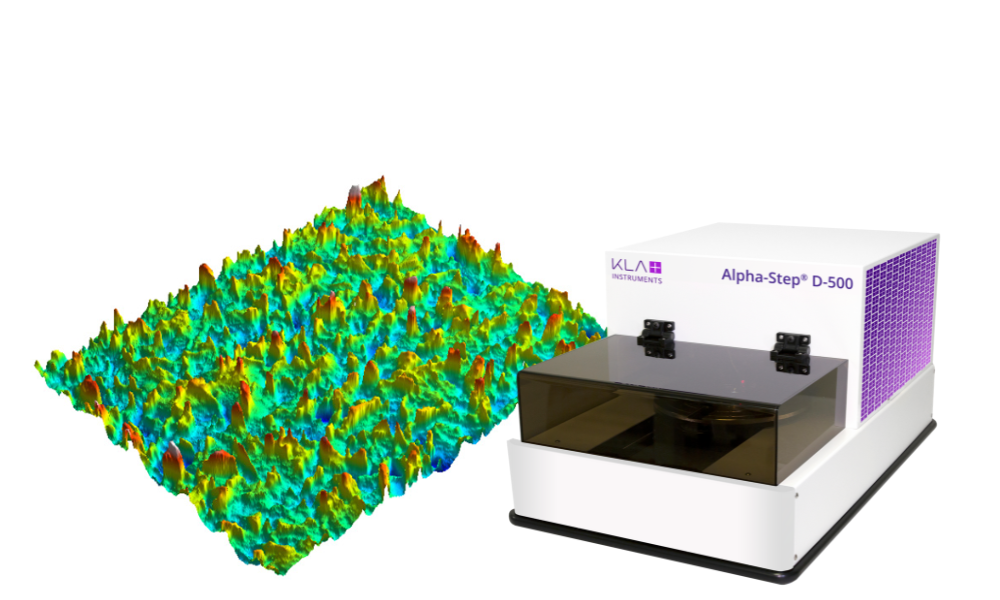

In addition to roughness, stylus profilers can generate detailed 2D and 3D surface maps, offering visual representations of surface textures. These maps are invaluable for applications requiring not just a numerical roughness value but also a topographical view of the surface features.

Capabilities and Flexibility of Stylus Profilers

Stylus profilers are renowned for their versatility. Their ability to measure roughness at scales ranging from nanometers to micrometres makes them suitable for a broad range of materials, including metals, ceramics, polymers, and even soft or transparent samples.

These instruments are capable of performing both 2D line scans and 3D surface scans, with the latter providing a more comprehensive view of surface topography. For applications that require minimal surface contact, such as measuring delicate or soft materials, low-force measurement options are available. Some stylus profilers can apply forces as low as 0.03 mg, ensuring that the surface remains undamaged during measurement.

Stylus profilers also boast high vertical resolution, down to sub-Angstrom levels, and can measure features with heights up to 1200 μm. This combination of resolution and range makes them suitable for industries that demand both fine-scale and large-scale surface assessments.

Advantages of Stylus Profilers Over Other Techniques

One of the standout benefits of stylus profilers is their ability to deliver high-resolution surface roughness data with unmatched accuracy. They also offer flexibility in terms of the materials they can measure, including transparent and soft surfaces that might be challenging for other techniques like optical profilometry. Furthermore, the constant force control available in many modern stylus profilers ensures stable contact during scanning, reducing the chances of measurement errors due to fluctuating forces.

Compared to non-contact methods, stylus profilers offer the advantage of being unaffected by surface reflectivity or transparency. This makes them highly reliable for measuring surfaces that are glossy, translucent, or have varying optical properties.

Interested in Surface Profilometry?

Stylus profilers remain a trusted tool for measuring surface roughness, combining the mechanical reliability of contact-based scanning with the precision of advanced vertical displacement sensing. Whether used in quality control, research, or materials development, these instruments provide detailed, accurate assessments of surface texture. By offering a versatile range of capabilities—from low-force measurements on delicate surfaces to high-resolution scans at the nanometre level—stylus profilers continue to be an essential tool for ensuring surface quality across diverse industries.
