How Environmental Control Technology Enhances EM Images

Electron microscopy (EM) offers detailed insights into the microstructures of materials, making it indispensable in fields like materials science, life sciences, and nanotechnology. However, obtaining high-quality EM images requires more than just advanced microscopy equipment; environmental control technology plays a crucial role in optimising the imaging process. By managing parameters like acoustic noise, magnetic fields, and vibration, environmental controls help to stabilise imaging conditions, reduce noise, and improve image resolution and contrast.

This article will explore how environmental control technologies elevate EM imaging, enabling researchers to achieve greater clarity and precision in their work.

Laying the Groundwork with Environmental Site Surveys

Electron microscope installation demands a deep understanding of the proposed location's conditions. Various environmental factors can impede the performance of precision instruments like SEMs and TEMs. Yet, it is difficult—often impossible—to implement effective mitigation strategies without first characterising potential issues. Site surveys provide that data.

An environmental site survey ultimately supports informed decision-making. It helps researchers and facility managers choose the best location for sensitive equipment and plan necessary modifications. A site survey will assess a range of potential sources of interference before installation, reducing the risk of costly post-installation adjustments. This further guarantees the location's suitability, ensuring optimal performance of electron beam instruments.

Typical sources of interference that a site survey will consider include:

1. Magnetic Fields: Fluctuating or excessive magnetic fields can interfere with the stability of electron beams, distorting images and reducing resolution.

2. Floor Vibrations: Vibrations, whether from building infrastructure or external sources, can blur images and disrupt sensitive experiments.

3. Acoustic Noise Levels: High noise levels can introduce micro-vibrations, compromising the performance of precision instruments.

4. Temperature Fluctuations: Variations in temperature can cause thermal drift, affecting sample stability and imaging accuracy.

5. Humidity Variations: Changes in humidity can lead to sample degradation or equipment malfunction, particularly for moisture-sensitive materials.

Advanced Equipment for Environmental Surveys

Spicer SC11

Accurate and reliable measurements are the cornerstone of effective environmental site surveys, and CN Tech provides specialised tools designed to meet the highest standards of precision. The SC11/SI (Sensor Interface) is a comprehensive system tailored for detailed site assessments. Equipped with advanced data acquisition and pre-processing capabilities, this system excels in analysing critical environmental factors such as magnetic fields, vibrations, and acoustic noise. Its robust design ensures accurate results, making it indispensable for laboratories requiring high-precision evaluations.

For portable and focused assessments, the SC11/Compact offers a user-friendly solution specifically engineered for magnetic field measurements. This compact tool features an embedded microcomputer, enabling real-time data collection with exceptional ease of use. Its portability and efficiency make it a popular choice for researchers conducting rapid, on-site evaluations of potential instrument locations.

Spicer SC28

When continuous monitoring is required, the SC28 Monitoring System stands out as an advanced solution for maintaining environmental stability around electron beam instruments. This state-of-the-art system is designed for long-term deployment, offering detailed data logging and real-time insights into fluctuations in the environment. Particularly suited for high-end TEM setups, the SC28 ensures that any environmental variations are promptly identified, helping researchers maintain optimal conditions for their sensitive instruments.

Beyond the Survey: Systems for Environmental Control

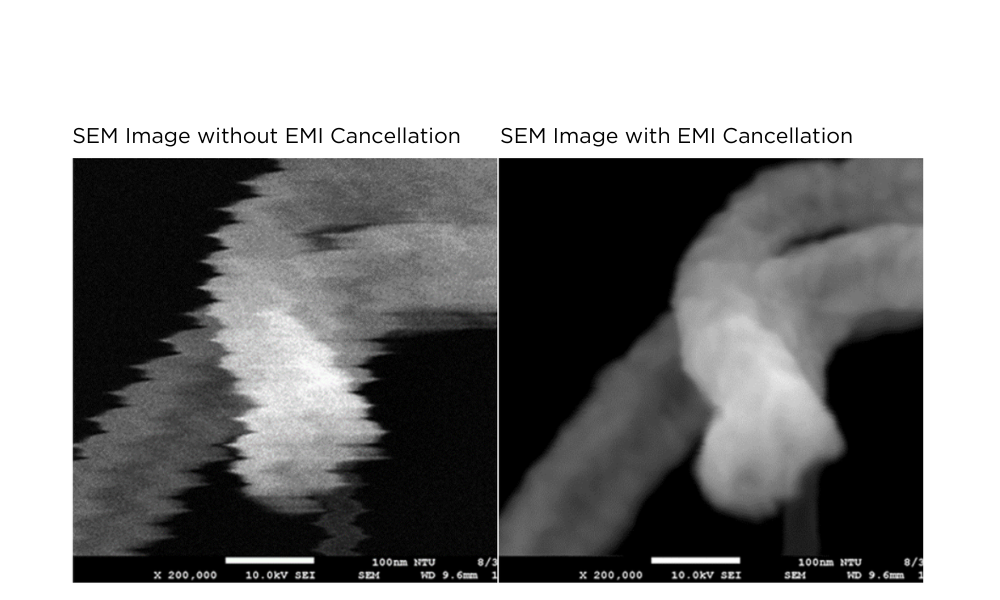

Magnetic Field Cancelling Systems: Protecting EM from Electromagnetic Interference

Magnetic fields can disrupt both SEM and TEM imaging, leading to distorted or unusable data. CN Tech provides Spicer SC24 and SC28 magnetic field cancelling systems, available in single-loop, double-loop, and frame configurations, as well as enclosures.

●     Spicer SC24 and SC28: These systems detect and cancel magnetic fields in real-time, ensuring that sensitive electron instruments remain unaffected by electromagnetic interference. Customisable to suit different laboratory layouts, these systems are essential for high-precision imaging in environments with fluctuating magnetic fields.

Vibration Isolation: Ensuring Stability for SEM and TEM

Vibrations are a common source of image distortion in both SEM and TEM. CN Tech offers advanced vibration isolation solutions from Minus K and Table Stable, which provide unmatched stability for microscopy.

●     Minus K Vibration Isolation Systems: Using passive mechanical isolation technology, Minus K systems eliminate vibrations without requiring power or maintenance. These systems are ideal for environments where external vibrations could compromise image clarity.

●     Table Stable TS Series: The Table Stable isolators use active technology to counteract vibrations in real-time, providing superior stabilisation for high-resolution TEM and SEM imaging.

Acoustic Isolation: Shielding Instruments from Noise Pollution

Acoustic noise can interfere with the operation of sensitive microscopes, particularly during high-magnification imaging. Herzan acoustic enclosures and wall-mounted acoustic tiles are designed to create a quiet environment for EM instruments.

●     Herzan Acoustic Enclosures: These enclosures shield instruments from external acoustic noise, providing a controlled environment that enhances imaging quality. For laboratories with significant noise pollution, Herzan enclosures are a reliable solution.

●     Acoustic Tiles: Mounted on walls near SEM or TEM workstations, these tiles absorb sound waves, reducing ambient noise and preventing it from reaching sensitive instruments.

Enhancing Workflow Efficiency with Integrated Solutions

In addition to addressing specific environmental challenges, CN Tech’s integrated solutions simplify workflows for SEM and TEM users:

●     Vibration and Acoustic Isolation in One: Combining Herzan acoustic enclosures with Minus K and Table Stable vibration isolation systems provides dual protection, ensuring stable and quiet operating conditions for advanced electron microscopy.

●     Customisable Magnetic Field Cancellation: The Spicer SC systems offer tailored solutions for complex laboratory setups, including enclosures for multi-instrument workspaces.

Elevate Your SEM and TEM Imaging with CN Tech

Whether you’re conducting high-resolution imaging or in-situ studies, CN Tech’s environmental control solutions ensure that your SEM and TEM instruments operate under optimal conditions. From site surveys to long-term monitoring and noise reduction, our products address every aspect of the electron microscopy environment.

Explore our portfolio, including the Spicer SC systems, Minus K isolators, Table Stable platforms, and Herzan enclosures, to enhance your laboratory’s imaging capabilities. Browse our website or contact our team to learn how these solutions can transform your workflows.
