Z Slides

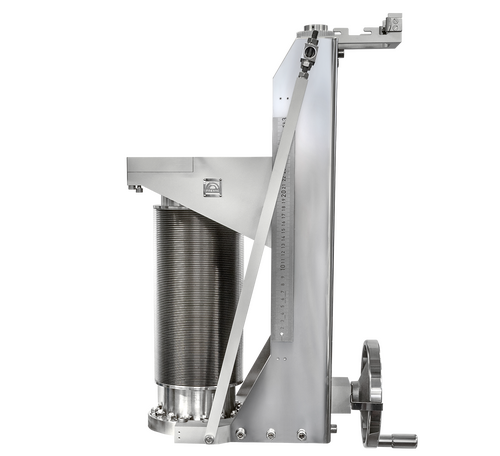

Precise UHV specimen translator having Z motion.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

The travelling flange can be chosen depending on the type of accessories. The translator is suitable for vertical or horizontal mounting. The Z slides are mostly used together with XY stages. After combining the Z slide with an XY stage we get the XYZ stage with three degrees of freedom. The Z slide can also be fitted with a stepper motor as required.

The Z slides have been designed for ease and convenience of use. These translators provide greater linear travel than is available from the linear shifts.

Technical data

Standard base flange DN 40CF, DN 63CF or DN 100CF
Standard travelling flange DN 40CF, DN 63CF or DN 100CF
Z range 75 – 800 mm (standard, other on request)
Z motion control handwheel / stepper motor (option)
resolution (manual/motorised) 500 μm / standard 10 μm (1 μm on request)
Bakeout temperature up to 150 °C

Lengths

Bellow ID39 Bellow ID65 Bellow ID102
Z range [mm] DN 40/40CF DN63/40CF
DN100/40CF
DN63/63CF DN100/63CF DN100/100CF
75 142 / 217 148.5 / 223.5 211 / 286
100 142 / 242 148.5 / 248.5 211 / 311
150 142 / 292 148.5 / 298.5 211 / 361
200 142 / 342 148.5 / 348.5 211 / 411
250 142 / 392 148.5 / 398.5 211 / 461
300 142 / 442 148.5 / 448.5 211 / 511
350 207 / 557 213.5 / 563.5 211 / 561
400 207 / 607 213.5 / 613.5 211 / 611
450 207 / 657 213.5 / 663.5 211 / 661
500 207 / 707 213.5 / 713.5 211 / 711
600 272 / 872 278.5 / 878.5 276 / 876
700 272 / 972 278.5 / 978.5 276 / 976
800 272 / 1072 278.5 / 1078.5 276 / 1076
