Z Chain Slides

Provides short strokes of Z travel with a wide range of bellows I.D.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

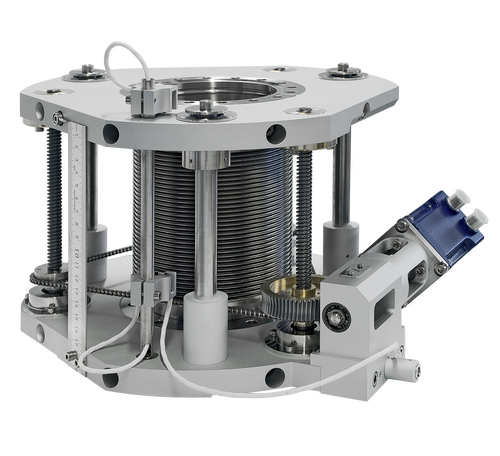

The slide is provided through three lead screws which are synchronously driven by a drive chain. Manual operation is provided by a handwheel assembly operating through a wormdrive reduction system. Z chain slides are often integrated with an XY stage. The unit is intended primarily for vertical operation with the load supported on the Z axis. For alternative orientations please contact our technical department. The Z chain slide can be motorised with the stepper motor shift.

Technical data

Base flange DN 100CF or DN 160CF*
Travelling flange DN 100CF or DN 100CF*
Z range 100 – 300 mm
Z motion control handwheel / stepper motor (option)
resolution (manual/motorised) 50 μm / standard 10 μm (1 μm on request)
Bakeout temperature up to 150 °C

Length

Compressed length [mm]
Extended length [mm]
Z range [mm] Bellow ID102
DN 100/100CF
Bellow ID156
DN 160/160CF
100 104.5
204.5
96
196
200 125
325
122.5
322.5
300 141
441
150
450

Applications

The Z chain slides are heavy duty translators designed to move heavy objects accurately in and out of the vacuum system. They are well suited to applications involving equipment insertion and withdrawal from points where space is restricted.
