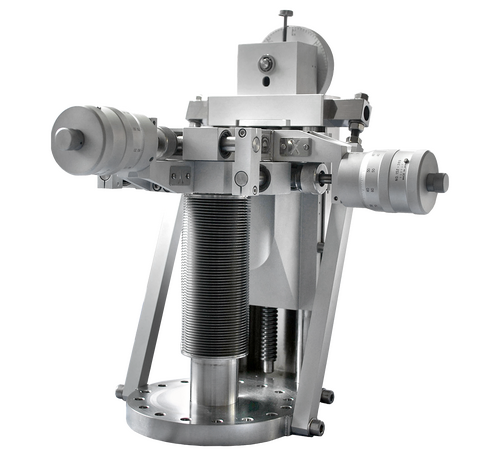

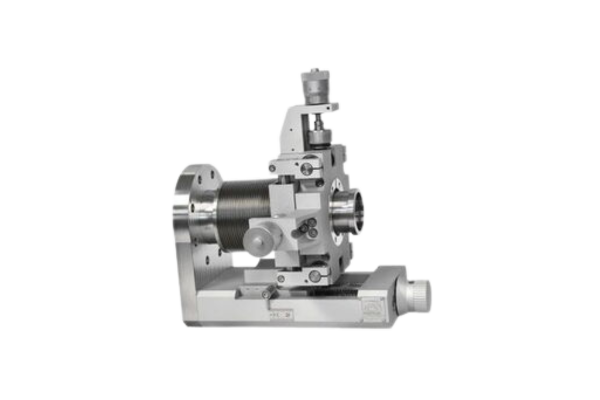

XYZ Mini Stages

High precision UHV specimen translator having X, Y and Z motions.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

The standard mounting flange is DN 63CF and the standard travelling flange is DN 40CF. All three axes are merged in one miniature stage that delivers outstanding performance at exceptionally low prices. The translators can work in any orientation.

Additional information
Only the Z movement can be motorised.

Technical data

Base flange DN 63CF or DN 100CF
Travelling flange DN 40CF
X, Y range ± 12.5 mm
resolution 5 μm
Z range 75 – 100 mm
resolution (manual) 0.5 mm
Bakeout temperature up to 150 °C
Compressed / Extended Length Compressed length [mm]
Extended length [mm]
Z range [mm] DN 40/40CF
bellow ID39
DN63/40CF
bellow ID39
DN100/40CF
bellow ID39
75 179
254
179
254
179
254
100 179.5
279.5
179.5
279.5

Applications

The XYZ mini manipulator has been designed for ease and convenience of use. X and Y movement is ± 12.5 mm, depending on the accessories that are fitted. Z movement is 75-250 mm, depending on the application.
