XY Stages

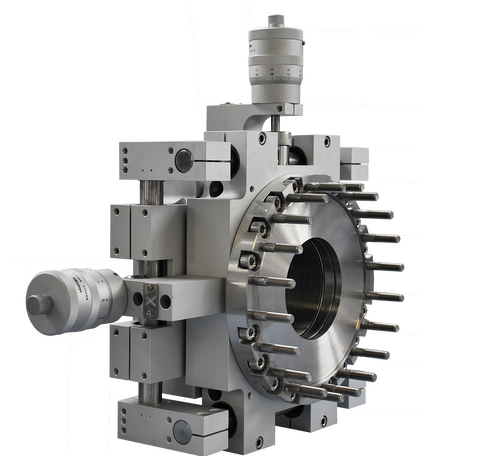

Precision, high rigidity UHV specimen translator having X and Y motions.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

The standard mounting flange is DN 160CF. A DN 100CF mounting flange version is also available. The stage can work in any orientation. The XY stages has been designed for ease and convenience of use. X and Y movement are ± 25.0 mm, depending on the accessories that are fitted. They can also be used to reposition a chamber port with an axis that is parallel to, but slightly off, the desired direction. In this last usage it is sometimes referred to as an XY adjuster and is a very economical alternative to other devices.

Technical data

Base flange DN 100CF or DN 160CF
Travelling flange DN 63CF or DN 100CF
Max free diameter 102 mm
X, Y range ± 12.5 mm or ± 25 mm
positional control micrometer / stepper motor (option)
resolution (manual/motorised) 5 μm / 1 μm
Bakeout temperature up to 150 °C
MAXIMUM
XY RANGES
Base flange Travelling flange Ø B [mm] X,Y range [mm]
real stroke (circle)
X,Y range [mm]
real stroke (square)
DN 100CF DN 63CF Ø 38 ± 25) ± 17.5
DN 100CF DN 100CF Ø 62 ± 12.5 ± 9
DN 160CF DN 63CF Ø 38 ± 25 ± 17.5
DN 160CF DN 100CF Ø 75 ± 25 ± 17.5
XY Stage DN
160/100CF ranges (example)
Ø B [mm]
ØA-ØB)/2 = real stroke (circle) Ø 50 Ø 80 Ø 100
DN 160/100CF XY ± 12.5 mm mounting flange bore ØA=125 mm ± 12.5 ± 12.5 ± 12.5
DN 160/100CF XY ± 12.5 mm mounting flange bore ØA=125 mm ± 25 ± 22.5 ± 12.5
DN 160/100CF XY ± 12.5 mm mounting flange bore ØA=125 mm ± 25 ± 25 ± 25
