X-ray Source Electronics Set XREC20

XREC20 electronics set dedicated for controlling SAX X-ray sources.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

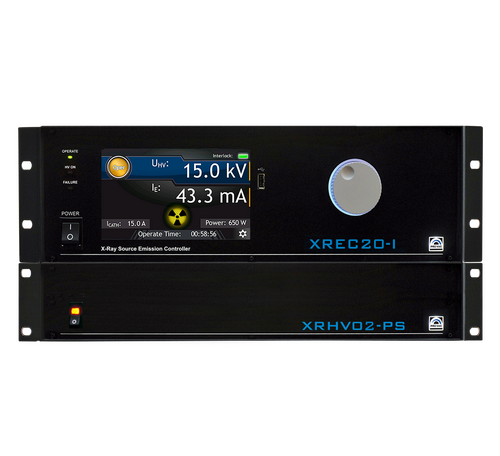

The XREC20 set comprises 2 units for full control of the SAX X-ray Sources: XREC20-I emission controller and XRHV02-PS high voltage power supply.

The XREC20-I unit controls the emission current of the X-ray source and also the XRHV02-PS high voltage power supply, displaying both the high voltage and emission current on a single display. Unit allows measurement of working time and anode power. The X-ray source electronics set has both operational and standby modes, guaranteeing the most accurate and stable emission at the start of an experiment. Easy firmware update via USB port (XREC20-I). Unit can be remotely controlled via RS232/485 or Ethernet interfaces. Autosave function (XREC20-I unit) for saving your parameters/unit pre-set and applying them automatically after restart.

Technical data

Supply voltage 110 or 230 VAC, 50/60 Hz,
(power consumption max 1800 W)
Emission current range (Ie) 0 – 100 mA, accuracy 0.1 mA
Anode high voltage range (UHV) 0.5 kV – 15 kV, accuracy 0.1 kV
Cathode current (Icath) 3A in Standby mode
up to 20A in Operate mode
Anode power limit 650 W
Emission current ramp 0.1 – 50 mA/sec
High voltage ramp 1 – 1000 V/sec
Interlocks XR40B-EC High vacuum
Cooling water (master)
X-ray cover
Communication interface RS232/485, Ethernet
Communication protocol MODBUS-TCP
User interface XR40B-EC 7″ TFT display with touchscreen, digital encoder
Interface languages English, German, Polish
Dimensions XREC20-I 483 x 133 x 380 mm (W x H x D), 19″ rack mountable
Dimensions XRHV02-PS [mm] 483 x 88 x 420 (W x H x D), 19″ rack mountable
Weight (approx.) XR40B-EC 10 kg
XRHV02-PS
Supply voltage 85 – 260 VAC, 50-60 Hz,
Output voltage range Vo 0 – 15 kV
Output current range Io 0 – 100 mA
Max output power 1.5 kW
Polarity Negative
Remote control Via indirect coupled analogue I/O (male D-SUB 9)
set and monitor 0 – 5 V
Protection Over load and short circuit, voltage supply and temperature
Dimensions 483 × 88 × 420 mm (W×H×D), 19″ rack mountable
Weight (approx.) 6.5 kg
