X-ray Source Electronics Set XR40B

XR40B electronics set is used to control the X-ray source RS 40B1.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

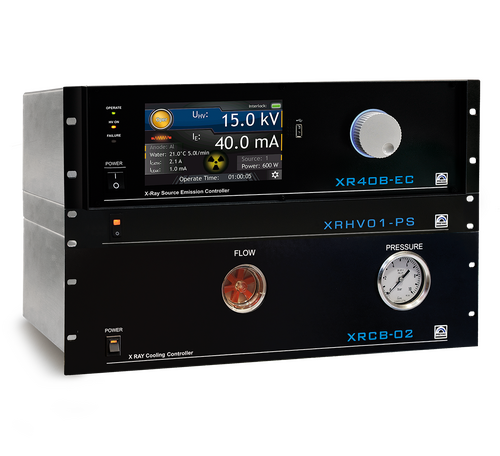

The XR40B set comprises 3 units for full control of the X-ray Source RS40B1.

They are:

- XR40B-EC Emission Controller
- XRHV01-PS High Voltage Power Supply

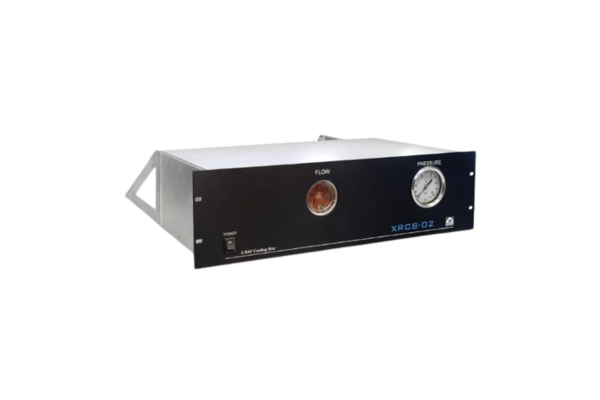

- XRCB-02 Cooling Box

The XR40B-EC unit controls the emission current of the X-ray source and also the XRHV01-PS high voltage power supply, displaying both, the high voltage and emission current, on a single display. The XR40B-EC displayed emission current is the exact emission current (corrected by the water leakage current of the cooling system). This combination allows very convenient and stable control of the X-ray source. The unit stores information about total anode working time and dissipated power. Communication with cooling box is via fibre optic wire. The XR40B set has both operational and standby modes, guaranteeing the most accurate and stable emission at the start of an experiment. The XRCB02 cooling box delivers water cooling safely and efficiently to the anode and to the housing. It is fully interlocked, monitoring water temperature, pressure and flow, so that the instrument can only operate if fully safe to do so. The cooling box can handle up to two X-ray sources. Autosave function (XR40B-EC unit) for saving your parameters/unit pre-set and applying them automatically after restart.

Note
If any interlock condition is not met, the source cannot be powered on. In addition to these three interlocked safety mechanisms, water leakage current is continuously monitored.

Technical data

Supply voltage
XR40B-EC
XRHV01-PS
XRCB02
100 – 240 VAC, 50/60 Hz
85 – 260 VAC, 50/60 Hz
230 VAC (with water pump)
110 VAC (with water pump)
110-240VAC (without water pump)
Emission current range (Ie) 0 – 50 mA, accuracy 0.1 mA
Anode high voltage range (UHV) 0.5 kV – 15 kV, accuracy 0.1 kV
Cathode current (Icath) output 1: 2.5 A
output 2: up to 6 A in operate mode
Anode power limit 750 W
Emission curent ramp 0.1 – 50 mA/sec
High voltage ramp 1 – 1000 V/sec
Interlocks XR40B-EC master, 2 X-ray cover, high vacuum, cooling water, remote
Water cooling XRCB02 max. 6 bar, 6 l/min.
prepared for de-ionized water
Communication interface RS232/485, Ethernet
Communication protocol MODBUS-TCP
User interface XR40B-EC 7″ TFT display with touchscreen, digital encoder
Interface languages English, German, Polish
Dimensions XR40B-EC 483 x 133 x 380 mm (W x H x D), 19″ rack mountable
Weight (approx.) XR40B-EC 7 kg
Dimensions XRHV01-PS 483 x 45 x 420 mm (W x H x D), 19″ rack mountable
Weight (approx.) XRHV01-PS 6.5 kg
Dimensions XRCB02 483 x 133 x 295 mm (W x H x D), 19′ rack mountable
Weight (approx.) XRCB-02 18 kg

Downloads

Brochures

Instruments with Electronics Brochure

View Brochure

Options

  • X-ray monochromator quartz crystal heating
  • Software control (Version Pro, Extended or Library Module)
