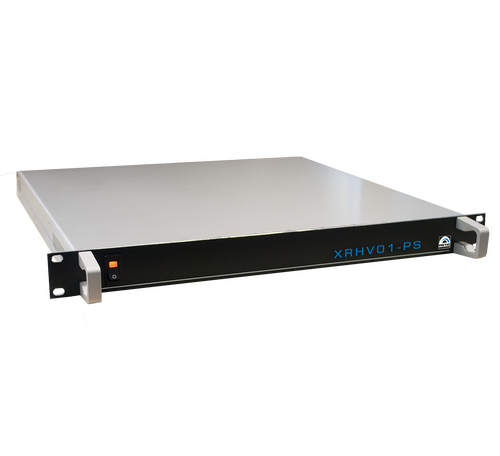

X-ray High Voltage Power Supply XRHV01-PS

X-ray High Voltage Power Supply XRHV01-PS

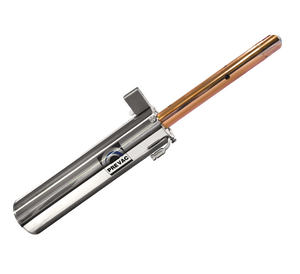

High voltage power supply for X-ray source RS 40B1.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

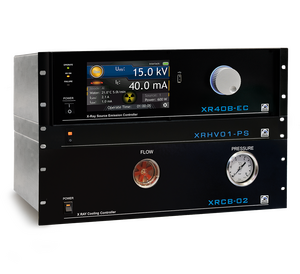

The XRHV01-PS unit provides a 0 to 15 kV output voltage and 800 W max. output power. The power supply is controlled via analogue I/O by XR40B-EC. The high voltage can be set via 0 – 5 V analog input,  corresponding to a monitored 0 – 15 kV output voltage. The current limit can be set via 0 – 5 V analog input corresponding to a monitored output current of 0 – 50 mA. The output is fully protected in case of either short or overload current. Full functionality only in connection with the Emission Controller XR40B-EC.

Technical data

Supply voltage 85 – 260 VAC, 50/60 Hz
Output voltage range (Vo) 0 – 15 kV
Output current range (Io) 0 – 50 mA
Max output power 800W
Voltage regulation <0.005%
Polarity positive
Remote control via indirect coupled analogue I/O (male D-SUB 9) | set and monitor 0 – 5V
Protection over load and short circuit, voltage supply and temperature
Dimensions 483 x 45 x 420 mm (W x H x D), 19″ rack mountable
Weight (approx.) 6.5 kg
