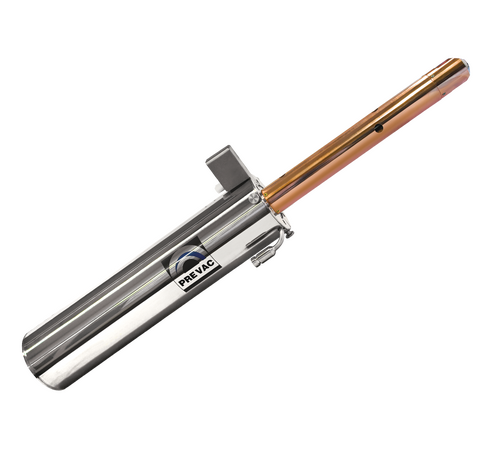

X-ray Source RS 40B1

High intensity twin anode Al/Mg source optimized for XPS and high pressure XPS experiments.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • High intensity twin anode Al / Mg
  • Specially configured nose cone
  • Very low cross-talk
  • Low magnetic field
  • Hermetically sealed housing
  • Efficient water-cooled inner housing in order to reduce thermal damage to the sample during operation
  • In-built double high voltage protection together with hermetically sealed housing
  • Able to work in high pressure experiments in the mbar range (option)
  • Able to work under full control with limited water flow

Description

Design of the anode, filament and source housing guarantees maximum X-Ray intensity and very low crosstalk between the anode faces. A specially configured nose cone allows maximum access to the sample. Twin anode used in standard source, allows for separated emission of two different characteristic X-radiation emission lines: Mg (1253 eV), Al (1487 eV) – other coating materials on request.

Technical data

Mounting flange DN 40CF (non-rotatable)
Anode Al/Mg (other materials on request)
Power Al 600 W / Mg 400 W
Energy range 7 – 15 keV
Cathode current (Icath) up to 2.5 A
Emission current range (Ie) 0 – 50 mA
Cross talk < 0.35 %
Magnetic field at sample below 0.5 μT
Increased sample temperature < 5 °C
Cathode type thoriated tungsten
Water cooling required, pressure 3.5 – 5 bar (max. 6 bar), flow ≥ 2.5 l/min., Tmax = 30 °C
Insertion length 285 mm; OD: 35 mm
FWHM dependent on working distance (e.g. 30 mm for distance 15 mm)
Typical working distance 5 – 30 mm (optimum 15 mm)
Bakeout temperature up to 250 °C
Working pressure < 5 x 10-6 mbar

Downloads

Brochures

Instruments with Electronics Brochure

View Brochure

Options

  • HP version, up to 20 mbar

  • Linear shift with tilt 50 – 100 mm (for HP X-ray source equipped with additional pumping port)

  • Chiller
