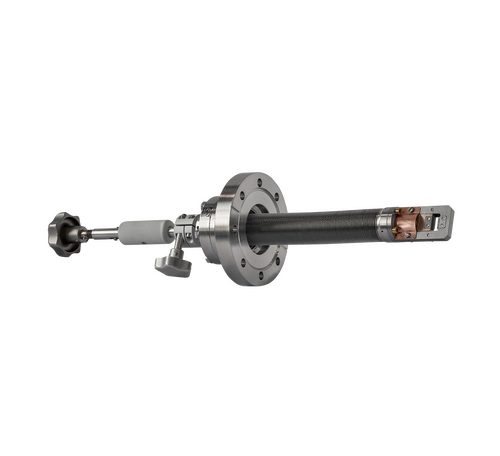

Wobble Sticks with Cleaver
3-axis manipulator dedicated to cut the sample in UHV chambers. It has interchangeable knives, fixed with four screws M3 and pressed using plates.
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Technical data
| Mounting flange | DN 63CF (other on request) |
| Z travel | 130 mm |
| R2 angular range | ± 7° |
| R3 angular range | ± 7° |
| Blade width | 12 mm |
| Bakeout temperature | up to 150 °C |
Downloads
Manipulators and Transferring Systems Brochure
