VMFM - Variable Magnetic Field Module

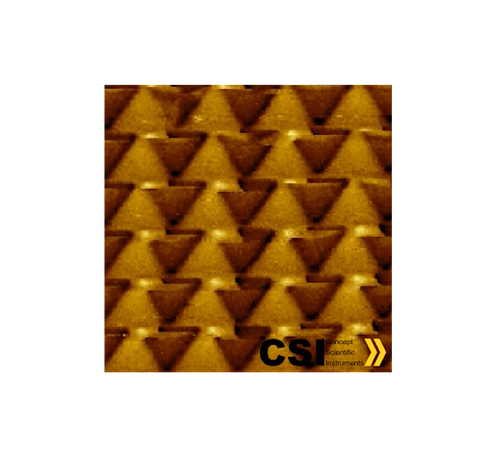

Variable Magnetic Field Module (VMFM) is the most advanced mode for magnetic characterisation in Atomic Force Microscopy. It combines Magnetic Force Microscopy (MFM) mode with an external in-plane magnetic generator so that dynamic characterisation like displacement of domain walls or rotation of magnetisation reversal can be mapped. The external magnetic field generator is based on two unbalanced magnetic rods that are rotated with a stepper motor, so that there is no induced heating by current flowing as in magnetic coil field setup.

Manufacturer

CSI

CSInstruments is a French scientific equipment manufacturer specialised in the conception of Atomic Force Microscope and options designed for existing AFM (Nano-Observer AFM, Resiscope™, High Voltage Amplifier, Magnetic modules). The product range proposed by CSInstruments is designed and manufactured to help the scientific community to achieve nanometre performances that meet the research needs and requirements for actual and future nanoscience applications.

CSInstruments was founded by a team of experts working in AFM field for more than 20 years, starting as pioneer with some historical manufacturers. CSInstruments activity is also based on a qualified and dynamic team, experienced in the fields of mechanics, electronics and data processing. This expertise ensures innovation and performance in the production of AFM and achieves an excellent price/performance ratio!

Product Videos

VMFM - Variable Magnetic Field Module

Key Features

  • In-situ magnetic field control
  • No induced heating of the sample
  • MFM measurement under magnetic field
  • In-plane magnetic field range: 0-3000Gauss
  • The most advanced mode for magnetic characterisation

Interests

Magnetic field on sample

  • MFM measurement under magnetic field
  • In-situ magnetic field control
  • In-plane magnetic field range: 0-3000Gauss
  • No heating of the sample

MLFM Mode Probes

  • MAGT
  • MAGT-HM
  • MAGT-LM

Industries

  • Materials Science
  • Life Sciences
  • Semiconductors and Electronics
  • Academics
  • Others (includes solar cells, geoscience, forensic science, and food technology)



Applications

Semiconductor

Data storage

Material science
