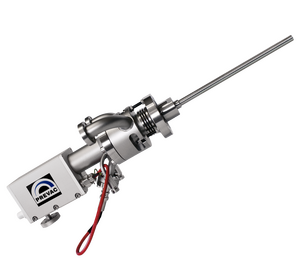

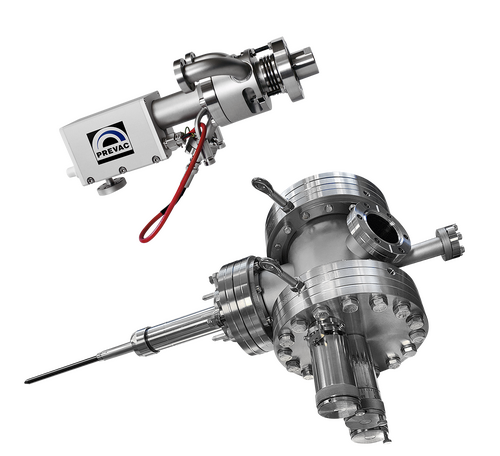

UV source with Monochromator

High-power, monochromatised UV source for the study of nanostructures.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • Manual or auto ignition
  • Easy operation
  • Stable output

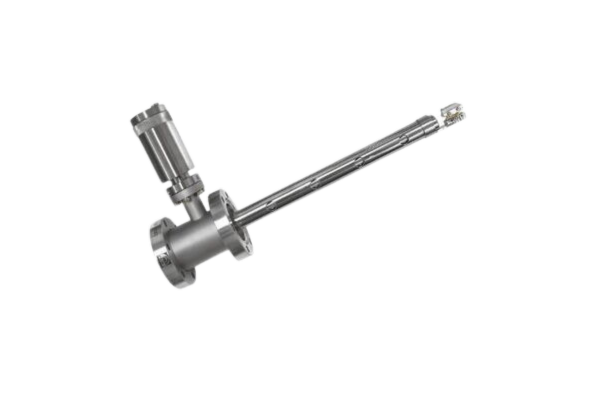

  • Retractable capillary arm

Description

High-power, monochromatised UV source for the study of nanostructures. This product uses Bragg diffraction to separate a narrow band of light wavelengths. During crystal rotation, the user can find four different wavelengths of beam transferred to the sample. This happens because each wavelength is reflected by crystal at different angles (Bragg reflection). ZERO ORDER beam is created when monochromator crystal works similar to a normal mirror – it reflects multiple wavelengths and gives highest intensitivity of transferred beam. That mode can be used when the user does not need monochromated beam, but high intensitivity of UV radiation.

Technical data

Mounting flange DN 40 CF (non-rotatable)
Photocurrent 1 – 12 nA
Discharge current 40 – 300 mA
Port aligner integral , +/- 4°
Retractable capillary – distance from focus point to port 350 mm
Capillary I.D. 1,5 mm (others on request)
Insertion length 345 mm with extended capillary
289 mm with inserted capillary
Typical working distance 5 mm
Bakeout temperature up to 150 °C
Working pressure < 1 mbar

Applications

  • Characterisation of the valence band dispersion
  • Fermi surfaces
  • Charge density wave gaps
  • Superconducting gaps
  • Spin density wave gaps
  • Electron-boson coupling
  • Heavy fermion hybridization gaps
  • Spin momentum locking
  • Surface state

Options

  • Gas dosing system
  • Differential pumping (required)
  • In situ UV polariser
  • Chiller
