UNECS Portable High-speed Spectroscopic Ellipsometer

UNECS Portable High-speed Spectroscopic Ellipsometer

With a compact size, low weight and ULVAC's ultra-fast measurement technology, the UNECS-Portable can be easily transported for quality assurance and acceptance testing applications. The ellipsometer's stage can be detached for measuring directly on large samples.

Manufacturer

ULVAC

ULVAC Technologies was established in 1992 as the US subsidiary of ULVAC, Inc. Headquartered in Methuen, Massachusetts, ULVAC Technologies provides Sales and Services to all countries in Western Hemisphere. In addition, this facility is equipped with a class-10 clean-room for process development, customer demonstration and manufacturing of the ENVIRO solvent-free dry photo resist stripper and Compound Semiconductor Materials Etch Systems. Other in-house services include Foundry Etch (for Deep Oxide and Compound Semiconductor materials), Thermal Processing, Materials Characterisation, and Vacuum Pump/Leak Detector Repair.

Key Features

  • Low Weight & Compact Size
  • Detachable Stage for Direct Measurement
  • Ultra-Fast Measuremen
  • Robust & Reliable Design
  • Low Maintenance
  • Multiple Wavelength Range Options

Ultra-Fast Spectroscope Ellipsometry

ULVAC have taken ellipsometry to the next level with a unique snapshot technique for measurement. The UNECS range provides high speed, accurate and repeatable measurements in a compact and affordable form. UNECS ellipsometers measure as fast as 20ms per point. ULVAC's snapshot technology is also highly reliable and low maintenance, contain fewer moving or consumable parts than conventional systems.

Portable Ellipsometry

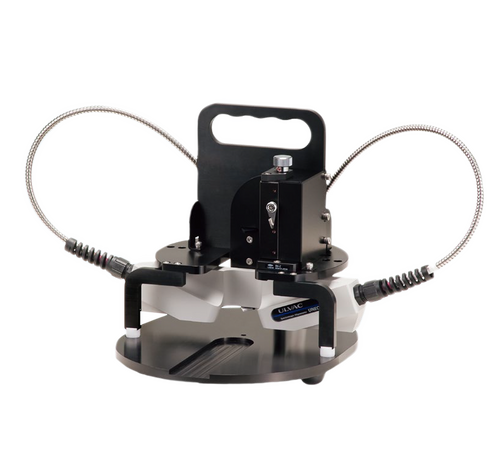

The UNECS Portable weighs only 2.2 kg, and has a compact form factor with integrated carry handle. For use on large or oversize samples, the ellipsometer's stage can be detached, allowing measurements to be taken directly on the sample's surface.

Measurement is ultra-fast, as low as 20ms per point. There are 2 supported spectral ranges, the standard 530nm to 750nm and a visible wavelength spectral range between 380nm to 760nm.

ULVAC's unique snapshot measurement technology is robust and reliable, and easy to maintain. The measurement system contains no moving parts, and only a single consumable part, the halogen bulb light source. This makes the UNECS Portable a dependable mobile solution in demanding environments.

Downloads

Brochures

High-speed Spectroscopic Ellipsometer [ENECS Series] Brochure

View Brochure

Service Support

Comprehensive repairs and servicing

Annual Support Programs

Your metrology instrumentation is a major investment that is critical to your business operation and success. In today’s competitive climate, it is more important than ever to extend the functionality and peak performance of your metrology equipment years beyond the expiration of your factory warranty. CN Tech’s Support Programs will help ensure that your investment is protected, and that you and your instrument’s are always operating at peak performance.

With over 20 years’ experience servicing and repairing you can be assured that your system is in safe hands. The independent services we offer include system relocation, maintenance visits, parts and consumables, and break down interventions.

CN Tech’s Support Programs are an economical way to guarantee optimal working condition:

  • Annual Preventive Maintenance
  • Priority Technical Assistance
  • Preferred Parts Availability
  • On-Site User Training
  • Remote Diagnostics
  • No surprise repair expense and much more!

Support Contact Example

An example of our service and support contracts are shown below:
