Tungsten Carbide Tool

Multi-purpose hard metal probes suitable for poking, breaking in between substances, cutting, scraping, marking, and more.

Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Product Videos

Tungsten Carbide Tool Video 1

Tungsten Carbide Tool Video 2

Key Features

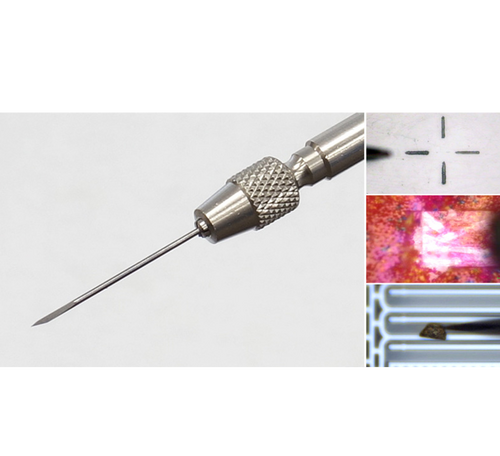

  • Multi-purpose hard metal probes suitable for poking, breaking in between substances, cutting, scraping, marking, and more. It is available in various shapes e.g., probe, knife, scraper, and fork
  • 5μm probes allow for precise cutting of hard materials like metal, silicone wafers, and glass, as well as marking targets before FIB processing
  • Micro-peelers, with their sculpting knife-like tips, offer a wide range of material compatibility, suitable for flat-surface cutting of polymer like high-barrier films, as well as removing small embedded particles, eliminating micro-protrusions, pinpoint cutting of IC bonding wires, and cutting tiny wires
  • Knife-edged probes are effective for collecting foreign substances embedded in tablets and extracting foreign objects buried in non-ferrous metals, hard plastics, etc. It can also be used for ultra-fine marking

Product Information

  • Marking on hard material possible to mark <5μm line width
  • Marking on PE resin sheet
  • Cut and explore embedded foreign substances in resin e.g., ~5μm foreign substance
  • Surface condition check of specific areas e.g., determine hardness, presence on the surface or embedded
  • Removal of inconvenient surrounding protrusions in ATR measurements. Target marking of FIB processing areas e.g when laser markers are unavailable.
  • Marking on metals, silicone wafers, glass, etc. (with intervals of ≥3μm)
  • Removal and repair of foreign substances adhered to or embedded in the surface of electronic devices (≥5μm).
  • Isolation of foreign substances that have infiltrated flexible substrates
  • Incremental scraping while observing protrusions (approximately 10-100μm).

Lineup Tungsten Probes (variation)

Probes, tip diameter 5μm (5pcs) CP-005 Marking of a hard sample, etc
Micro Peelers (3pcs) MPE-1 for cutting material such as resin and glass, etc
Micro Peelers-Medium (3pcs) MPE-2 For ≮5μm substances
Micro Peelers-Large (3pcs) MPE-4 for cutting materials such as resin and glass (can use for manual manipulation)
Micro Peelers Set, MPE-1/2/4, each 1pc (3pcs) MPE-SET Micro Peelers(MPE-1/2/4) each 1pc
<Knife Edges (3pcs) KE-1 for pinpoint cutting of resin, etc
Knife Edges S (3pcs) KE-2 for pinpoint cutting of resin, etc
Hard Tools Set (3pcs) HT-SET Probes(CP-005),
Knife Edges(KE-1),
Micro Peelers(MPE-1)
each 1pcs
Microfork (2pcs) MF-1 for marking

Line-up

For manual manipulation TPH-3
Pin-vice type TPH-10 Use for manipulator

Applications

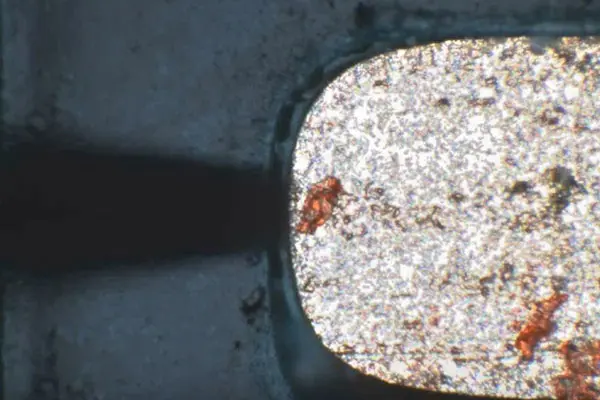

Terminal of printed circuit board

Foreign objects can be sampled by scraping or shaving only the adhered foreign substances without destroying the base material

  • Sample:Terminal of printed circuit board
  • Tool:Micro Peeler
  • Application:Capture foreign particles from the surface of an electric pa

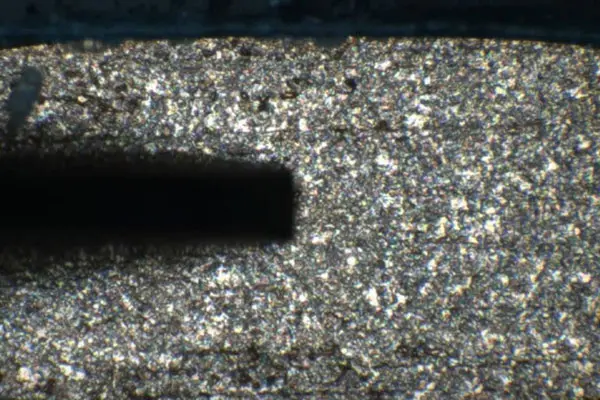

End terminal of printed board

Axis Pro is applicable for deburr without making any damages on the base material

  • Sample:End terminal of printed board
  • Tool:Micro Peeler
  • Application:A few micro level deburr

Borosilicate glass

Precise surface marking on hard materials, including glass, silicon wafers, and metals facilitated by hard metal tools

  • Sample:Borosilicate glass
  • Tool:Hard-Metal Tool
  • Application:Marking on hard materials

Surface of a glass plate

Hard metal tools are available to make microscopic markings on hard materials such as metal

  • Sample:Surface of a glass plate
  • Tool:Hard-Metal Tool
  • Application:Marking on a glass surface
