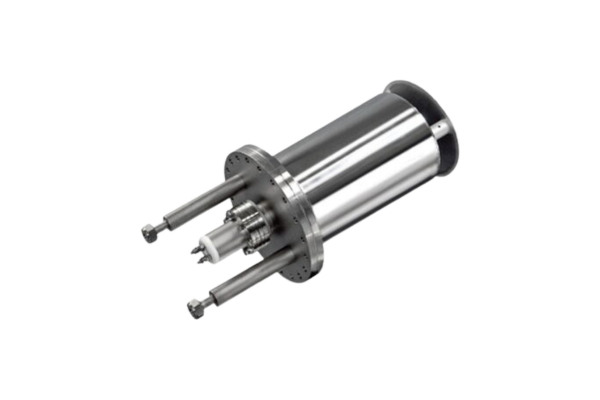

Titanium Sublimation Pump
The Titanium Sublimation Pump (TSP) is a true UHV pump.
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Description
The main advantage of this pump is that it is simple, inexpensive and can produce high pumping speeds. The TSP consists of 3 removable hairpin shaped filaments. They are made from an alloy of Titanium and Molybdenum and are mounted in a simple carrier designed to have low electrical resistance. A high current, from an external power supply, is passed through the filament so that it glows red hot. At this temperature, titanium is sublimated directly from the filament. and then the evaporant coats the nearby walls of the chamber.
- To increase pumping speed the TSP can be equipped with a Liquid Nitrogen Shield
- Available in versions to work in different orientation
