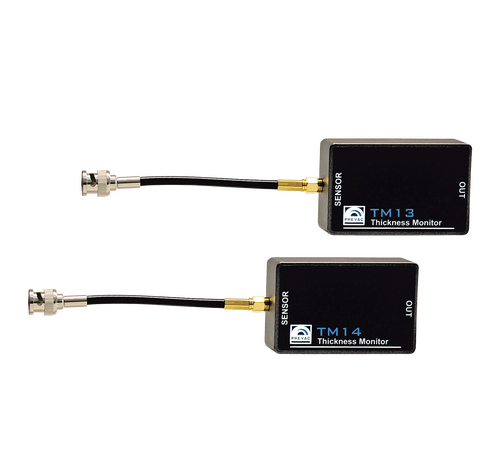

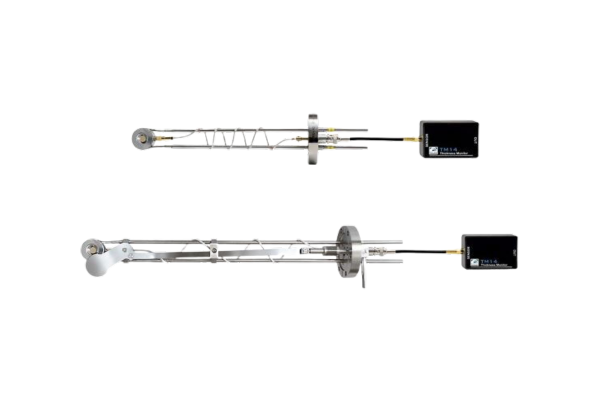

Thickness Monitors TM13 & TM14

The TM13 and TM14 devices comprise: quartz oscillator, frequency measuring system and communication interface.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

It is connected to the input element of a quartz resonator. The measurement results are transmitted via RS232 to the master device: either a PC or TMC13 controller. Remote control via TMC13 controller or PC. Available software dedicated for precise rate measurements. Registers changes in the frequency of the quartz resonator in time (in the form of a graph). Allows the user to calculate the evaporation rate from the selected time interval. Suitable for MBE applications.

Features

TM13

  • Frequency Resolution: 0.1 Hz
  • Number of measurements per second: 4 (fixed)
  • Maximum frequency of quartz oscillator: 6 MHz
  • Stability: 0.5 ppm

TM14

  • Frequency Resolution: 0.01 Hz
  • Number of measurements per second: 0.5, 1, 2, 4, 10 (selectable)
  • Maximum frequency of quartz oscillator: 6 MHz
  • Stability: 0.5 ppm

Technical data

Power supply 5V DC
Current consumption max 500 mA
TM13 TM14
Thickness resolution 0.1 Å 0.01 Å
Rate resolution 0.1 Å/s 0.01 Å/s
Frequency resolution 0.1 Hz 0.01 Hz
Frequency stability 0.5 ppm 0.5 ppm
Number of measurements per second 4 0.5; 1; 2; 4; 10
(selectable)
Communication Interface RS232
Dimensions [mm] 80.0 x 50.0 x 27.0 mm (W x H x D)
Weight (approx.) 0.1 kg
