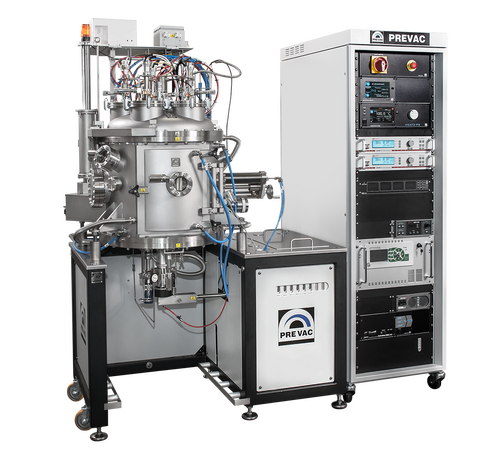

Standard MS Systems
The magnetron sputtering system’s stand-alone configurations with our field-proven standard solutions make the deposition process facile, efficient, and dependable.
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Key Features
- Stand-alone HV/UHV system comprising high quality and high usability solutions for sputtering processes
- Ideally suited for depositing metal and dielectric thin films
- The standard size of the process chamber: Ø 570 mm
- Example configuration of source ports for the main chamber: 6 x DN100CF ports for 2″ magnetrons or 10 x DN63CF (5 magnetron work at the same time), or 5 x DN 160 ISO-K ports for 3″ magnetrons
- Base pressure range from 10-7 mbar to UHV
- 2-axes manipulator with stable, long-life heater element made of solid SiC and receiving station to achieve high temperatures up to 1200 °C
- A wide range of substrate holders size (from 10×10 mm to 6 inches, others on request) and shape
- Sputter-up and sputter-down arrangements are available
- Operated in DC, RF and pulsed-DC modes
- Ar gas automatic dosing by mass flow control
- Possibility for in situ characterisation tools, e.g. plasma emission monitor (PEM), ellipsometer, reflectometer, quartz balance or pyrometer temperature measurement system
- Multiple sources supplied with a single power supply and switching networks, or with multiple supplies for co-deposition processing
- Front door access and/or Load Lock chamber for fast & easy substrate loading
- The bottom flange with sources can be fully accessed or replaced using the dedicated lifting trolley
- 19“ cabinet with electronic units
- Synthesium software for full control over the deposition process & equipment
Description
Depending on your needs, our Standard MS Systems offer the flexibility of several sputter deposition techniques in a single chamber. Each system features a universal mounting flange that can be configured for magnetron sputtering deposition (with sputter-down or sputter-up configuration) or a combination of any other thin film deposition techniques. That makes PREVAC Standard MS Systems a versatile, powerful, and simple unit to fulfil most demands in the field of surface science coating.
One of the main advantages of the system is easy access to the process chamber, which can be done through the front door, the automatically lifted-up top flange, or through the bottom flange, exchangeable using a specially designed trolley. Therefore, changing the magnetron targets, the substrate holder manipulator, or accessing/replacing the whole bottom flange can be done easily and quickly. The lifting mechanism of the top flange is motorised and fully protected with sensors.
The final design and functionality depend on the system configuration.
The systems are configured with appropriate sealing and pumping systems to achieve the base vacuum in the range of 10-7 mbar (with viton sealed door), 5×10-8 mbar (with viton sealed and differentially pumped door), or UHV pressures (without a door, with fast entry load lock for substrate introducing).
The process chamber is equipped with connecting flanges in UHV standard in different sizes for connecting current and future equipment, including:
- Magnetron sources
- Substrate manipulator
- Ion source for cleaning, etching or activating the surface of the substrate
- Pumping system
- Entry port for the linear transferring system or transport box
- Gas dosing system: process gas up to 4 lines, and mass flow control for up to 4 gases
- Motorised or manual shutter (following the substrate) for vicinal layers or masks
- Residual gas analyser
- Quartz balances
- Pyrometers
- Ellipsometer with the detector
- Viewports (observation windows with shutters)
- Vacuum gauges
A pumping system is a combination of different types of pumps, e.g. forevacuum pumps, ion pumps, cryo-pumps, turbo pumps, or titanium sublimation pumps, individually selected to achieve the best pumping performance according to specific application demands.
If needed, the modular design of the system allows combining and integration with any other research platform via radial distribution transferring solution or transferring tunnel.
Synthesium process control software allows integration and perfect cooperation of sources of various types and manufacturers and enables easy recipe writing, automated growth control and extensive data recording. Allows integrating new additional components based on Tango open source device.
The system is equipped with advanced, easy-to-use power supplies and electronic devices controlling and supporting the sources and the whole included research equipment.
Applications
| Applications | Examples |
| Single and multilayer conductor films (for microelectronics and semiconductor devices) | Al, Mo, Mo/Au, Ta, Ta/Au |
| Barrier layers for semiconductor metallizations | TiN, W-Ti |
| Magnetics films | Fe, Co, Ni, Fe-Al-Si, Co-Nb-Zr, Co-Cr, Fe-Ni-Cr, Fe-Si, Co-Ni-Cr, Co-Ni-Si |
| Optical coatings – metallic (reflective) | Cr, Al, Ag |
| Optical coatings – dielectric | MgO, TiO2, ZrO2 |
| Photomasks | Cr, Mo, W |
| Transparent gas/vapor permeation barriers | Al2O3 |
| Transparent electrical conductors | InO2, SnO2,In-Sn-O (ITO) |
Options
A range of ancillary equipment for streamlining the sputtering process is available:
- Pyrometer – digital pyrometers are used for non-contact, point-shaped temperature measurements in a wide range
- Ellipsometer – analyzes reflected light to determine the thickness and refractive index of dielectrics, semiconductors, and thin metal films. It uses light reflected off the film at a low incident angle
- Reflectometer – a non-invasive tool for fast, real-time measurements of deposition rates, film thickness, layers uniformity, and optical constants by spectral reflectance system
- Plasma emission monitor (PEM) – optical emission spectroscopy technique for real-time plasma monitoring without affecting it
- Water cooling shroud – as an option the chamber can be equipped with an H2O shroud when there is a necessity to decrease components/process temperature
- Shield protection against cross-contamination
- Motorised or manual shutter (following the substrate) for vicinal layers or masks
- Additional gas dosing eg. for the reactive sputtering process
- Heated viewports for diagnostic devices
- RF BIAS for the manipulator
- Glovebox
