Slit Unit Manipulators
Single-axis manipulators for adjusting the shape of the cross-sectional area of the synchrotron beam.

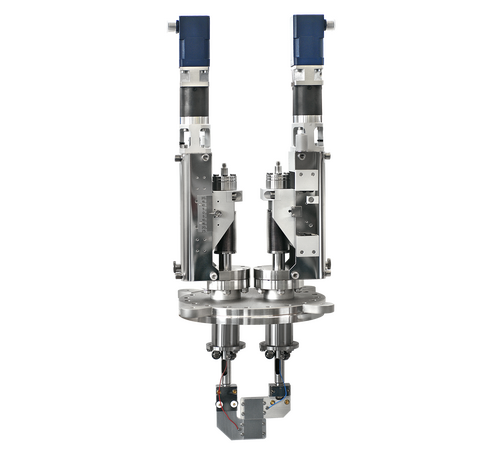

Horizontal and vertical shutters, positioned inside the vacuum chamber, are translated via a single-axis manipulator in order to adjust the shape of the cross-sectional area of the beam. All manipulators are motorised and software controlled. Shutters are available with or without water cooling. Surfaces can be coated with a fluorescent material. Different materials and shapes are available according to requirements.
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Technical data
Slit unit manipulators kinematic data |
|||
| Manipulator | Axis | Range | Resolution |
| Photodiode | Z | ± 25 mm | ≤ 10 μm |
| HES shutter | Z | ± 6 mm | ≤ 0.5 μm |
| VES shutter | Z | ± 0.5 mm | ≤ 0.5 μm |
| Chamber shift along the beamline | Z | ± 100 mm | ≤ 50 μm |
