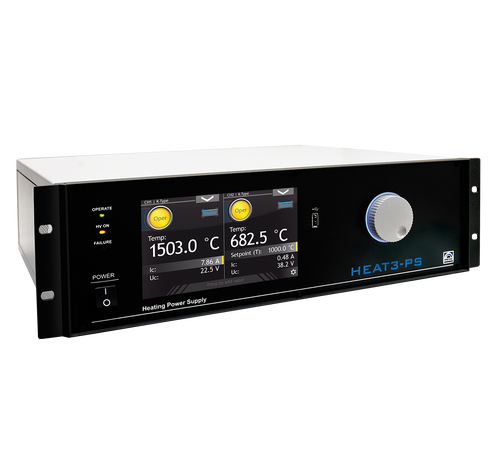

Sample Heating Power Supply HEAT3-PS

Power supply operated by touchscreen with dual mode heating (resistive and electron bombardment) and high efficiency.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • Dual heating mode: resistive and electron bombardment
  • Wide range temperature measurement (1.4-2473.15K)
  • 2D real time chart module
  • Shutter Control – up to 2 shutters for double DC module version, 1 shutter per channel (eg. shutters of sources or manipulators)
  • High efficiency
  • Setpoint based over-voltage and over-current output protection
  • Fully manual or PID temperature controlled (by setpoint and ramp)
  • Process temperature control with built-in PID controller (with auto tuning function for optimised process PID parameters)
  • Various kind of temperature sensors: thermocouples K/C/E/N (other on request), Pt, diode
  • Multiple I/O (10 digital/4 analogue) – individual reprogrammable
  • High resolution (16-bit analogue I/O, 0.1 K temp.)
  • One vacuum channel for active gauges
  • Mobile solutions for remote access and control
  • Customised menu options (for robust and effectivity)
  • Support (easy firmware update via USB)
  • Autosave function

Description

The power supply can also be used for effusion cell evaporators. The unit is equipped with a PID temperature controller. Ramp heating function control sample temperature to protect sample from damage. Sample overheating can also be protected by setting the voltage and current limits. The unit can be operated in auto mode (with temperature control) or manual mode (without temperature control).

Technical data

Supply voltage 100-130 VAC/200-260 VAC, 50-60 Hz (power consumption max 1600 W)
Resistance heating mode parameters 45 V, 17 A – standard; other versions on request
Electron bombardment mode parameters 1000 V, 300 mA – standard, other versions on request
Temperature range 273.15 K-2473.15 K for type C thermocouple
(dependent on sample holder type or evaporator)
73.15 K-1645.15 K for type K thermocouple
1.4-500 K for DT670/DT470 silicon diodes
(dependent on sample holder type and conditions in chamber)
Temperature independent input 2 – for thermocouples K/C/E/N
2 – for silicone diodes DT670/DT470
Temperature setpoint ramp rate adjustable from 0.1° to 1000°/ s/min/h
ΔT setpoint 0.1 to 5.0°/s
Vacuum measurement (optional) CTR90, TTR91, TTR211, PTR225, PTR90, ITR90, ITR100, Baratron, ANALOG IN, MKS937A, PG105, MG13/14, PKR251/360/361, PCR280, ATMION
Communication interface RS232/485, Ethernet
Communication protocol MODBUS-TCP
User interface 7″ TFT display with touchscreen, digital encoder
Interface languages English, German, Polish
Dimensions [mm] 448.8 x 132.5 x 375 mm (W x H x D), 19″ rack mountable
Weight (approx.) 8.8 kg (for standard version)

Applications

  • Any thermal process according to the specifications
  • Effusion cells supply
  • Sample holders heatings
  • Thermal monitoring
