The ResiScope II is a unique system capable of measuring AFM resistance over 10 decades with a high sensitivity and resolution. It can be combined with several dynamic modes as MFM/EFM (AC/MAC mode) or KFM single‐pass (AC/MAC III) providing several sample characterisation on the same scan area.

Manufacturer

CSI

CSInstruments is a French scientific equipment manufacturer specialised in the conception of Atomic Force Microscope and options designed for existing AFM (Nano-Observer AFM, Resiscope™, High Voltage Amplifier, Magnetic modules). The product range proposed by CSInstruments is designed and manufactured to help the scientific community to achieve nanometre performances that meet the research needs and requirements for actual and future nanoscience applications.

CSInstruments was founded by a team of experts working in AFM field for more than 20 years, starting as pioneer with some historical manufacturers. CSInstruments activity is also based on a qualified and dynamic team, experienced in the fields of mechanics, electronics and data processing. This expertise ensures innovation and performance in the production of AFM and achieves an excellent price/performance ratio!

Product Videos

Key Features

  • Dual measurement system
  • Easy to use intuitive software
  • High sensitivity and resolution
  • Measure AFM resistance over 10 decades
  • Can be combined with several dynamic modes

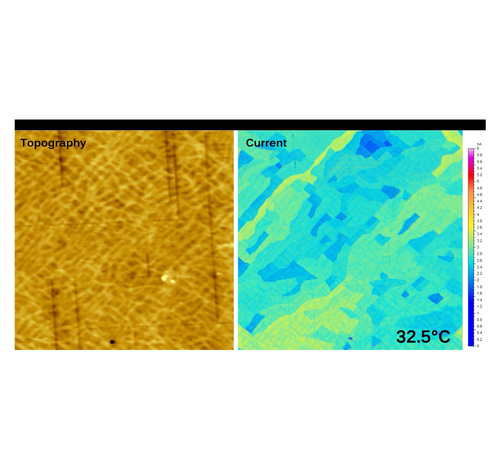

A dual measurement system

  • Resistance Measurement
  • Current measurement (& IV spectroscopy)
  • Compatible with Oscillating mode (Tapping / AC mode )
  • Compatible with EFM/MFM or Single-pass KFM
  • Resistance 102 ohms to 1012 ohms (10 decades dynamic)
  • Output information : R, Log R, Current & I/V Spectroscopy

Intuitive software

  • Easy to use
  • Automatic mode selection
  • Configurable outputs
  • Selectable output scale : R | Log R | Current

Principle

During the measurement, the DSP chooses in real time the best gain to optimize the measurement made by the amplifier module (HPA). This operating condition allows a very high sensitivity on all the range of resistivity at a regular scan speed (AFM) . Contrary to other techniques, the current between the probe and the sample is strongly reduced. This has the result of limiting the local effect of oxidation or electrochemistry and protecting the conductive probe from high current damage.

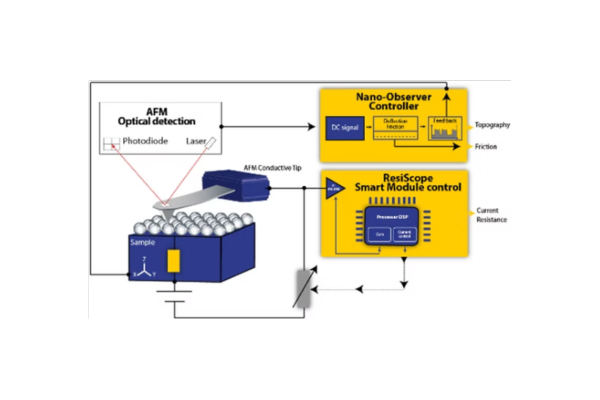

Image: ResiScope is a smart real-time control of the appropriate ranges to obtain the best measurement (sensitivity and range). It limits the current through tip and sample is limited to prevent any damage. It is more than a simple linear or Log amplifier used for a basic current measurement
