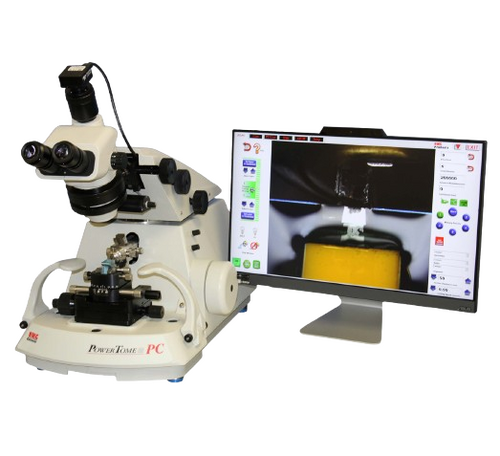

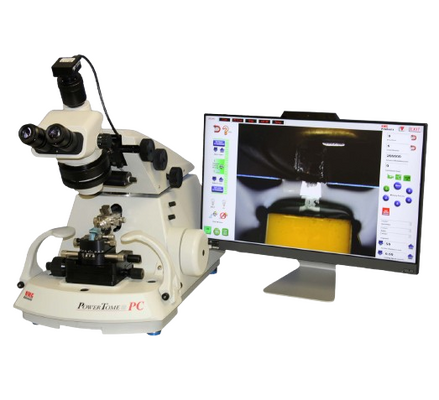

PTPCZ: PowerTome with High Definition Video & Real-Time Display
The PTPCZ features a high-definition video package where the sectioning process is displayed in real-time at the centre of the computer monitor. Equipped with a computer control interface, the PTPCZ enables the viewing and recording of the sectioning process in full HD for future viewing and use.
Manufacturer
RMC Boeckeler
Boeckeler Instruments engineers sample preparation equipment for nanoscale research, under the RMC Boeckeler product line. Their solutions are employed in both life sciences and materials research, with special emphasis in sample preparation for 3D electron microscopy.
Key Features
- Produce high quality semi and ultra-thin sections for TEM, SEM, block facing for AFM, TOFSIMS, LM, and CEMOVIS
- Hybrid control system includes touch screen monitor with Visutrac™ cutting zone control, plus digital tactile controller
- High-definition video package showing work area with built-in video measuring system
- Record & save video clips & still images
- Built-in report generator, database, & diagnostic routines for automatic documentation of sectioning parameters
- Ergonomic stereo microscope system with unique lateral viewing control
- Four types of LED illumination are provided (all are independently adjustable): Overhead bright diffuse LED illumination, Backlighting for careful approach of the knife to the specimen, Transillumination through the specimen holder for viewing details of the specimen within the block.
- Patented Power Drive cutting stroke for large blocks & hard materials
- Electronic step advance for final specimen approach to the knife edge
- High stability mechanical advance system for reproducible section thickness
- Built-in calibration & service diagnostics instantly confirm functionality & simplify maintenance procedures
Specifications
| Specimen auto feed | 0.2mm (200 µm; 200,000 nm) |
| Section thickness | 0nm to 15µm |
| Cutting speed | 0.1 to 100mm/sec in 0.1mm/sec increments |
| Knife stage movement | 50mm gross advance, 25mm E-W travel, 12mm N-S advance |
Applications
Materials Research
Life Science
Forensic Science
Quality Control
Failure Analysis
Downloads
PTPCZ Datasheet
Powertome Series Comparison Sheet
Options
AmbiTome
Precision Sectioning with Dual Handwheel Feature!
The world’s first dual-handwheel ultramicrotome, designed to accommodate both right- and left-handed users. Allowing researchers to operate the machine with their preferred hand, freeing up the other for more intricate section manipulation, the Ambitome is the ideal solution for those who need more control than what a single-hand system offers.
The Ambitome enhances adaptability, precision, and ease at every stage of the sectioning process.
