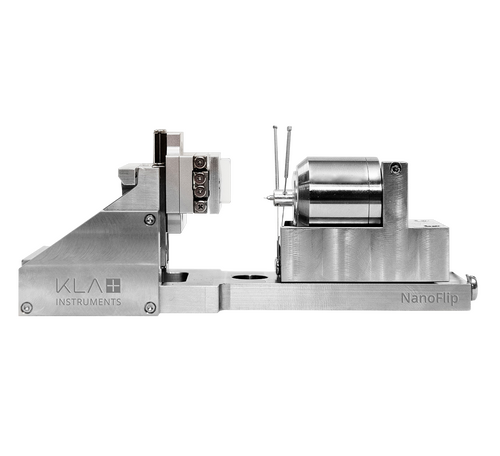

NanoFlip® Nanoindenter

High accuracy, high speed nano indentation in-situ in vacuum environments. Perform nanomechanical testing inside a SEM chamber, and synchronise SEM imaging with mechanical property data. Custom experiments can be easily configured. The suite of options available, such as the InForce50 electromagnetic actuator, combine to deliver quantitative results that lead to valuable solutions in material research.

Key Features

  • Large suite of pre-programmed nanomechanical test methods for improved ease-of-use
  • InForce 50 actuator for capacitance displacement measurement and electromagnetic force actuation with interchangeable tips
  • InQuest high-speed controller electronics with 100kHz data acquisition rate and 20µs time constant
  • XYZ motion system for sample targeting
  • SEM video capture for synchronized SEM images with test data
  • Unique software-integrated tip-calibration system for fast, accurate tip calibration
  • InView control and data review software with Windows ®10 compatibility and method developer for user-designed experiments

Manufacturer

KLA

A global technology leader who make an impact by creating solutions that drive progress and transform industries. Collaboration is the key to their success. KLA provide leading-edge technology and devices using advanced inspection tools, metrology systems, and computational analytics. Their solutions accelerate tomorrow’s electronic devices. They enable evolution and innovation in the data era across key industries including automotive, mobile and data centre.

Flexible In-Situ Nano Indentation

The KLA NanoFlip is a flexible and expandable platform for performing nanomechanical testing in-situ with a variety of imaging instruments. The NanoFlip’s sample stage features a “flip” mechanism, which rotates the sample, allowing for direct imaging of the surface, or indentation of the surface. When indenting, the indenter and surface remain visible, allowing for indenter and sample interactions to be viewed in real time.

The NanoFlip can be used in-situ inside a wide range of imaging instruments. Optical profilers and optical microscopes, SEM and FIB systems, AFM systems, Raman Spectroscopy, and other instruments are all supported. The NanoFlip can also be used standalone inside a glove box or vacuum chamber for sensitive samples requiring a controlled environment.

Simplified Operation with Synchronised Imaging

KLA are making nanomechanical testing simple and easy with the InView software package. InView provides a modern and flexible interface for interacting with nano indentation systems. A guided setup is provided, which allows even novice users to configure mechanical tests in under a minute. A wide range of mechanical test methods are included out of the box. Custom test protocols can also be configured.

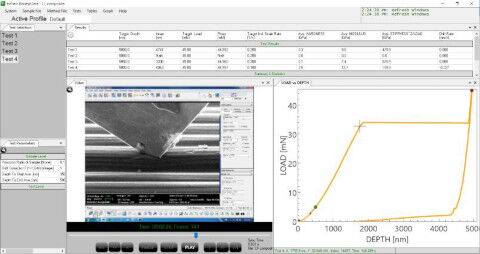

InView allows imaging to be synchronised with mechanical test data in real time. Live imaging from a SEM or other instrument is displayed side by side with testing data as it is recorded. This provide greater level of insight into the interactions of the indentation tip and sample material.

A Complete Range of Mechanical Tests

To suit the widest range of applications, the NanoFlip platform is capable of a multitude of mechanical test types. The NanoFlip can perform hardness and modulus testing (Oliver-Pharr) on many materials, including very soft samples. ISO 14577 hardness testing is included as standard. For material characterisation, scratch and wear testing is also possible, and supports many materials, including thin films, brittle ceramics, and polymers.

A variety of advanced testing modes are also available. These include Continuous Stiffness Measurement (CSM), AccuFilm™ thin film measurement with substate-independence, and ProbeDMA™ for testing viscoelastic properties of polymers.

Designed for Accuracy & Efficiency

The NanoFlip is a quick and accurate solution for in-situ nano indentation. The InForce actuators developed by KLA use electromagnetic force actuation and capacitance displacement technology. By decoupling the force actuation and displacement measurement, it is possible to independently optimise them and maximise performance. KLA’s InForce actuators have a high stiffness and maximised vertical stability, and offer the highest calibration stability available.

The NanoFlip’s stage has a high frame stiffness, concentrating deformation in the sample, and thus improving accuracy and resolution. High precision linear optical encoders on the sample stage allow for precise sample targeting.

Map Nanomechanical Properties with NanoBlitz 3D & NanoBlitz 4D

NanoBlitz 3D creates 3D nanomechanical property maps. Utilising the NanoFlip’s high-precision XY stage, NanoBlitz 3D generates an array of up to 100,000 indents on an area of a sample. For each indent Young’s modulus, hardness, and stiffness values are recorded. A 3D mechanical property map can then be created, providing a visualisation of surface mechanical properties. NanoBlitz 3D is fast, performing stage movement and indentation in less than a second for each indent.

By combining the 3D concept with the NanoFlip’s Continuous Stiffness Measurement (CSM) capability, NanoBlitz 4D provides mechanical property tomography. An array of up to 10,000 indents are performed, at 5 to 10 seconds per indent, recording Young’s modulus, hardness, and stiffness values for each as function of depth. Property maps can then be visualised at different depths.

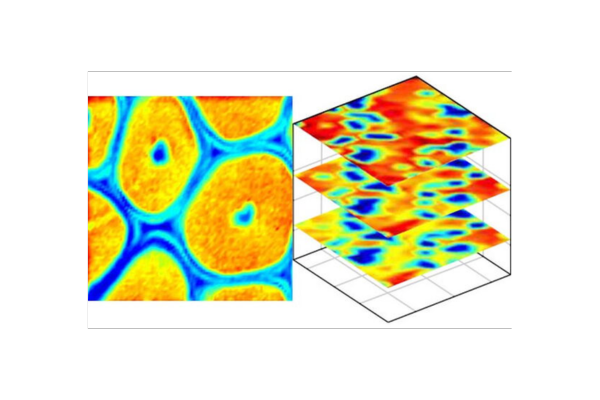

Shown Left: NanoBlitz 3D image showing stiffness mapping
Shown Right: NanoBlitz 4D mapping at two different depths

Industries

  • Universities, research labs and institutes
  • Pillar and microsphere manufacturing
  • MEMS: Micro-electro-mechanical systems
  • Materials manufacturing (structure compression/tensile/fracture testing)
  • Battery and component manufacturing

Applications

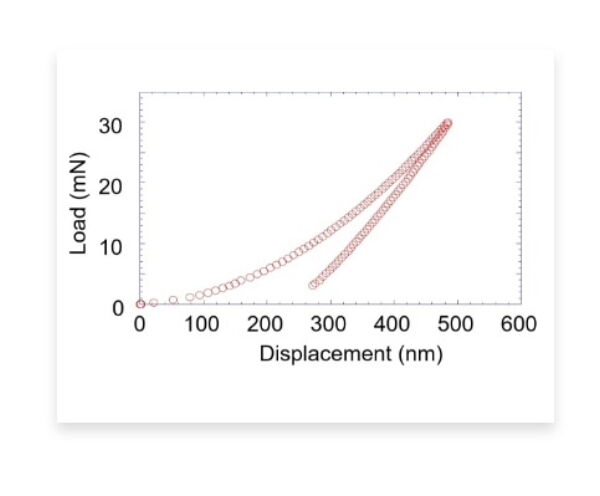

Hardness and modulus measurements (Oliver-Pharr)

The NanoFlip nanoindenter measures hardness and modulus for a wide variety of materials, from ultra-soft gels to hard coatings. The high throughput assessment of these properties enables quality control and assurance on production lines.

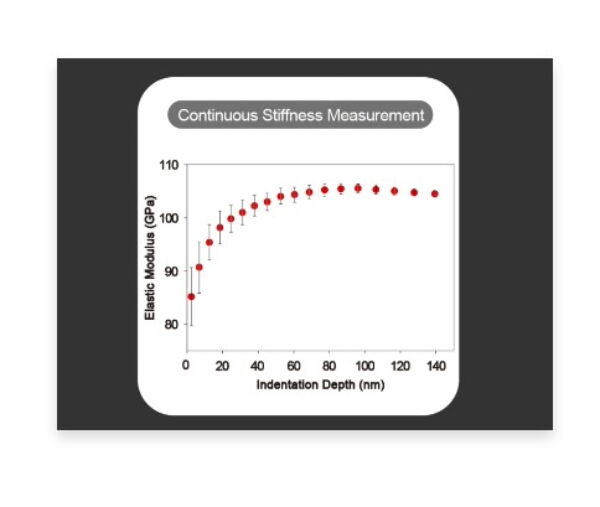

Continuous stiffness measurement

Continuous stiffness measurement is used to quantify dynamic material properties, such as strain rate and frequency-induced effects. The NanoFlip nanoindenter provides dynamic excitation from 0.1Hz to 1kHz, enabling time-based monitoring for accurate determination of initial surface contact and continuous measurement of contact stiffness as a function of depth or frequency.

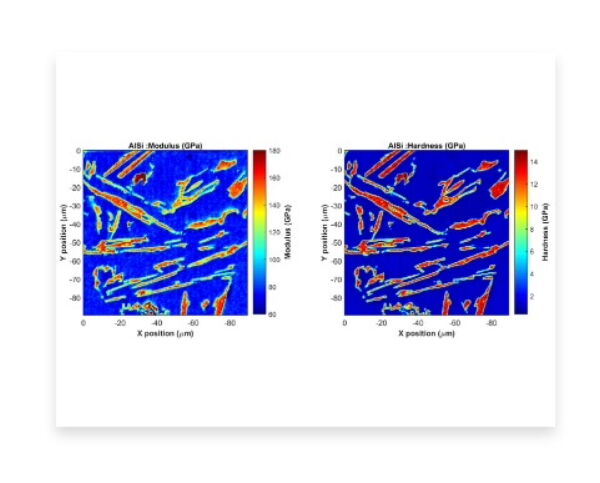

High speed material property maps

For composite materials, the mechanical properties may vary widely from one area to the next. NanoFlip provides a sample stage movement of 21mm in the X and Y axes, and 25mm in the Z axis, allowing in situ mechanical testing of a wide range of sample heights over a sample area. The optional NanoBlitz Topography and Tomography software can quickly generate colour maps of any of the measured mechanical properties.

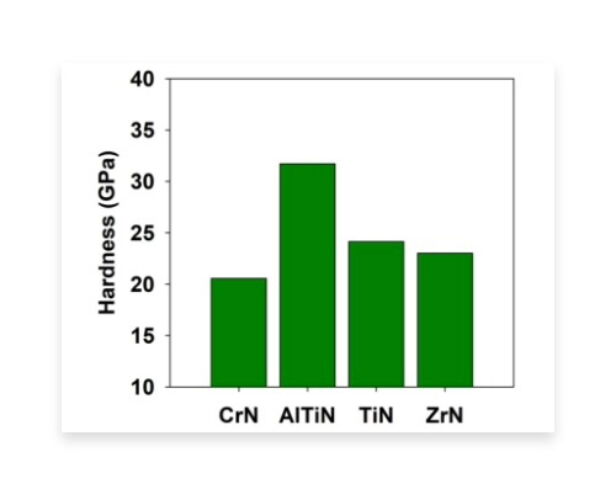

ISO 14577 hardness testing

The NanoFlip nanoindenter includes a pre-written ISO 14577 test method to measure material hardness in compliance with the ISO 14577 standard. This test method automatically measures and reports Young’s modulus, instrumented hardness, Vickers hardness and normalised work-of-indentation.

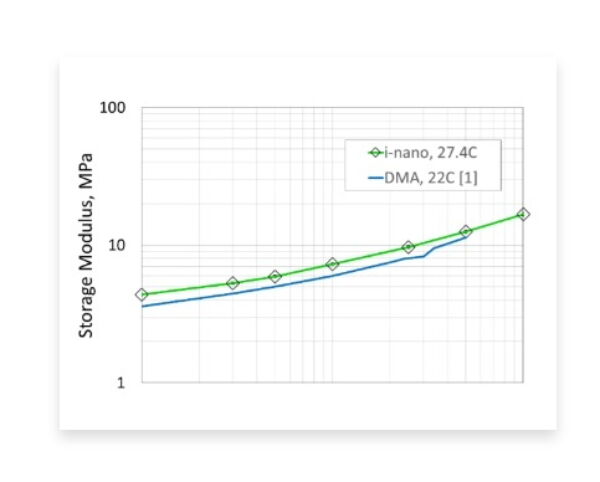

Polymer Dynamic Mechanical Analysis (DMA)

Polymers are exceptionally complex materials. In order to gain useful information for polymer design decisions, mechanical property measurements should be made on a relevant sample in a relevant context. Nanoindentation in situ mechanical testing makes such context-specific measurements more accessible because samples can be small and minimally prepared. The NanoFlip nanoindenter system can also be used to measure complex modulus and the viscoelastic properties of the polymer by oscillating the indenter while in contact with the materials.

Quantitative scratch and wear testing

The NanoFlip can perform scratch and wear testing on a variety of materials. Coatings and films are subjected to many processes, such as chemical and mechanical polishing (CMP) and wire bonding, that test the strength of these films and their adhesion to the substrate. It is important for these materials to resist plastic deformation during these processes and remain intact without blistering up from the substrate.

Videos

Product Videos

Nano Indenters

Downloads

Brochures

NanoFlip® Nano Indenter Brochure

Discover the KLA NanoFlip® Nanoindenter in our product brochure. Designed for high-precision, high-speed nanomechanical testing in situ, the NanoFlip enables researchers to perform indentation experiments within SEM, FIB and other imaging environments, with synchronised imaging and mechanical data capture. Explore its versatile testing capabilities, including hardness and modulus measurement, Continuous Stiffness Measurement (CSM), scratch and wear testing, dynamic mechanical analysis and advanced 3D and 4D mechanical property mapping. With flexible configurations and powerful InView software, the NanoFlip provides detailed insight into material behaviour at the nanoscale.

View Brochure

Application Notes

CSM and DCM-Express Nanoindentation Mapping On Lithium/Polymer Battery Composites

Discover how Continuous Stiffness Measurement (CSM) and DCM-Express nanoindentation techniques can be used to characterise lithium/polymer battery composites. This application note explores the mapping of hardness and elastic modulus across heterogeneous electrode materials, revealing the mechanical properties and distribution of individual material phases. By comparing conventional CSM and high-speed DCM-Express testing, it demonstrates how rapid, high-resolution nanoindentation mapping can provide valuable insights into battery material performance, microstructure and degradation.

View Application Note

How Much Indentation Testing is Enough?

Discover how statistical analysis can help determine the appropriate number of indentations required for reliable nanoindentation testing. This application note explores the use of Student's t-test to establish the sample size needed to identify statistically significant differences between material properties at a given confidence level. It also highlights how high-speed Express Test technology enables more measurements in less time, improving statistical sensitivity and supporting accurate, efficient material characterisation.

View Application Note

ISO 14577 Standardised Nanoindentation

Discover how the KLA iNano® Nanoindenter can perform standardised nanoindentation testing in accordance with ISO 14577. This application note explores the measurement of Young's modulus, instrumented hardness and Vickers hardness across a range of materials, including metals, polymers, glasses and single crystals. Demonstrating the accuracy and repeatability of the iNano, it highlights a straightforward, automated approach to reliable mechanical characterisation and internationally standardised materials testing.

View Application Note

Hardness Mapping of 3D Printed Aluminium

Discover how nanoindentation mapping can be used to evaluate the hardness variations within 3D printed aluminium. This application note explores how high-resolution mechanical testing reveals local differences in hardness associated with the material's microstructure and additive manufacturing process. By mapping mechanical properties across the printed material, researchers can gain valuable insights into material uniformity, microstructural variations and the relationship between manufacturing conditions and mechanical performance.

View Application Note

Continuous Stiffness Measurement (CSM)

Discover the benefits of Continuous Stiffness Measurement (CSM), an advanced nanoindentation technique that enables continuous measurement of mechanical properties as a function of indentation depth. This application note explores how CSM provides detailed hardness and elastic modulus profiles, helping researchers investigate material behaviour, identify surface effects and characterise thin films, coatings and heterogeneous materials with greater precision.

View Application Note

Young’s Modulus of Glass Microspheres

Discover how nanoindentation can be used to measure the Young's modulus of glass microspheres. This application note explores how precise mechanical testing characterises the elastic properties of individual microspheres, providing insight into their stiffness and mechanical behaviour. The technique offers a reliable approach to evaluating small-scale material properties and supporting the development and quality control of advanced glass materials.

View Application Note

The Importance of Nanomechanical Properties to Battery Materials Performance

Discover why nanomechanical properties play a vital role in the performance, durability and reliability of battery materials. This application note explores how nanoindentation techniques can measure hardness, elastic modulus and mechanical behaviour in battery components, providing valuable insight into material deformation, degradation and structural integrity. Learn how advanced mechanical characterisation supports battery research, material development and the optimisation of next-generation energy storage technologies.

View Application Note

Effect of Ultraviolet C Disinfection on Physical Properties of N95 Face Masks

Discover how ultraviolet C (UVC) disinfection affects the physical and mechanical properties of N95 face masks. This application note explores how nanoindentation can assess changes in material characteristics following UVC exposure, helping evaluate the impact of disinfection on mask integrity and performance. The findings provide valuable insight into the suitability of UVC treatment for mask decontamination and potential reuse.

View Application Note

Scratch Testing of Low k Dielectric Films and a Correlation Study of the Results

Discover how scratch testing can be used to evaluate the mechanical integrity and adhesion of low-k dielectric films. This application note explores how controlled scratch testing identifies critical failure points, coating damage and delamination, alongside a correlation study comparing test results. The findings provide valuable insight into the reliability of low-k dielectric materials, supporting semiconductor research, process optimisation and thin-film quality assessment.

View Application Note

Microscopic Measurement of the Stress-Strain Relation for Commercially Pure Titanium

Discover how instrumented indentation can be used to investigate the microscopic stress-strain behaviour of commercially pure titanium. This application note explores how advanced mechanical testing measures the material's response to applied loads, providing insight into its elastic and plastic deformation properties. The technique offers a valuable approach to characterising local mechanical behaviour, supporting materials research, engineering applications and the development of titanium components.

View Application Note

Impact Hardness: Nanoindentation, High Strain Rate and High-Speed Data Acquisition using DataBurst Technology

Discover how advanced nanoindentation techniques can be used to investigate impact hardness and material behaviour at high strain rates. This application note explores the combination of high-speed mechanical testing and DataBurst™ technology to capture rapid material responses with exceptional temporal resolution. By enabling high-speed data acquisition during dynamic indentation, the technique provides valuable insight into hardness, deformation and mechanical behaviour under impact conditions, supporting advanced materials research and characterisation.

View Application Note

Film Delamination: Combining Nanoindentation and Imaging for Detecting Critical Delamination Load and Interface Adhesion Energy

Discover how nanoindentation combined with advanced imaging techniques can be used to investigate thin-film delamination and interface adhesion. This application note explores how controlled indentation testing identifies the critical load required to initiate film delamination and evaluates interface adhesion energy. By correlating mechanical measurements with imaging analysis, the technique provides valuable insight into coating failure mechanisms, interfacial strength and thin-film reliability, supporting materials research and coating development.

View Application Note

High Speed Nanoindentation Mapping on Thermal Barrier Coatings

Discover how high-speed nanoindentation mapping can be used to characterise the mechanical properties of thermal barrier coatings. This application note explores how rapid, high-resolution indentation measurements map variations in hardness and elastic modulus across coating microstructures. By revealing local mechanical differences and material inhomogeneities, the technique provides valuable insight into coating performance, structural integrity and durability, supporting advanced materials research and quality control.

View Application Note

Nanoindenter Tips Application Note

Discover how the selection and use of nanoindenter tips influence the accuracy and reliability of nanomechanical testing. This application note explores different indenter geometries, their applications and the importance of tip calibration, helping researchers choose the right tip for precise characterisation of material properties.

View Application Note

A Critical Assessment of the Effect of Indentation Spacing on the Measurement of Hardness and Modulus

Discover how indentation spacing can influence the accuracy of nanoindentation measurements. This application note critically examines the effects of spacing between indents on measured hardness and elastic modulus, highlighting the importance of appropriate test spacing to minimise interactions between indentations and ensure reliable, repeatable results.

View Application Note

Effect of Annealing on 50nm Gold Films

Discover how annealing influences the mechanical properties of 50 nm gold films. This application note explores changes in hardness and elastic modulus following heat treatment, demonstrating how nanoindentation can be used to investigate the effects of thermal processing on thin-film behaviour and performance.

View Application Note

Instrumented Indentation Testing with the KLA Nano Indenter® systems

Discover the capabilities of KLA Nano Indenter® systems for instrumented indentation testing. This application note explores how advanced indentation techniques measure key mechanical properties, including hardness and elastic modulus, providing accurate, repeatable characterisation of materials ranging from thin films and coatings to bulk materials.

View Application Note

Strain Rate Sensitivity of Thin Metal Films by Instrumented Indentation

Discover how instrumented indentation can be used to evaluate the strain rate sensitivity of thin metal films. This application note explores how changes in indentation loading rate influence measured hardness and mechanical response, providing insight into the rate-dependent deformation behaviour of metallic thin films and supporting their characterisation for advanced applications.

View Application Note

Critical Assessment of High Speed Nanoindentation Mapping Technique and Data Deconvolution

Discover how high-speed nanoindentation mapping can reveal variations in the mechanical properties of heterogeneous materials. This application note critically assesses the technique and its associated data deconvolution methods, exploring their impact on measurement accuracy, spatial resolution and the interpretation of mechanical property maps. It provides valuable insight into the capabilities and limitations of high-throughput nanomechanical characterisation.

View Application Note

Options

Continuous Stiffness Measurement (CSM)

The CSM technique involves oscillating the probe during indentation to measure properties as a function of depth, force, time, or frequency. The option comes with a constant strain rate experiment that measures hardness and modulus as a function of depth or load, which is the most common test method used across academia and industry. CSM is also used for other advanced options, including the ProbeDMA™ method for storage and loss modulus measurements and AccuFilm™ substrate-independent measurements. The CSM is integrated into the InQuest controller and InView software to deliver unparalleled ease of use and data quality.

NanoBlitz 3D

NanoBlitz 4D utilizes the InForce 50 Actuator to generate 4D maps of measurements for both low-E/H and high-E (>3GPa) materials with a Berkovich tip. NanoBlitz performs indents at 5-10s per indent, up to 10,000 indents (30×30 array), and provides Young’s modulus, hardness, stiffness as a function of depth for each indent in the array. NanoBlitz 4D utilizes a constant strain rate method, and also provides visualization software and data handling capabilities.

NanoBlitz 4D

NanoBlitz 4D utilizes the InForce 50 Actuator to generate 4D maps of measurements for both low-E/H and high-E (>3GPa) materials with a Berkovich tip. NanoBlitz performs indents at 5-10s per indent, up to 10,000 indents (30×30 array), and provides Young’s modulus, hardness, stiffness as a function of depth for each indent in the array. NanoBlitz 4D utilizes a constant strain rate method, and also provides visualization software and data handling capabilities.

AccuFilm™ Thin Film Method Pack

The AccuFilm™ Thin Film Method Pack is an InView test method based on the Hay-Crawford model for measuring substrate-independent material properties using Continuous Stiffness Measurement (CSM). AccuFilm™ corrects for substrate influence on film measurements for hard films on soft substrates as well as soft films on hard substrates.

ProbeDMA™ Polymer Method Pack

The Polymer Pack enables measurement of the complex modulus of polymers as a function of frequency. The pack includes a flat-punch tip, a viscoelastic reference material, and a test method for evaluation of viscoelastic properties. This measurement technique is key to characterizing nanoscale polymers and polymer films that are not well-served by traditional DMA test instruments.

Scratch and Wear Testing Method Pack

The scratch and wear testing method pack is provided with the InForce 50 actuator. Scratch testing involves the application of either a constant or ramped load to an indenter while moving across the sample surface at a specified velocity. Scratch testing allows characterization of numerous material systems, such as thin films, brittle ceramics, and polymers.

DataBurst

DataBurst enables systems equipped with InView software and the InQuest controller to record displacement data at rates >1kHz for measuring high strain step loads, pop-in and other high speed events. NanoFlip systems outfitted with the User Method Development option can also modify methods to work with DataBurst.

User Method Development for InView Control Software

InView offers an extremely powerful and intuitive experiment-scripting platform that can be used for designing novel or complex experiments. Experienced users can set up and perform virtually any small-scale mechanical test with the NanoFlip. KLA exclusively offers this capability.

Indenter Tips and Calibration Samples

A wide variety of sharp indenters are available, such as Berkovich, cube corner and Vickers, as well as flat punches, sphere punches, and other geometries. Standard reference materials and calibration standards are also available for the entire product line.
