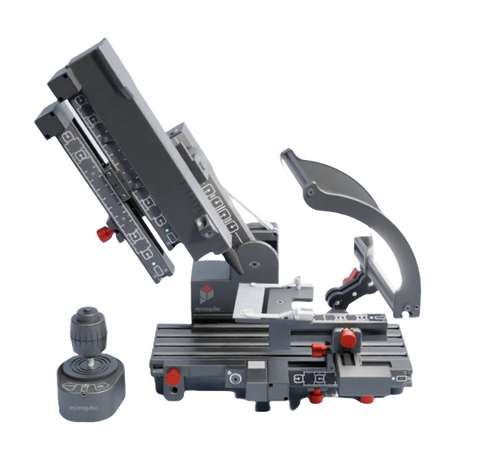

MRCL700 3D Imager Pro

The most versatile 2D/3D imaging system for research, education, and precision manufacturing. The MRCL700 3D Imager Pro consists of a modular design, with multiple illumination sources and many applications.

Manufacturer

Microqubic

Microqubic AG was founded in 2022 in Zug (CH) by Yuksel Temiz to develop affordable and innovative lab instruments for scientific research, education, and precision manufacturing. Microqubic is devoted to providing intelligent, modular, and simple-to-use instruments for precise imaging and manipulation of microscopic and macroscopic objects.

Product Videos

MRCL700 3D Animation

MRCL700 Assembly and Microfluidics

MRCL700 Imaging Modes

MRCL700 Colour Options

Key Features

  • 8MP, USB 3.0 camera (4K, 1/2 inch sensor)
  • Motorised and modular X-Y-Rotation stage with position feedback
  • Motorised focus and zoom with position feedback
  • 180/360° dual-axis tilting with position feedback
  • Three LED matrix sources for multiple imaging modes
  • Quick-release objective lenses and optical components
  • Programmable control from touch switches and 4-axis joystick
  • Bluetooth communication with smartphone or computer
  • Powered from 5V USB-C charger
  • Compact design 8cm x 25cm (base)
  • Early-access units available for pre-order

Imaging Modes

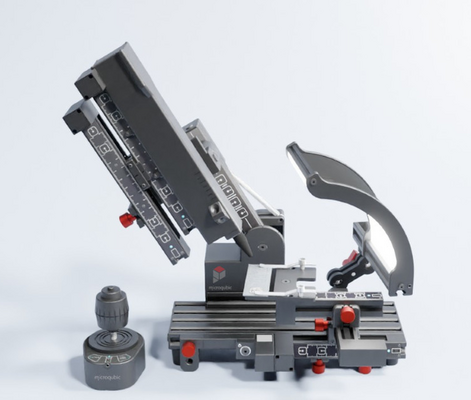

3D reflected-light microscopy

Used for reflected surfaces like silicone and metals. The imaging unit can view samples from approx. 10° to 80°.

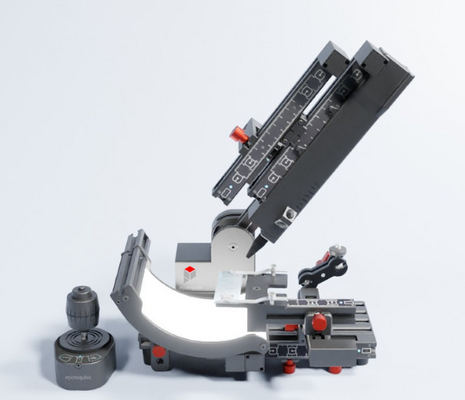

3D transmitted-light microscopy

Used for transparent surfaces like glass, COC and PDMS. The imaging unit can view samples from approx. 10° to 80°.

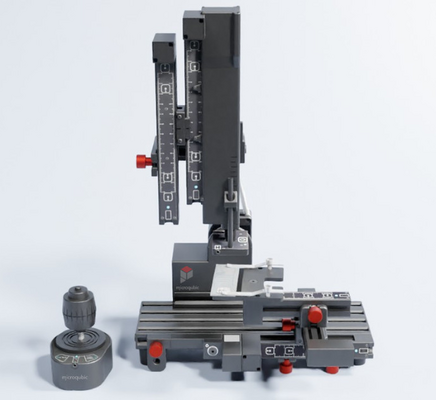

2D upright microscopy

Imaging from top using ring illumination.

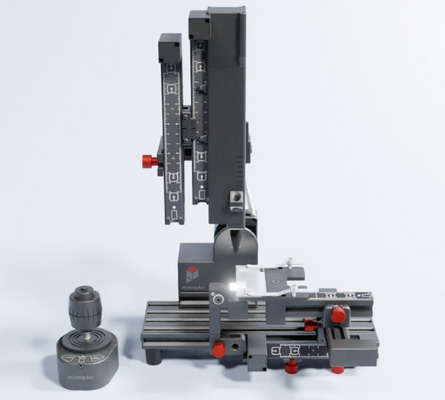

2D inverted microscopy

Imaging from top using bottom illumination.

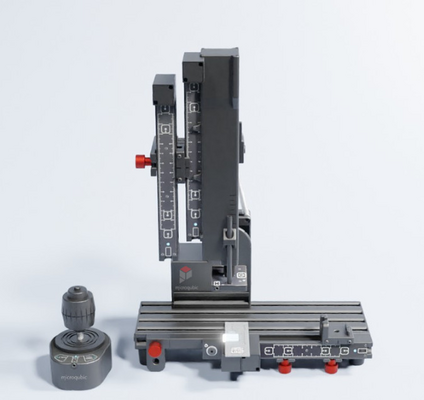

Manual Inspection

Imaging without using the motorised X-Y-R stage for quick inspection of samples.

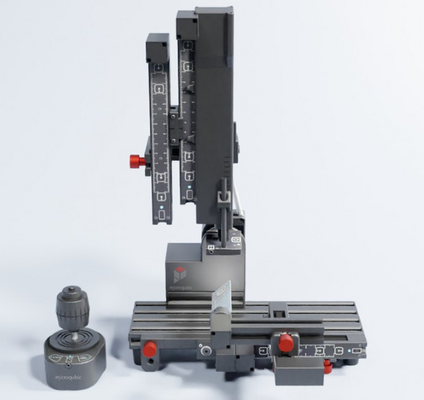

Sample Tilting

Using the rotary stage to tilt the sample instead of the camera.

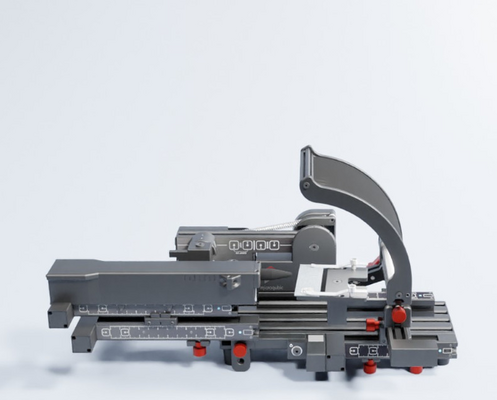

Contact-angle measurements

Imaging sample from its side. Can be used for static water contact-angle estimations.

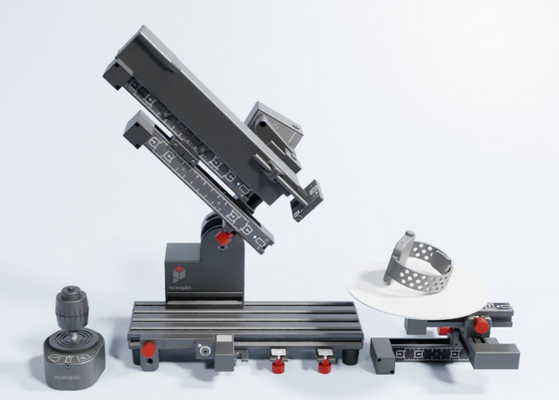

Macro photography

Imaging large objects from a distance by moving the X-Y-R stage elsewhere.

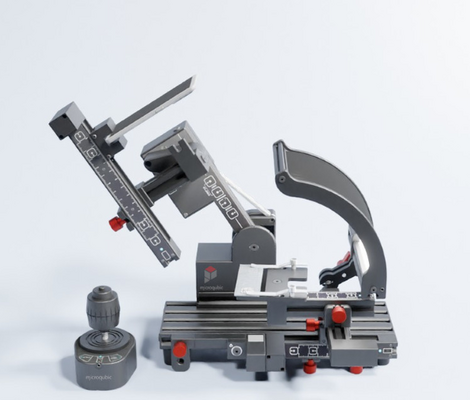

Motorised tripod

Using a smartphone or a small camera (e.g. GoPro) instead of the camera module. (Not suitable for SLR cameras!)

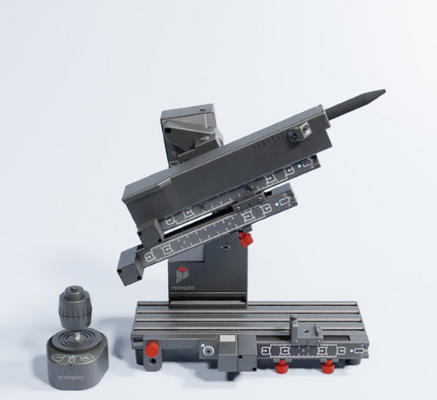

Telephoto zoom

Changing the objective lens to convert the system to a telephoto zoom camera. Yes, seriously.

MRCL Viewer Software

The system is provided with dedicated software (included in the price) to capture microscope images and videos, and control the microscope hardware. The software and its updates are sent to the users by email.

The software supports advanced features like:
  • Automatic focus stacking
  • Dynamic scale bar integration
  • Live measurements
  • HDR imaging
  • Time-lapse
  • 4K video
  • Motorised point-of-interest centring by mouse click

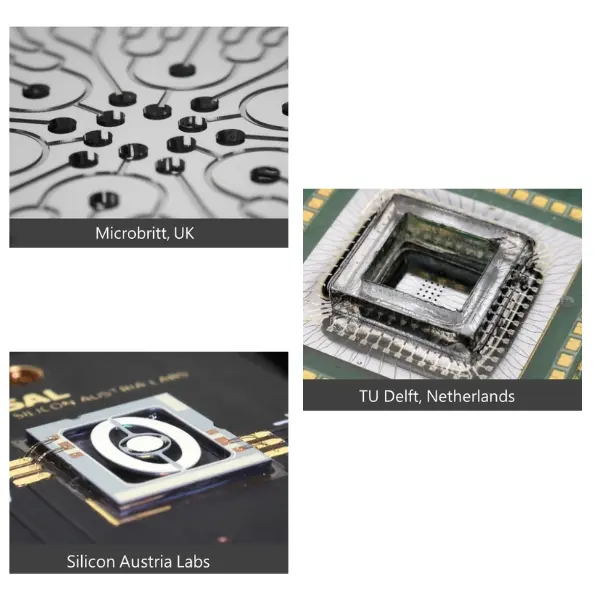

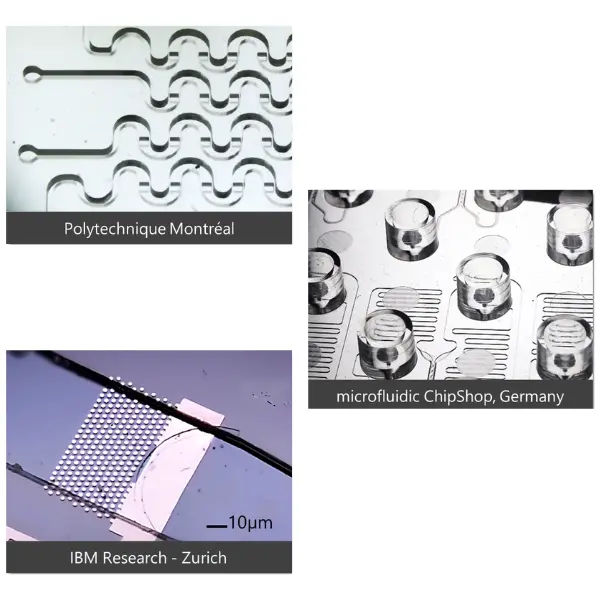

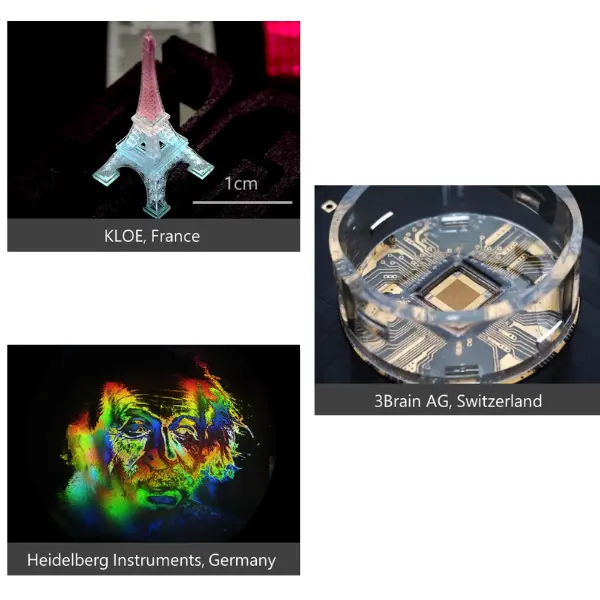

Applications

  • Microfluidics
  • MEMS
  • Biology
  • Electronics
  • Precision Manufacturing

  • Entomology / Botany
  • Semiconductor research
  • Quality control
  • Minerology
  • Education

  • Jewellery
  • 3D modelling / product display
  • Macro photography
  • Security features
  • And more!
