Ion Source Power Supply IS40-PS
High stability & low noise power supply, which can be configured to work with IS40E1, IS40F1 or IS40C1 Ion Sources.
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Description
Ion Source IS 40E1 mode

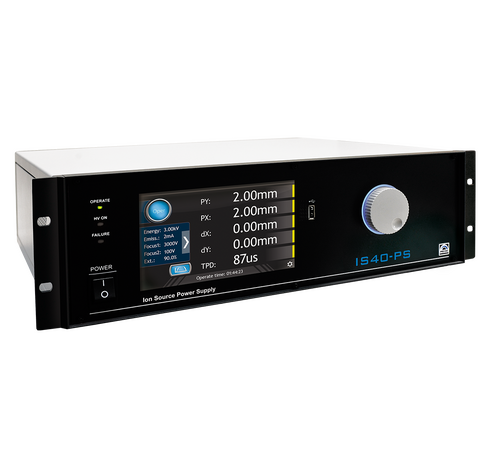

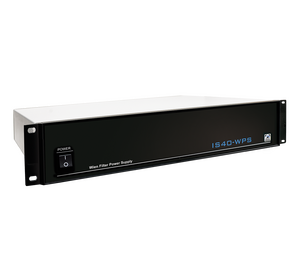

The IS40-PS power supply drives the IS40E1 Scanning Ion Source. It allows fine adjustment of the primary beam energy, ion density and beam profile (by adjustment of the extractor, focus lenses, deflection and positioning elements). Up to 4 parameters can be varied via the digital encoder. The current status of each parameter is displayed on the large front panel LCD display. All settings can be manually adjusted or can be stored and recalled automatically after the unit switched on. The unit also features a built-in timer and automatic standby mode. Easy firmware update via USB port. The unit can be remotely controlled via RS232/485 or Ethernet interfaces. Autosave function for saving your parameters/unit pre-set and applying them automatically after restart. Wien filter option available.
Ion Source IS 40F1 mode
The IS40-PS power supply drives the IS40F1 Ion Source which is used for broad-area UHV sample cleaning and preparation. The IS40-PS power supply allows fine adjustment of beam energy, ion density and focus voltage via digital encoders. All settings can be manually adjusted or can be stored and recalled automatically after the unit switched on. The unit also features a built-in timer and automatic standby mode. Easy firmware update via USB port. The unit can be remotely controlled via RS232/485 or Ethernet interfaces. Autosave function for saving your parameters/unit pre-set and applying them automatically after restart.
Ion Source IS 40C1 mode
The IS40-PS power supply drives the IS40C1 Ion Source which is used for broad-area UHV sample cleaning and preparation. The IS40-PS power supply allows fine adjustment of both beam energy and ion density via digital encoders. All settings can be manually adjusted or can be stored and recalled automatically after the unit switch on. The unit also features a built-in timer and automatic standby mode. Easy firmware update via USB port. The unit can be remotely controlled via RS232/485 or Ethernet interfaces. Autosave function for saving your parameters/unit pre-set and applying them automatically after restart.
Technical data
| Supply voltage | 100V – 240V, 50-60 Hz (power consumption max 250 W) |
| Timer | dual mode timer, 0 s – 99 h 59 min |
| Vacuum measurement (optional) | CTR90, TTR91, TTR211, PTR225, PTR90, ITR90, ITR100, Baratron, ANALOG IN, MKS937A, PG105, MG13/14, PKR251/360/361, PCR280, ATMION |
| User Interface | 7″ TFT display with touchscreen, digital encoder |
| Communication interface | RS232/485, Ethernet |
| Communication protocol | MODBUS-TCP |
| Interface languages | English, German, Polish |
| Dimensions [mm] | 483 x 133 x 437 mm (W x H x D), 19″ rack mountable |
| Specification (IS40E1 mode) | |
| Beam energy (E) | 0 – 5 keV, resolution 0.01 keV, ripple < 0.2 Vpp |
| Emission current (Ie) | 0.01 mA – 10 mA, resolution 0.01 mA |
| Focus (1,2) voltage | 0 – 5000 V, resolution 1 V, ripple < 0.2 Vpp |
| Extractor voltage (Ex) | 60 – 100% of energy, resolution 0.1%, ripple < 0.2 Vpp |
| Beam position (Px, Py) | -5 mm to 5 mm, resolution 0.01 mm |
| Scanning area (Δx, Δy) | 10 mm x 10 mm, resolution 0.01 mm |
| Scanning speed (time/dot) | 20 μs – 30 ms |
| Weight (approx.) | 12 kg |
| Specification (IS40F1 mode) | |
| Beam energy (Ueng) | 0.00 keV – 5.00 keV, resolution 0.01 keV, ripple < 200 mV |
| Emission current (Ie) | 0.01 mA – 10 mA, resolution 0.01 mA |
| Focus voltage | 0 – 5000 V, resolution 1 V, ripple < 0.2 Vpp |
| Weight (approx.) | 9.2 kg |
| Specification (IS40C1 mode) | |
| Beam energy (Ueng) | 0.00 keV – 5.00 keV, resolution 0.01 keV, ripple < 200 mV |
| Emission current (Ie) | 0.01 mA – 10 mA, resolution 0.01 mA |
| Weight (approx.) | 9.2 kg |
