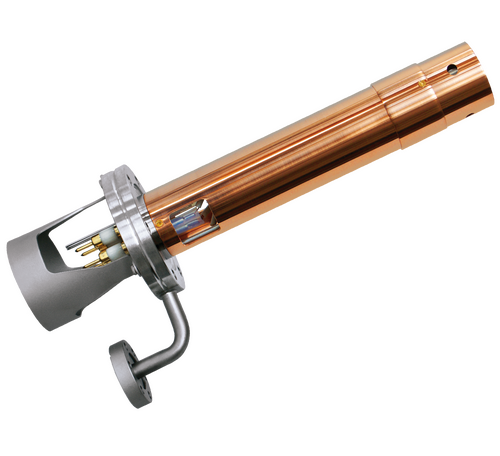

Ion Source IS 40C1

Compact, easy-to-use extractor type for sample surface cleaning.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • Operation with inert (Ar) & reactive gases (O2, H2, hydrocarbons with reduced lifetime)
  • High Ion Beam Current
  • Long lifetime
  • High stability

Description

The source generates an ion current of >70 μA/cm2 (Argon) with Gaussian beam profile. The source insertion length is adaptable to individual requirements (between 62.5 mm – 384.5 mm, other on request).

Technical data

Mounting flange DN 40CF (rotatable)
Energy range 0.12 keV – 5 keV
Current density > 120 μA/cm2 (for distance 30 mm)
Cathode type yttrium oxide coated iridium filament
Insertion length min. 62.5 mm, other on request
OD: max. 37 mm
FWHM dependent on ion energy and working distance
(e.g. 3 mm for distance 30 mm)
Typical working distance 30 – 250 mm
Bakeout temperature up to 250 °C
Working pressure 10-5 10-6 mbar

Options

  • Gas dosing system
  • Customised insertion length
  • Linear shift
