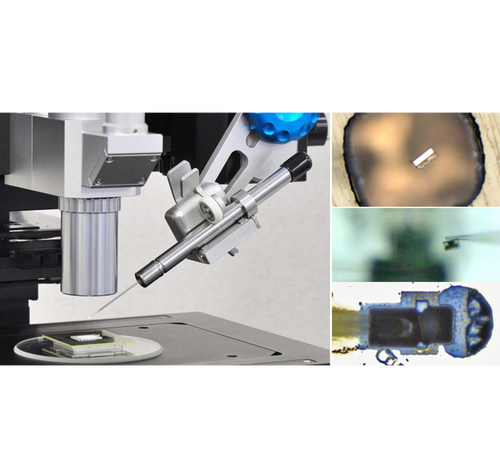

High-Precision Rotator

Achieve high-precision posture control.



Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Product Videos

High-Precision Rotator Video 1

High-Precision Rotator Video 2

Key Features

  • A useful tool rotation mechanism for lifting out thin sections processed by FIB
  • Adding rotational operation simplifies delicate position control in the micromanipulator’s 3D motion
  • Compatible with AxisPro FC, AxisPro SS, and QuickPro micromanipulators for easy installation
  • In addition to glass probes for lifting out, it is also ideal for foreign object sampling purposes when equipped with tungsten probes or hard metal tools

Product Information

  • FIB Lift-out Posture control and deliver (10 micro meters)
  • Lift out a foil made by FIB (Delivery to mesh of TEM)
  • Posture control of gathered particle (To the AFM cantilever)
  • The direction and angle adjustment when particle is delivered to analysis disk
  • Confirmation of the small amount particle that adheres on the back side of the tool

Tools that can be installed

Usage Micro tools Model
FIB lift out Sampling Probes MST-002,005,007
Foreign substance sampling Tungsten Probes TP-0005,001,005,010,030
Milling or Cutting Hard-Metal Tools MPE-1,2,4 / CP-005 / KE-1,2

Line-up

HPR-2 Use for “AxisPro” or “QuickPro” (For either Right Hand or Left Hand)

Applications

FIB thin piece

Lift-out, posture control and delivery of FIB samples (10µm)

  • Sample:FIB thin piece
  • Tool:Super fine pitch rotator and Glass Tool
  • Application:Precisely operate difficult lift-out and deliver
