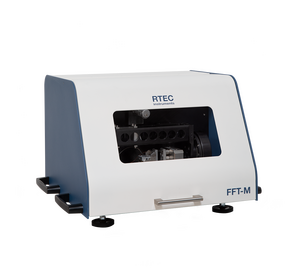

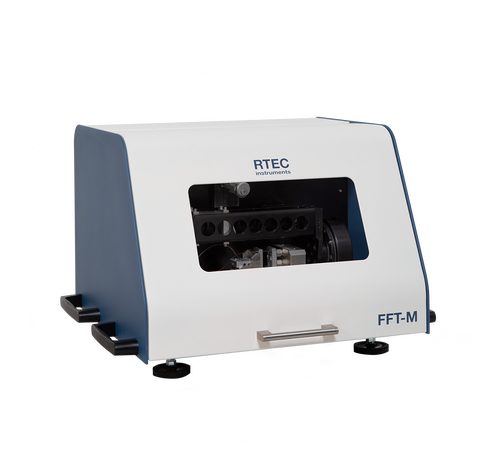

HFRR Tester FFT-M

Next Generation lubricity tester with real-time force and stroke control, piezo sensors and wide temperature range. Evaluate fuel lubricity, predict the performance of additives, study friction wear with our HFRR high frequency reciprocating rig and programmable force control (no dead weights). Combined with piezo sensors to measure real-time friction. The ease of use, flexure based design makes this tester highly reliable and repeatable. Test collected samples from field or for research purpose. The HFRR provides a fully automated and computer controlled test. Setup is easy to calibrate and comes with standard oil and samples.

Manufacturer

Rtec Instruments

Rtec Instruments develops and manufactures advanced mechanical and surface testing and measurement solutions for research and industrial applications. They specialise in combining techniques that provide a unique perspective in material testing. Their testers include tribometer, profilometer, scratch tester, high-temperature indenter, and corrosion testers. Furthermore, their testers provide the most robust and versatile platform in the market for testing friction, wear, adhesion, hardness, roughness, and film thickness from nano to macro-scale.

Key Features

  • Real-time down force control
  • 1 to 200 Hz, 10 µm to 2.8 mm
  • Real time friction with piezo load sensors
  • Room to 180 °C (cooling and up to 400°C options available)
  • Load Range up to 20N (More ranges available)
  • Up to 500 N Down Force (Bench Top, Single or Dual Medium Power Coil)

ASTM, ISO, DIN Compliant



Next-generation tester – compliant with current standards and future testing needs.

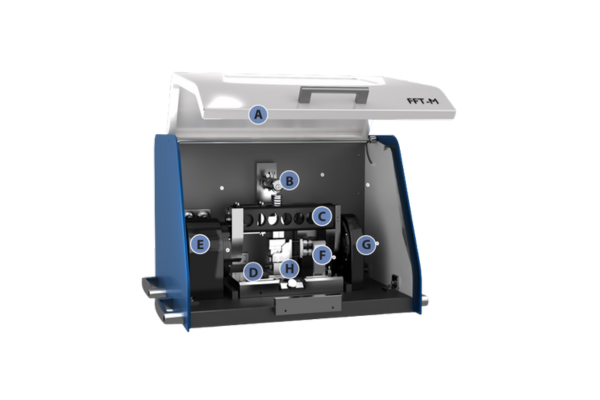

  • A: Enclosure
  • B: Down Force Control
  • C: Position Control
  • D: Environmental Controller
  • E: Voice Coil
  • F: Friction Measurement
  • G: Addition In-line Sensors
  • H: Liquid Containers Sample Holder

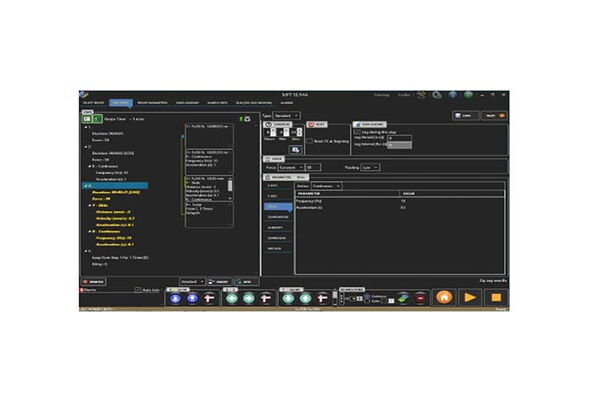

Software

The tester comes with a windows based computer that has an operation and data analysis software package.

The operation software is a recipe- based software that allows it to
run standard or previously created standard programs with a click of a button. The software provides change force, temperature, frequency, stroke, time, cycles, and humidity during each step. It also allows you to define endpoints based on several in-line data that are monitored. The software can be used for simple standard tests or advanced complex test methods.

The analysis package comes with visualization and statistical data analy- sis. Multiple files and reports can be opened for easy comparison. Data can be stored in binary or ASCII format.

Typical Test Analysis

  • Evaluate diesel fuel lubricity
  • 1mm 50 Hz, 200 gm force
  • 6 mm diameter ball, disc 10 mm diameter x 3 mm thick disc
  • Humidity control and monitoring
  • 70°C temperature

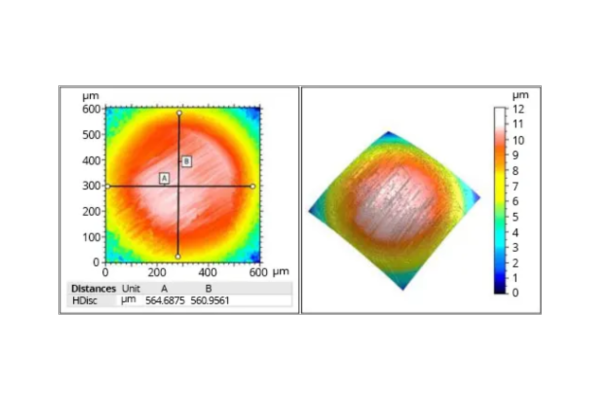

  • Wear scar and friction analysis

ASTM Tests and More

HFRR lubricity tester performs friction and wear analysis on petroleum products.

  • IP 450/2000
    Diesel Fuel – Assessment of Lubricity Using the High Frequency Reciprocating Rig (HFRR)
  • ASTM D6079
    Standard test method for evaluating lubricity of diesel fuels by the high frequency reciprocating
  • ISO 12156-1
    Diesel Fuel – Assessment of Lubricity Using the High Frequency Reciprocating Rig (HFRR). Part 1 Test Method.BS EN 590Automotive Fuels – Diesel – Requirements and Test Methods
  • ASTM D7688
    Standard Test Method for Evaluating Lubricity of Diesel Fuels by the High-Frequency Reciprocating Rig (HFRR) by Visual Observation
  • CEC F-06-A-96
    Measurement of Diesel Fuel Lubricity
  • JPI-5S-50-98
    Gas Oil – Testing Method For Lubricity

Industries

  • Automotive
  • Aerospace
  • Railways



Applications

Coatings

Trbines

EV vehicles

Motors

Turbines

Lubricant
