Goniometers

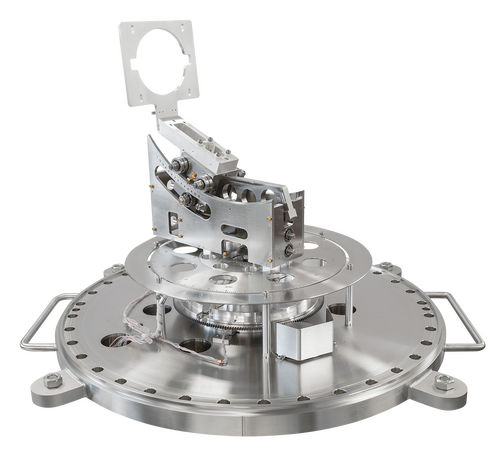

The precision, 2-axes goniometer stage is designed specifically for anti-clash and sample access.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

Both axes are fitted with vernier readouts of 0.1° precision. Full 360° R1 rotation in the horizontal plane (with no sources hindering the movement). 90° R2 rotation from vertically upward pointing to horizontal. Stepper motor controller with external panel and computer interface.

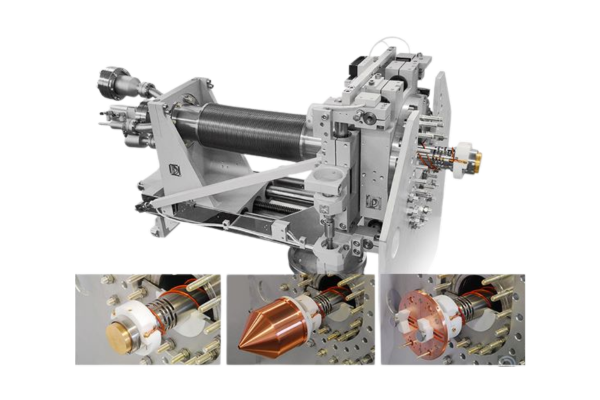

The goniometer’s head permits precision sample positioning and alignment motion at the sample location. Installation of a goniometer head enables rotations, translations and flip movements with various accuracies. Sample faces can be held on axis, allowing a single sample site to be investigated during a change of angle.

The goniometer is fabricated entirely from UHV compatible materials, has anti-backlash spring-loaded gearing, and can also be fitted with heating, cooling and sample transfer options.
