Glass Tool

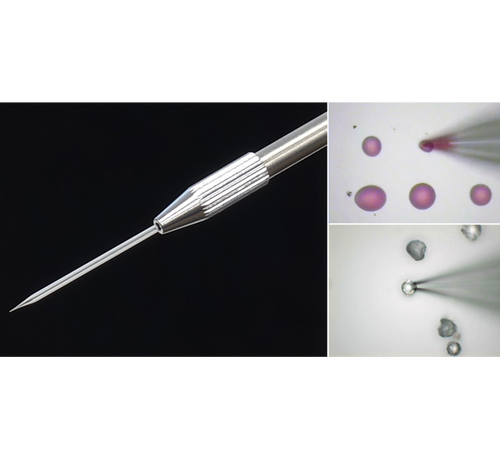

Glass micro-pipettes/probes that enable liquid/solid absorption.



Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Product Videos

Glass Tool Video 1

Glass Tool Video 2

Key Features

  • Glass-made micro-pipette/ micro-sampling tool/ micro-press tool
  • Pipettes with inner diameters of 5μm/10μm/20μm can be used for sample suction and transfer using a vacuum absorption tool set or for solvent absorption/releasing using a micro-injector, ensuring secure sampling of challenging fibrous or spherical foreign substances
  • Micro-sampling tools are used to lift out FIB-processed thin films. The success rate of lift-out is greatly improved by attaching the "high-precision rotator"
  • Absorb and release pico-liter liquid
  • Micro-press tools are innovative: able to press collected samples to thin layers while providing visual confirmation. It enables the reduction of thick samples to an analytically suitable thickness when used with Axis Pro series
  • Handles tiny particle

Application Information

  • Quantitative absorption/release of small liquid volumes (using a micro-injector).
  • Lift-out and transfer of thin films processed by FIB (using a high-precision rotator).
  • Pickup of minute samples (using a vacuum absorption tool set).
  • Thin layering of collected samples (approximately 1-50μm in size) using micro-press tools.

Lineup

Micro Knives (variation)
I.D. 5μm (10pcs) MP-005 Capillary
I.D. 10μm (10pcs) MP-010 Same as above
I.D. 20μm (10pcs) MP-020 Same as above
MP-005/-010/-020 each 2pcs MP-SET Micro-pipettes set

Bent type micro pipette
I.D. 5μm (10pcs), bend:15 degrees MP-005-15 For access to a micro-hole,for short W.D. microscope
I.D. 5μm (10pcs), bend:30 degrees MP-005-30 Same as above
I.D. 5μm (10pcs), bend:90 degrees MP-005-90 For FIB lift-out
I.D. 10μm (10pcs), bend:15 degrees MP-010-15 For access to a micro-hole,for short W.D. microscope
I.D. 10μm (10pcs), bend:30 degrees MP-010-30 Same as above
I.D. 20μm (10pcs), bend:15 degrees MP-020-15 Same as above
I.D. 20μm (10pcs), bend:30 degrees MP-020-30 Same as above

Micro Sampling Tools
Tip inside diameter 2μm (10pcs) MST-002 For FIB lift-ou
Tip inside diameter 5μm (10pcs) MST-005 Same as above
Tip inside diameter 7μm (10pcs) MST-007 Same as above

Micro Press Tools
A Tip is special processing (3pcs) MPT For samples press

Micro Pipettes Handles
For vacuum pickup MPH Use for manipulator

Applications

Micro Press Tool

Thick samples can be crushed to increase the area or make them thinner

  • Tool:Micro Press Tool
  • Application:Pressing substances

Aqueous ink for inkjet printer

Axis Pro software control enables Z axis motion to synchronise sequential liquid applications

  • Sample: Aqueous ink for inkjet printer
  • Tool: Micro injector and Micro Pipette
  • Application: Sequential liquid application of 100μm dia liquid spots.

Silica grain / Aqueous ink

Semi – automated surface cutting operations enabled by Axis Pro`s control program

  • Sample:Silica grain / Aqueous ink
  • Tool:Micro Pipette
  • Application:Liquid absorption

FIB thin piece

Lift-out, posture control and delivery of FIB samples (10µm)

  • Sample:FIB thin piece
  • Tool:Super fine pitch rotator and Glass Tool
  • Application:Precisely operate difficult lift-out and deliver

Cell

Possible to pick up and deliver cell

  • Sample:Cell
  • Tool:Glass Tool
  • Application:Cell isolation
