Gas Leak Detector GLD10

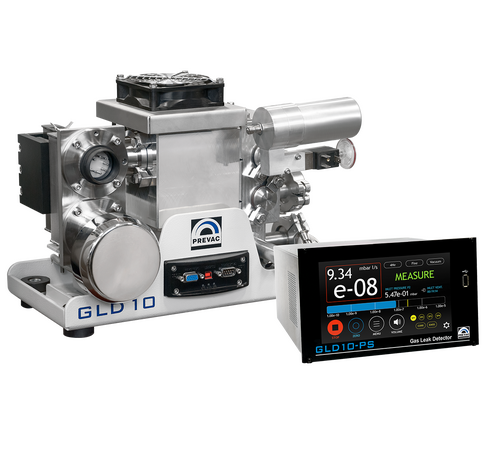

Gas Leak Detector GLD10 is a compact leak testing system, equipped with a dedicated electronic device for easy process controlling and monitoring.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • Prepared for integration with industrial PLC systems for serial testing
  • High resolution
  • High reliability
  • Easy to connect
  • Suitable for automated processes

Description

The unit is prepared to work in automatic industrial leak detection systems. Allows leak detection at the lowest measurable levels. Thanks to the implementation of the advanced data transmission protocol and easy, user-friendly control interface, GLD10 allows complete integration with the latest production management systems based on the specification of industry 4.0.

In the spectrometer of the leak detector, the ionized gas atom’s path is bent in a magnetic field, and geometry and control voltage are set for measurement of light gases like Helium 3, 4 AMU or Hydrogen 2 AMU. GLD10 requires a backing pump (available as an option).

Technical data

GLD10
Min. detectable leak rates (He):
≤ 5E-12 mbar· l/s for ULTRA MODE (>5 l/s He pumping speed)
≤ 1E-10 mbar· l/s for FINE MODE (1.7 l/s He pumping speed)
≤ 1E-7 mbar· l/s for STANDARD MODE
Max. inlet pressure
0.2 mbar for ULTRA MODE
1.0 mbar for FINE MODE
20 mbar for STANDARD MODE
65l/s
Measuring units mbar· l/s, Pa· m³/s, atm cc/s, Torr· l/s
Response time <1 s
Ion source cathode 2 yttrium/iridium
Vacuum connections DN 16 KF, DN 25 KF
Dimensions 333 x 273 x 270 mm (WxHxD)
Weigth (approx.) 13.5 kg
GLD10-PS
Digital inputs and outputs 10 inputs / 8 outputs
2 analog outputs 0 – 10 V
Communication protocols Modbus RTU – interface: RS232/485
Modbus TCP – interface: Ethernet
User interface 7″ TFT display with touchscreen
Interface languages English, German, Polish
Dimensions 212.6 x 128.4 x 260.3 mm
(WxHxD), 1/2 of 3HE 19”
Weight (approx.) 3.8 kg
Options
Backing pump TRIVAC D4 B
External calibrated leak range E-7 mbar· l/s
Connecting cables 1 m / 3 m / 5 m / 10 m
Sniffer 4 m

Applications

Leak tests are performed, for example:

In the industrial vacuum processes:

  • furnaces: metal enhancement,
  • coating lines: glass coaters for optics,
  • food packaging,
  • process reactors: electronics manufacturing.

In the production of automotive parts:

  • economics: energy loss due to pressure drop (air conditioning),
  • ecologics: leaks of dangerous media (fuel),
  • safety: leaks of flammable gases or fluids (brake fluid).

In the production of consumer electronics with heat pumps:

  • economics: energy loss due to pressure,
  • ecologics: leaks of dangerous media,
  • safety: leaks of flammable gases or fluids.
