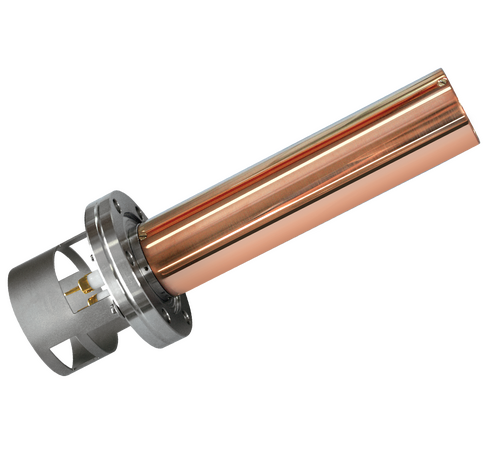

Flood source FS 40A1

Low cost electron flood source for charge neutralisation of insulators or semiconductors in XPS/AES and SIMS applications.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • High electrom beam current
  • Selectable energy ranges
  • Stabilised emission
  • Beam profile control

Description

The flood source operates over two energy ranges, is fully software controlled and can also be supplied with custom insertion lengths (145 – 421 mm, other on request) and shielding materials, e.g. mu-metal, copper.

Technical data

Mounting flange DN 40CF (non-rotatable)
Energy range 0.01 – 1000 eV
Sample current up to 100 μA
Cathode type thoriated tungsten
Shield Cu (for μ-metal chambers) or μ-metal (for stainless steel chambers)
Insertion length min. 145 mm (others on request), OD: 33.6 mm (μ-metal), 35 mm (Cu)
FWHM depending on working distance (e.g. 10 mm for distance 30 mm)
Typical working distance 20-100 mm
Bakeout temperature up to 250°C
Working pressure < 5 × 10-6 mbar

Downloads

Brochures

Instruments with Electronics Brochure

View Brochure

Options

  • Linear shift
  • Customised insertion length
  • Source shielding material (μ-metal or copper)
