Flag Style Sample Holders

Commonly used sample holder for a wide range of applications.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

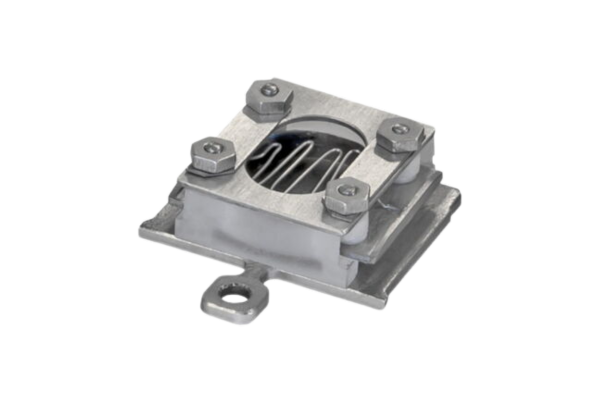

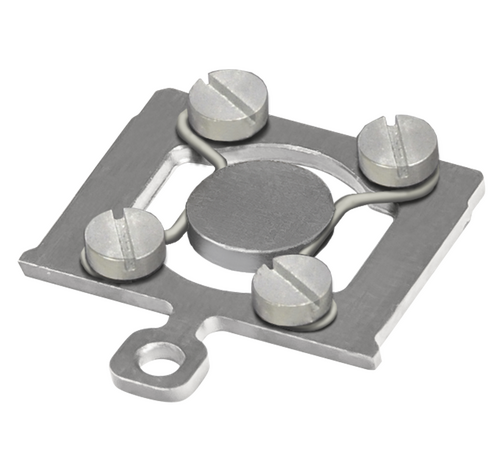

Commonly used sample holder for a wide range of applications. Available as a simple bare plate or configurations including; with 4x M2 screws for sample fixing, plate with pedestal or prepared for electron bombardment, resistive or direct current heating. The holder also can be equipped with a thermocouple for accurate sample temperature measurement. Available materials: titanium, molybdenum, copper, tantalum, aluminium.

Technical data

Type Heating
methods
Heating
temp.
Thermocouple Table
material
Basic resistive
EB
1000 ÷ 1200 °C
1400 °C
Mo, Ta, Cu, Ti, SS
With tablet resistive
EB
1000 ÷ 1200 °C
1400 °C
Ta
For DIR heating direct heating with 10A Mo, Ta
For RES/EB heating resistive
EB
1000 ÷ 1200 °C
1400 °C
Mo, Ta
With thermocouple K Mo, Ta, Cu, Ti, SS
With thermocouple, dedicated for laser heating laser beam K Mo, Ta, Cu, Ti, SS
Dedicated for high pressure reactor Mo, Ta, Cu, Ti, SS
Special design with post/pedestal Mo, Ta, Cu, Ti, SS
