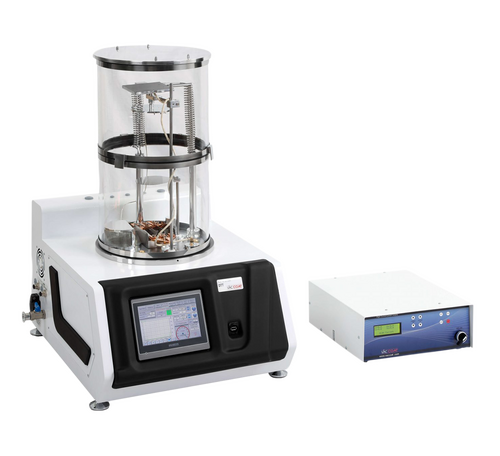

DTT - Desk Thermal Evaporator
The DTT is a desktop turbomolecular-pumped thermal evaporator for vacuum deposition of thin films. The triple-source evaporation or desk thermal evaporator with evaporation source (boat/basket/coil) selection system is ideal for deposition of multilayers or alloys.
Manufacturer
Vac Coat
Vac Coat Limited is a designer and manufacturer of high-quality tailor-made Physical Vapour Deposition (PVD) and Vacuum Coating Systems with excellent customer care and after sale services. Equipped with more than 25 years’ experience in the vacuum and Thin Film deposition technologies. Their research and development team supported by academic scientists and qualified engineers are highly active to develop new designs and meet special inquiries received from clients. Designed and manufactured components by Vac Coat's engineering team meets high-quality standards. Their vacuum coating systems have been sold to many universities and research centres through distributors worldwide with very good references and feedback.
Thermal Evaporator Basic Operation
Key Features
- High-current DC power supply (12V, 100A), short-circuit protected
- High-vacuum built-in turbomolecular pump
- Two-stage rotary vane backing pump (6m3/h), scroll or diaphragm pump as the backing pump (optional)
- Full range vacuum gauge
- Quartz crystal monitoring system for real time thickness measurement (1 nm precision)
- Electronic leak valve
- Electronic shutter
- Sample rotation, height, and tilt adjustable
- 2-inch, 500 ± 1 °C substrate heater (optional)
- Substrate cooling system (optional)
- Glove box installation interface (optional)
- Water flow and temperature sensors
- Two-year warranty
- Intuitive touch screen to control the vacuuming process and device manipulation
- User-friendly software updatable via network
- Manual or automatic Timed or Thickness deposition (Optional)
- Evaporation source (boat/basket/coil) selection for multilayer thin film deposition
- Records and plots coating parameters graphs

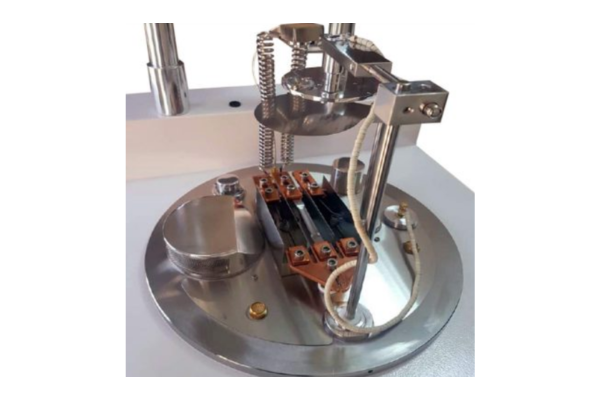

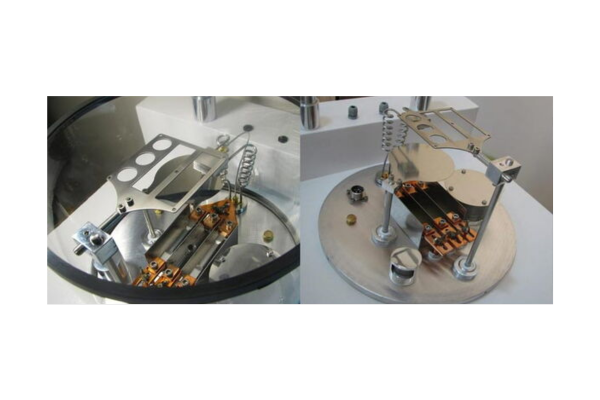

Thermal Evaporation Sources (boat/basket/coil)
The DTT, desk thermal evaporator, can be fitted with three independent heat resistance thermal evaporation sources. The good design of the evaporation source holder causes no contamination from source materials on each other. The length of the source holders can be adjusted in the range of 5-9cm.
Clean Vacuum of Desk Thermal Evaporator
The vacuum chamber is a Cylindrical Pyrex with 300 mm OD and 250 mm H, and the height can be multiplied by an optional extra cylindrical Pyrex of the same size. The DTT is fitted with an internally mounted 90 L/s turbomolecular pump, backed by a 6m3/h two-stage rotary vane pump (optional). It introduces a clean vacuum without oil contamination which normally exists with an ordinary diffusion pump.

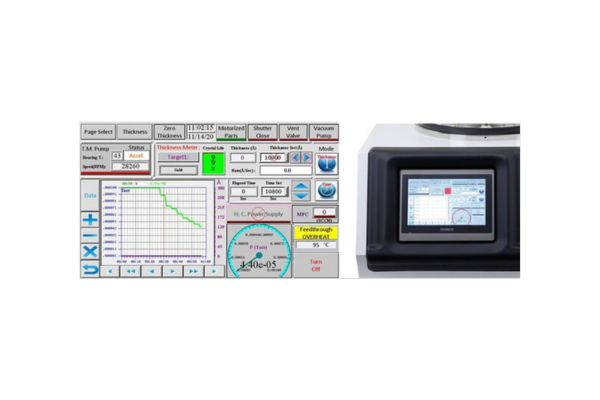

Touch Screen Control
Desk thermal evaporator is equipped with a 7” coloured touch-screen panel using user-friendly software to control the deposition process data. The vacuum and coating sequence information can be observed as digital data or curves on the touchscreen and the last 300 coatings are saved on the history page.
Specifications
- Deposition of multi-layer thermal coatings
- Co–evaporation to form alloy films (optional additional power source)
- Turbo molecular pump with different pumping speeds (optional):
- Multi boats, baskets, and coils installation
- Real-time plot of coating parameters
- Deposition process curves and data transfer by USB port to PC
- 0-12 V, 0-100 A high-current DC power supply, short-circuit protected
- Utilities: 220/110V, 50/60HZ, 1.2 kW
- Dimensions: 60 cm H x 65 cm W x 50 cm D
- Shipping weight: ~ 30 kg (Excluded backing pump)
Applications
- Different kinds of thin film sensors
- Optical components
- Nano & Microelectronic device fabrication
- Solar cells
- Lithium battery fabrication
- Metal thin films
Downloads
DTT Brochure
Options
- High current power supply for co-evaporation
- Quartz crystal thickness sensors
- Spare glass chamber
- Evaporation sources (Boat/basket/coil)
- 2 inches, 500 ± 1 °C substrate heater
- Rotatory sample holder
- Sealing gaskets
- Substrate cooling holder
