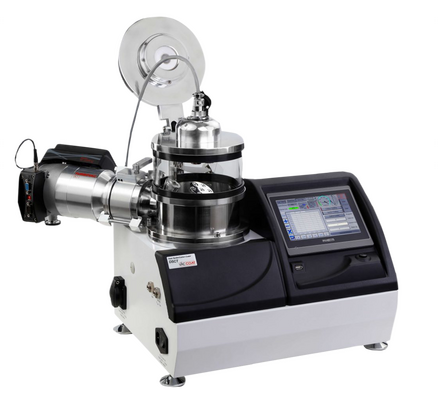

DSCT – Dual Purpose Sputter and Carbon Coater
The DSCT High Vacuum SEM Coater is configured as a sputter coater and fibre carbon coater with interchangeable heads in one instrument suitable for Scanning Electron Microscope (SEM) sample preparation. A wide range of materials could be deposited by DSCT such as gold (Au) platinum/palladium (Pt / Pd) alloy silver (Ag) chromium (Cr) tungsten (W) iridium (Ir) and etc.
Manufacturer
Vac Coat
Vac Coat Limited is a designer and manufacturer of high-quality tailor-made Physical Vapour Deposition (PVD) and Vacuum Coating Systems with excellent customer care and after sale services. Equipped with more than 25 years’ experience in the vacuum and Thin Film deposition technologies. Their research and development team supported by academic scientists and qualified engineers are highly active to develop new designs and meet special inquiries received from clients. Designed and manufactured components by Vac Coat's engineering team meets high-quality standards. Their vacuum coating systems have been sold to many universities and research centres through distributors worldwide with very good references and feedback.

Key Features
- High vacuum level with built-in turbomolecular pump 90 l/s (Leybold)
- Two stage rotary vane backing pump (Diaphragm and scroll pump)
- 80 W sputtering switching DC power supply
- Carbon fibre evaporation head
- 0-25 A pulsed DC power supply for carbon fibre evaporation
- 0-100 A DC power supply for carbon rod evaporation (optional)
- Full range vacuum gauge (Leybold)
- Quartz crystal thickness monitor with precision of 1 nm and resolution of 1 Å
- One 2-inch magnetron cathode
- Automatic venting valve
- Sample rotation, height, and tilt adjustable
- Planetary sample holder (optional)
- Electronic shutter
- Easy-to-change specimen stages (rotation stage as standard)
- Two-year warranty
- CE conformity
- Intuitive touch screen to control the coating process and rapid data input
- User friendly software that can be updated via network
- Repeatable and programmable coating process in the automatic mode
- Semi-full automatic sputtering deposition process in timed or thickness modes
- Semi-full automatic carbon fibre/rod deposition process
- Automatic carbon fibre coating in flash or pulsed modes
- Automatic carbon rod coating in pulsed or ramped modes
- Records and plots coating parameters graphs
- Storing coating recipes for repeatable depositions

Overview
This high vacuum SEM coater offers high quality uniform films with fine grain sizes which are suitable for specimens that require high resolution and high quality characterization such as FE-SEM, EDS/WDS, TEM, and EBSD.
The DSCT, with a 2” magnetron cathode, 80 W switching DC power supply, and high current power supply for carbon evaporation, could be used for research and different thin film applications.
DSCT can be equipped with a water-cooled cathode which makes it suitable for long time sputtering deposition. Also, DSCT can be provided with a 160 W power supply to facilitate sputtering of targets like chromium, tungsten, and other oxidising metal targets (optional).
The full-automatic sputter and carbon coating processes allows easy, precise, and repeatable performance.

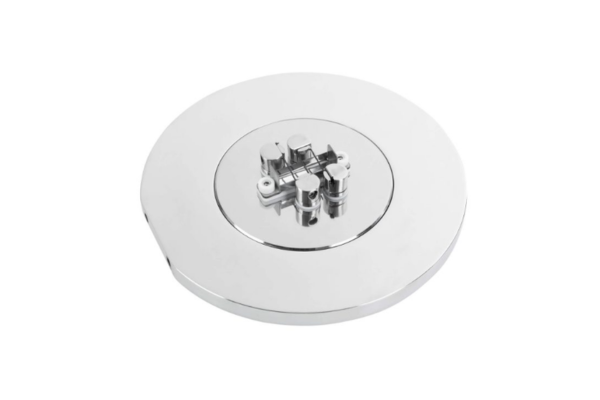

Pulsed Carbon Fibre Evaporation
The DSCT coater is able to perform pulsed carbon fibre evaporation. Short pulses provide more controlled deposition and significantly reduces the amount of debris associated with traditional carbon deposition.

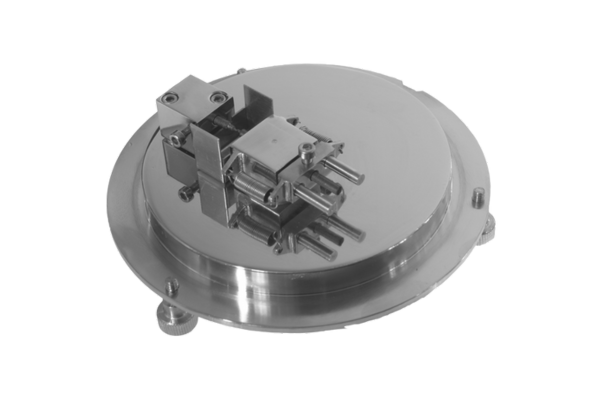

Carbon Rod Evaporation (Optional)
The DSCT could be equipped with carbon rod evaporator head (optional). For this case an external 0-100 A high current power supply should be used instead of the internal high current power supply which is designed for carbon fibre evaporation.

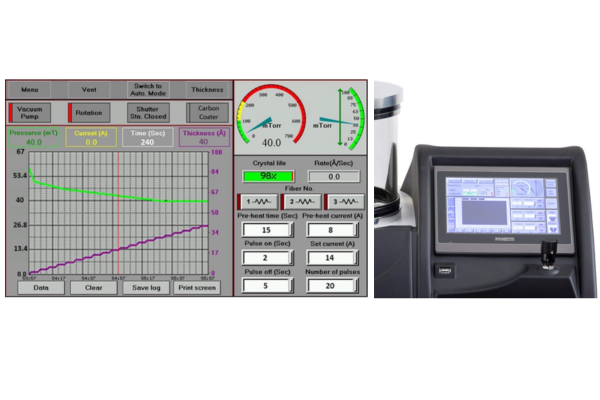

Touch Screen Control
DSCT, the desk SEM coater, is equipped with a 7” coloured touch-screen panel and full automatic control using a user-friendly software to control and adjust the deposition process data. The vacuum and coating sequence information can be observed as digital data or curves on the touch screen. The last 300 coatings information is saved on the history page.

Sample Holder Stages
The DSCT can be equipped with different sample stage configurations depending on the user requirements. The standard sample stage is rotatable with adjustable height and angle and can be changed easily. The rotary planetary sample stage is a good choice for uniform coating of porous specimens (optional).
Specifications
Dimensions | 54 cm H x 50 cm W x 45 cm D |
Ultimate vacuum | Less than 8 x10-6 Torr |
Utilities | 220 V/110 V, 50/60 HZ – 2 kW |
Shipping weight | 46 Kg |
Applications
- Fine grain structural deposition of noble metals for SEM, FE-SEM, EDX, and TEM sample preparation
- Nano and microelectronic
- Conductive layers
- GLAD sputtering
Downloads

DSCT Brochure
Options
- Head and external power supply for carbon rod evaporation
- Quartz crystal sensor
- Planetary sample rotation stage
- Spare cylindrical vacuum glass chamber
- Sputtering targets
- Sealing gaskets
- Plasma cleaner
- Carbon fibre source
