DSCR – Dual Purpose Sputter and Carbon Coater
The Desk SEM Coater model DSCR is a compact coating system. This system is able to sputter noble metals such as gold(Au) palladium(Pd) platinum(Pt) and gold/palladium(Au/Pd) on non-conductive or poorly conductive specimens and can also coat carbon film on the samples.
Manufacturer
Vac Coat
Vac Coat Limited is a designer and manufacturer of high-quality tailor-made Physical Vapour Deposition (PVD) and Vacuum Coating Systems with excellent customer care and after sale services. Equipped with more than 25 years’ experience in the vacuum and Thin Film deposition technologies. Their research and development team supported by academic scientists and qualified engineers are highly active to develop new designs and meet special inquiries received from clients. Designed and manufactured components by Vac Coat's engineering team meets high-quality standards. Their vacuum coating systems have been sold to many universities and research centres through distributors worldwide with very good references and feedback.
Key Features
- Easy to operate
- Intuitive touch screen to control the coating process and rapid data input
- User friendly software to both full-automatic and semi-automatic control
- Easy loading and unloading of specimens
- Repeatable film thickness depositions
- Precise reproducible coatings
- High resolution fine coating (order of 2nm Gold grain)
- Low voltage sputtering
- GLAD sputtering
- Plasma Cleaning
- No cooling system is required for thin layers
- Carbon coating in both flash and pulse modes
- Dual carbon fibre for thicker layer deposition
- Two-year warranty
- CE conformity
Pulsed Carbon Fibre Evaporation
The small chamber, desk vacuum sputter and carbon coater is able to perform pulsed carbon fibre evaporation. Short pulses provide more controlled deposition and significantly reduces the amount of debris associated with traditional carbon deposition.
Touch Screen Control with Colourful Display

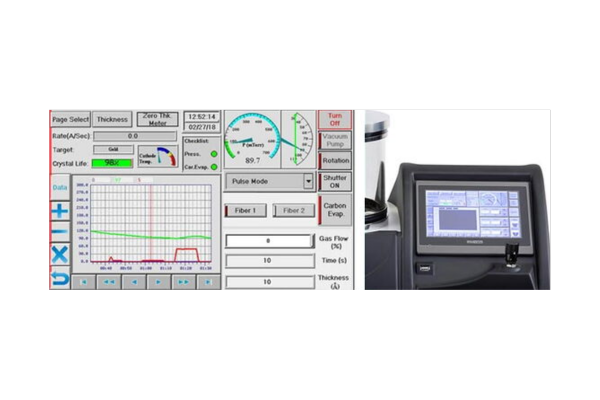

DSCR the Desk SEM Coater is equipped with a 7” coloured touch screen and full automatic control and data input. The vacuum current and deposition information can be observed as digital data or curves on the touch screen. Information of the last 300 coating can also be saved in the history page.
Carbon Coating Head
The device is equipped with an interchangeable head to carbon coating purpose. The ability of loading two carbon fibres with diameter of 0.8 mm, allows coating thicker carbon film if it’s required.
Sample Stages

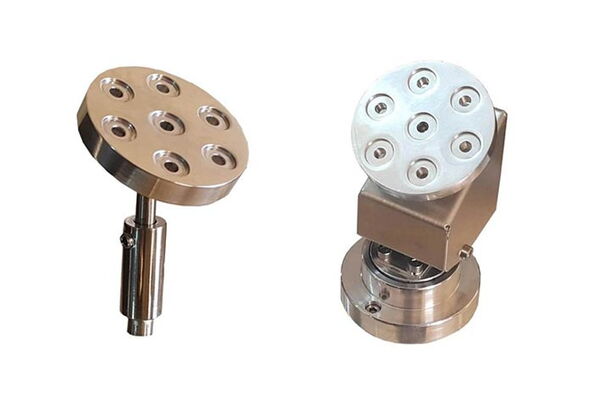

The DSCR can be equipped with different sample stage configurations depending on the user requirements. The sample stages are rotatable with adjustable height and can be changed easily. The rotary planetary sample stage is a good choice for uniform coating of porous specimens.
Specifications
| Pump | Two-stage, direct drive 4m3/h, rotary vane pump |
| Pyrex cylinder chamber | 170 mm OD x 140 mm |
| Dimensions | Dimensions: 45 Cm H x 50 Cm W x 37 Cm D |

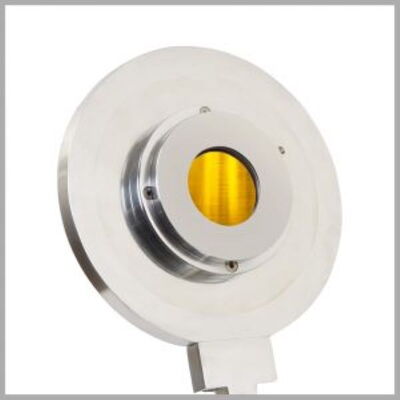

| Cathode | 2 inches magnetron cathode |
| Ultimate Vacuum | Less than 50 millitorr |
| Sample | Planetary sample rotation |
| Vacuum gauge | Thermocouple vacuum gauge |
| Monitor | Quartz crystal thickness monitor with precision of 1nm |
| Shutter | Electrical control shutter |
| Valve | Automatic venting valve |
| Utilities | 220V-240V, 50/60HZ- 10A |
| Ppower supply | 80 Watt DC switching power supply |
| Transfer | Transfer the curves and sputtering process data by USB port to PC |
| Shipping weight | 42 Kg |
