Differentially Pumped Rotary Feedthroughs

Provides 360° of continuous rotary freedom through the vacuum wall of a UHV system

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

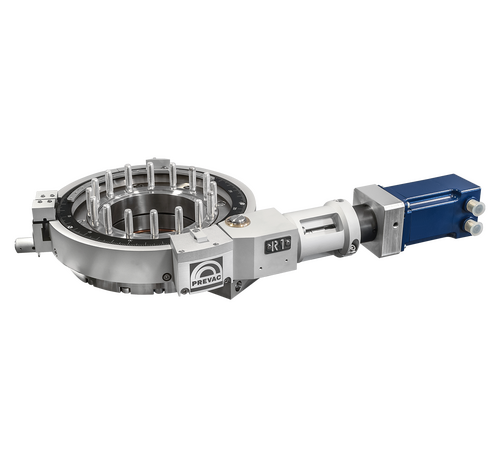

The feedthrough has two stages of differential pumping isolated by graphite-impregnated, expanded viton seals on special sealing surfaces. A pre-loaded ball bearing set accurately controls the rotating stage position. The feedthroughs are equipped with worm drive providing fine angle adjustment. They are available with an anti-backlash stepper motor. Different motors or motor control systems available (stepper motors, servomotors, IcePAP).

Technical data

Base flange DN 40CF, DN 63CF, DN 100CF, DN 160CF
R1 rotation control handwheel / stepper motor (option)
Resolution (manual/motorised/external optical encoder) 1° / 0.1° / 0.05°
Bakeout temperature up to 150 °C
DIAMETER & DISTANCE BETWEEN FLANGES
Base flange ID [mm] distance L [mm]
DN 40CF 41 35.2
DN 63CF 66 48
DN 100CF 103 47
DN160CF 153.1 44

Applications

The differentially pumped rotary feedthrough can be combined with manipulators and any other precision positioning devices.
