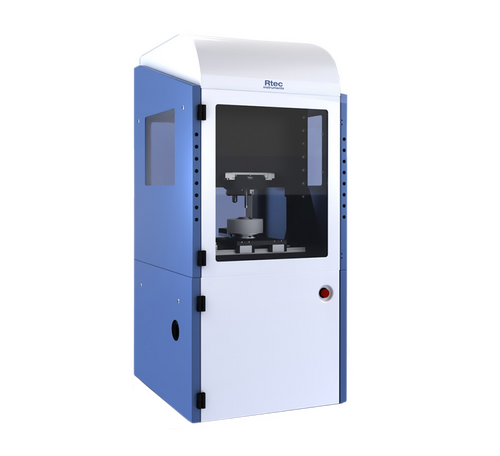

CMP Tester CP-5000

CMP R&D Polisher with Controlled Polishing for Effective Process Development and Polishing Materials Testing. Advance process and product development with our CMP R&D polisher. We optimised product development by providing several polishing processes on one platform. This includes a wide speed range, closed-loop downforce control, versatile wafer holders, and automatic slurry delivery system. Additionally, the CMP tester monitors several in-line signals during the polishing process. Besides polishing wafers & substrates, the tester comes with an in-line surface profilometer. This combination provides information on how the surface, friction, and wear changed, as well as, why imperfections occur.

Manufacturer

Rtec Instruments

Rtec Instruments develops and manufactures advanced mechanical and surface testing and measurement solutions for research and industrial applications. They specialise in combining techniques that provide a unique perspective in material testing. Their testers include tribometer, profilometer, scratch tester, high-temperature indenter, and corrosion testers. Furthermore, their testers provide the most robust and versatile platform in the market for testing friction, wear, adhesion, hardness, roughness, and film thickness from nano to macro-scale.

Key Features

  • Real Time Coefficient of Friction
  • Controlled Down Force and Speed
  • Integrated 3D profilometer
  • Several wafer sizes can be mounted
  • In-line Temperature and Acoustic Emission to study process

Features

Unmatched Load Cell Technology and Speed
During the polishing process high resolution in-line force measurements quantify interfacial interactions. To optimize the process the CP-6 provides full control of down force. This includes speed and flow rates based on customized test protocols.

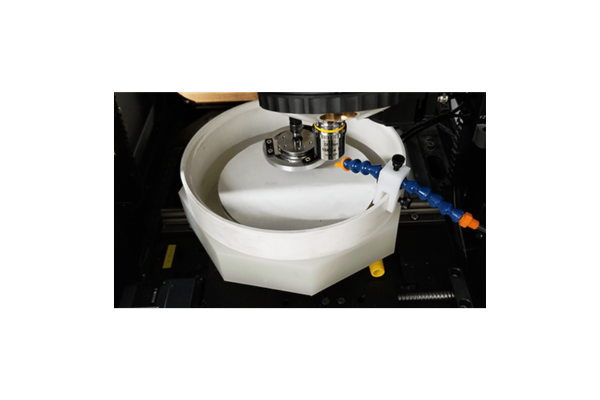

Pad Conditioner
Self-leveling upper pad conditioner holder with both active rotation and horizontal oscillations. Accommodates conditioner from 0.5 “to 4.25”

Reliable and Accurate
Each CMP Tester is versatile with many sensors and temperature options. The motorised XY stage comes with fast exchange providing meaningful data with ease.

In-line Sensors
Torque - High resolution in-line torque sensors provide high accuracy end pointing.
Acoustic - Acoustic signal that allows qualitative end point. As well as aids in debris and defects detection during the polishing process.
Temperature - In-line temperature monitoring of pad and area close to wafer polishing surface. This aids in the study of the removal mechanisms.

Ease Of Use
The CP-5000 comes with Fast Exchangecarriers that allow quick and easy mounting of wafer and pads. The software comes with predefined standard test recipes. The user keeps the ability to easily create new custom recipes.

Patented Integrated In-line 3D Profilometer

Characterise pad surface with nm resolution. The profiler comes with confocal, interferometer, dark field, and bright field modes. The tester provides automatic stitching across large surface areas. Essential for volume wear and roughness calculations.

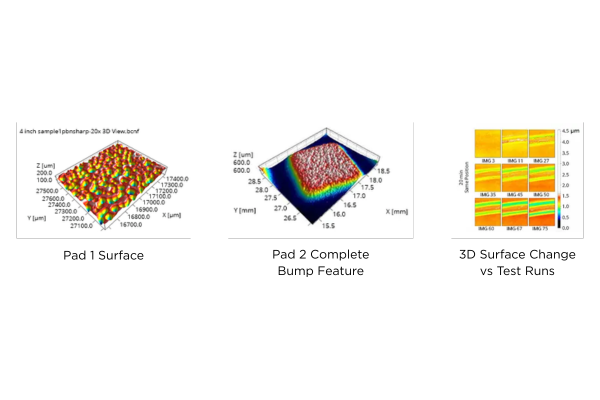

Pad 1 Surface

Pad 2 Complete Bump Feature

3D Surface Change vs Test Runs
