Bakeout Control Unit BCU14

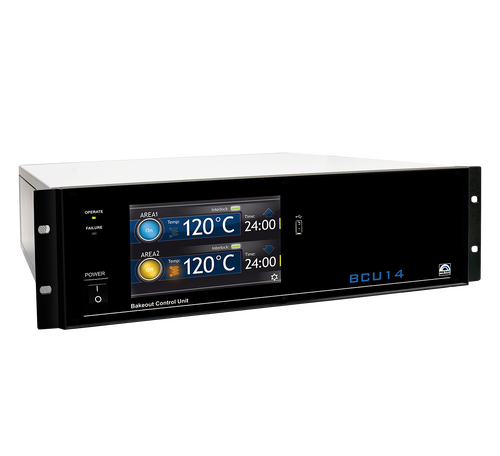

Perfect unit dedicated for heating zones of the vacuum systems as well as heating samples inside the preparation chambers.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • Instruction by video movie integrated on TFT display
  • Configurable user interface
  • Power failure procedures
  • Configurable interlocks
  • Independent fans control system
  • Sensor break protection
  • Additional output signals to control external units
  • Easy firmware upgrade via USB

Description

Heating operation for either one sample and one chamber or for two chambers is factory pre-set and cannot be modified by the user. An additional option allows the customer to independently control other non-regulated heaters such as those used for ion pumps. Unit can be remotely controlled via RS232/485 or Ethernet interfaces. Autosave function for saving your parameters/unit preset and applying them automatically after restart.

The BCU14 Bakeout Control Unit controller can be supplied in a 3HE 19″ enclosure unit with steering power components (one or two units – 2 heat zones per unit) or for 19″ rack mounting with external power components.

Technical data

Supply voltage 230 VAC (L+N+PE, 2L+PE)
(power consumption max 11.5 kW)
3×400 V(3L+N+PE)
(power consumption max 19.55 kW)
Temperature range control room temperature up to 1200°C
Regulation method fully automated based on PID algorithm
Measurement resolution ± 1°C
Interlocks fully isolated, one for each zone + common
Number of control zones 2 independent
Timers 2 independent for each zone
Operation modes timer, manual (timer counter)
Process parameters time, temperature, RAMP
Communication interface RS232/485, Ethernet
User interface 7” TFT display with touchscreen
Interface languages English, German, Polish
Dimensions 448.8 x 132.5 x 435 mm (W x H x D), 19″ rack mountable
Weight (approx.) 10 kg

Applications

The main tasks of the BCU14 are regulation and stabilisation of (i) the power supplied to the heaters in order to achieve a required bakeout temperature in any given zone, and (ii) parallel control of unregulated heaters (on valves, ion pumps, etc.). Target temperature, bake time and ramp times are all user-defined.
