Axis Pro FC

Fully-covered all-in-one micro-sampling equipment. The Axis Pro FC is the ultimate electric system with total control and enhanced performance.

Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Key Features

  • Consistently sample ≥5μm objects with precision and ease
  • Efficient particle removal in cleanroom environments made possible

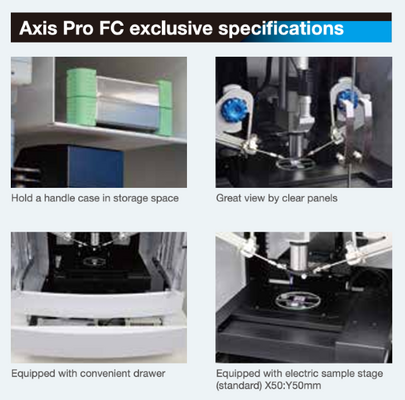

  • Fully covered and enhanced safety, operability, and precision
  • Once the sample is placed, execute the desired operation with a PC mouse
  • Standard-equipped: Motorised second stage for seamless sample transfer
  • Program-controlled error-free sample transfer
  • Built-in storage space for keeping accessories
  • Simplified setup with the use of angle-fixed arms

Description

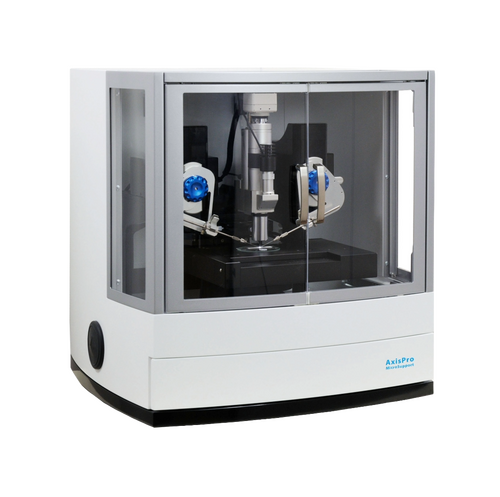

The Axis Pro FC is a fully-covered all-in-one micro-sampling system. Operated via a PC mouse, the microscope-integrated electric micromanipulator system empowers seamless picking up and delivery of microscopic samples. It is used for various applications, including FT-IR microscopy of foreign substances, collection of FIB-processed TEM thin samples, and precise marking.

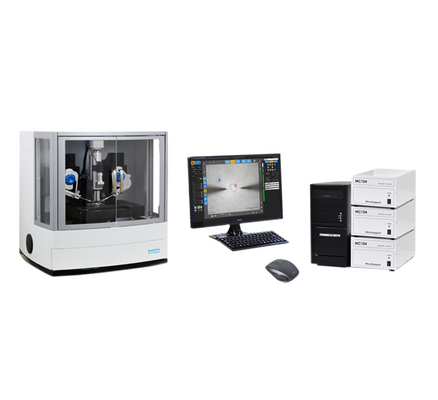

Axis Pro FC set inclusion

  • Axis Pro FC main unit (configuration varies depending on specifications)
  • LED (reflective/transmissive) illumination device, Gigabit Ethernet (GigE) Camera
  • Dedicated PC (Windows 10 IoT Enterprise / Embedded 64bit)
  • 21.5″ LCD display (Full HD panel)
  • Dedicated MC-104 stage regulator

Axis Pro applicable Main Analytical Method

  • TEM – Transmission Electron Microscopy
  • SEM – Scanning Electron Microscope
  • FIB – Focused Ion Beam
  • SPM – Scanning Probe Microscope
  • ToF-SIMS – Time-of-Flight Secondary Ion Mass Spectrometry
  • FTIR- Fourier-transform infrared spectroscopy
  • uFTIR – Micro Fourier Transform Interferometer
  • Raman spectroscopy
  • uRaman – Raman Laser Spectrometer
  • XRD – X-Ray Diffraction
  • WDXRF –Wavelength Dispersive type X-Ray Fluorescence analysis
  • EDXRF – Energy Dispersive type X-Ray Fluorescence analysis
  • GC/MS – Gas Chromatography – Mass Spectrometry
  • LC/MS – Liquid Chromatography – Mass Spectrometry
  • EPMA – Electron Probe Micro Analyser
  • NMR – Nuclear Magnetic Resonance

Downloads

Brochures

Microsupport Product Catalogue

View Brochure

Options

High-precision Electric Rotator

FIB lift-out

Electric Microtweezers

Grasping/picking up & releasing objects of ~30μm

Rotational Electric Stage

Optimizing the sample orientation

Bi-axis Rotational Electric Stage

Coordinate orientation control of the sample and transfer location

Rotational Mechanical Stage

Ideal for fine adjustments during cutting and milling

Mechanical Bi-axis Sample Holder

Ideal for adjusting the sample parallelism

Darkfield illumination

For discerning fine scratches and foreign substances

Tilted Illumination Adapter

Improves contrast, e.g. for undulating substances
