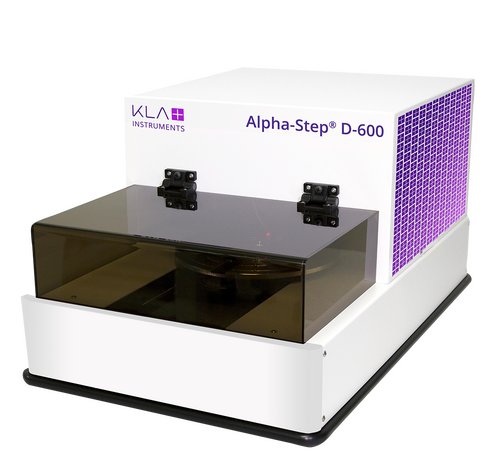

Alpha-Step® D-600 Stylus Profiler
Capable of measuring 2D and 3D step heights from a few nanometers to 1200µm, the D-600 profilometer also supports 2D and 3D stylus measurements of roughness, plus 2D bow and stress for R&D and production environments. The D-600 stylus profiler includes a motorised stage with a 200mm sample chuck and advanced optics with enhanced video controls.
Manufacturer
KLA
A global technology leader who make an impact by creating solutions that drive progress and transform industries. Collaboration is the key to their success. KLA provide leading-edge technology and devices using advanced inspection tools, metrology systems, and computational analytics. Their solutions accelerate tomorrow’s electronic devices. They enable evolution and innovation in the data era across key industries including automotive, mobile and data centre.
Key Features
- Step Height: Nanometres to 1200µm
- Low Force: 0.03mg to 15mg
- Video: 5MP high-resolution colour camera
- Keystone Correction: Removes distortion due to side view optics
- Arc Correction: Removes error due to arc motion of the stylus
- Compact Size: Small system footprint
- User friendly software interface
Flexible & Accurate Surface Measurement
The Alpha-Step® D-600 Stylus Profiler provides unparalleled flexibility and accuracy in surface measurement. 2D & 3D measurement of step height and roughness are supported, as well as 2D bow and stress. By utilising state of the art optical lever sensor technology, KLA are able to provide a wide vertical range, and low force measurement with improved stylus force control. The optical lever technology also provides improved repeatability over conventional force coil systems. KLA’s cutting-edge hardware is further strengthened with powerful software algorithms, providing arc correction as standard to eliminate sidewall effect.
Stylus profilometry is suitable for measuring a wide variety of materials, independent of material properties such as transparency. With the Alpha-Step®’s low force operation, delicate surfaces can be measured accurately and easily.
Enhanced High-Resolution Optics
To make operation as simple as possible, the Alpha-Step® D-600 includes a high resolution colour camera system, with 4X digital zoom and expanded lighting controls. KLA’s vision system includes keystone correction algorithms to automatically correct perspective distortions usually induced by side view optics. This combination of hardware and software innovations makes navigating samples and locating measurement targets faster and easier.
Shown left: Video from side view optics
Shown right: Video with keystone correction
2D & 3D Surface Measurement
With the Alpha-Step® D-600’s motorised sample stage, which features a 55mm scan length, it is possible to produce photo-realistic 3D renderings of surfaces. Details surface topography analysis in 3D is possible for step height, texture, and sample form. The 5mm scan length of the Alpha-Step® D-600 also allows for longer scans, and more efficient measurement of larger samples.
A 2D stress measurement options is also available, which utilises Stanley’s Equation and changes in sample bow before and after processing, to calculate thin film stress. Applications of 2D stress include semiconductor and compound semiconductor devices with multiple process layers.
Industries
- Universities, research labs and institutes
- Semiconductor and compound semiconductor
- LED: Light emitting diodes
- Solar
- MEMS: Micro-electro-mechanical systems
- Automotive
- Medical devices
And more: Contact us with your requirements
Applications
Step Height: 2D and 3D step height
The Alpha-Step D-600 stylus profiler is capable of measuring 2D and 3D step heights from nanometres to 1200µm. This enables quantification of material deposited or removed from processes such as etch, sputter, SIMS, deposition, spin coatings, CMP and other processes. The Alpha-Step series has low force capability that enables measurement of soft materials, such as photoresist.

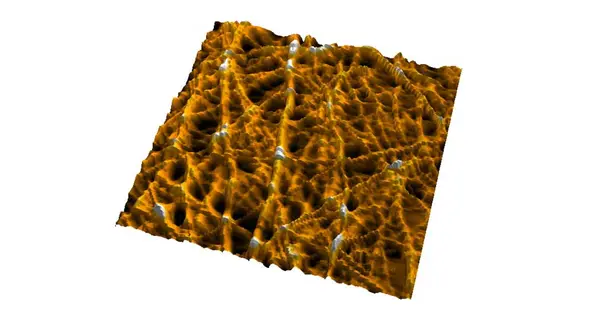

Texture: 2D and 3D roughness and waviness
The Alpha-Step D-600 measures 2D and 3D texture, quantifying the sample’s roughness and waviness. Software filters separate the measurement into the roughness and waviness components and calculate parameters such as root mean square (RMS) roughness.
Form: 2D bow and shape
The Alpha-Step D-600 can measure the 2D shape or bow of a surface. This includes measurement of wafer bow that can result from mismatch between layers during the device fabrication, such as the deposition of multiple layers for the production of semiconductor or compound semiconductor devices. The D-600 can also quantify the height and radius of curvature of structures, such as a lens.
Stress: 2D thin film stress
The Alpha-Step D-600 is capable of measuring stress induced during the manufacture of devices with multiple process layers, such as semiconductor or compound semiconductor devices. The bow of the sample is accurately measured using a stress chuck to support the sample in a neutral position. The change in shape from a process such as film deposition is then used to calculate the stress by applying Stoney’s equation.
Downloads
Alpha-Step® D-600 Stylus Profiler Brochure 2023
Alpha-Step® D-600 Stylus Profiler Specification Sheet
Benchtop Stylus Profilers Brochure
Precision Depth Measurement of Shallow SIMS Craters using a KLA Instruments™ Stylus Profilometer
General Information about Stylus-based Surface Profilers from KLA Instruments™
Multi-Step Analysis Function: Powerful Analytics from KLA Instruments™ Surface Profilers
Topography Sensor Technology for Stylus Profilers
Stylus Product Line
Apex Software
Options
Stylus Options
The Alpha-Step D-600 has a variety of styli available to support the measurement of step heights, high aspect ratio steps, roughness, sample bow, and stress. The stylus tip radius ranges from 100nm to 50µm and determines the lateral resolution of the measurement. The included angle ranges from 20 to 100 degrees, which specifies the maximum aspect ratio of the measured feature. All styli are manufactured from diamond to reduce stylus wear and increase stylus lifetime.
Sample Chucks
The Alpha-Step D-600 has a range of chucks available to support application requirements. The standard chuck is a nickel-plated aluminium vacuum chuck for samples up to 200mm. A universal vacuum chuck is also offered and includes precision locating pins for samples from 50mm to 200mm. Both options support stress measurements with 3-point locators to hold the sample in a neutral position for accurate bow measurements.
Isolation Tables
The Alpha-Step D-600 has both tabletop and free-standing isolation table options. The Granite Isolator™ Series offers tabletop isolation systems that combine granite with high grade silicon gel to provide passive isolation. The Onyx Series tabletop isolation systems use pneumatic air isolators to provide passive isolation. The TMC 63-500 Series isolation table is a free-standing steel frame table that uses pneumatic air isolators to provide passive isolation.
Step Height Standards
The Alpha-Step D-600 uses thin and thick film NIST traceable step height standards offered by VLSI Standards. The standards feature an oxide step on a silicon die mounted on a quartz block. A step height range of 8nm to 250µm is available.

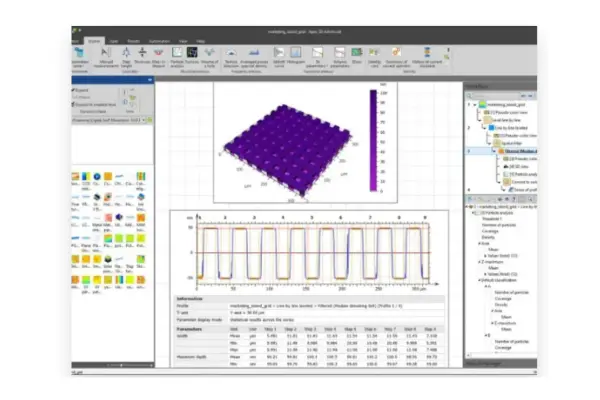

Apex Analysis Software
Apex analysis software enhances the standard data analysis capability of the D-600 with an extended suite of levelling, filtering, step height, roughness, and surface topography analysis techniques. Apex supports ISO roughness calculation methods, plus local standards such as ASME. Apex can also serve as a report writing platform with the capability to add text, annotations, and pass/fail criteria. Apex is offered in eleven languages.
Offline Analysis Software
The Alpha-Step D-600 offline software has the same data analysis capability that exists on the tool. This enables the user to analyse data without using valuable tool time.
ProfilmOnline Web Application
Filmetrics ProfilmOnline is a cloud-based 3D data visualisation and analysis platform developed as part of the Profilm software suite. ProfilmOnline is the place to share, store, view and analyse 3D data, whether you’re on your computer or a mobile device. Apps for Android and iOS operating systems are available and a wide variety of file formats are supported. Data can be encrypted for security.
